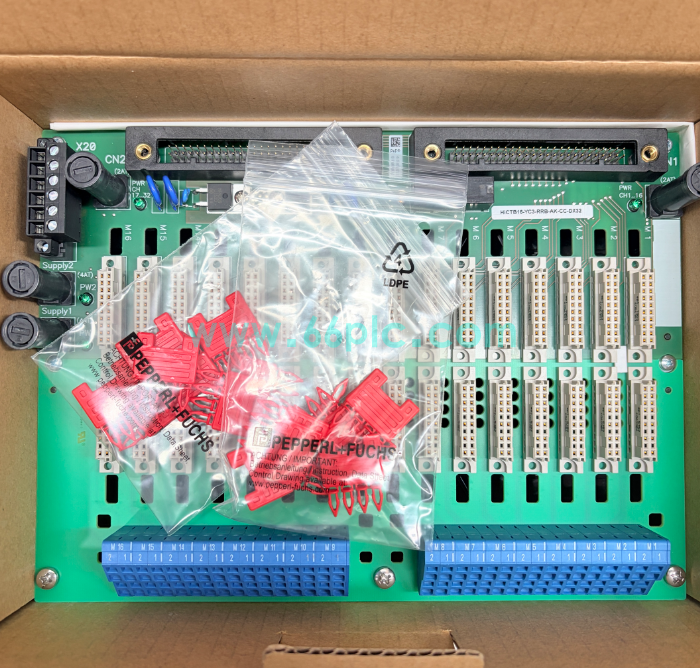

Pepperl+Fuchs HiCTB16-YC3-RRB-AK-CC-DX32 H-System Termination Board

The Pepperl+Fuchs HiCTB16-YC3-RRB-AK-CC-DX32 is an H-System termination board specially designed for Yokogawa CENTUM VP DCS systems. It matches the 32-channel ADV151 digital input card and supports up to 16 isolated barrier modules to realize intrinsic safety signal isolation between hazardous field areas and safe control rooms.

This termination board adopts 24 VDC power supply, built-in reverse polarity protection and 4A fusing. It uses spring terminals for field wiring and a 50-pin system connector for DCS connection, widely stocked as spare parts for petrochemical and chemical explosion-proof control cabinet maintenance and renovation.

Main Specifications

• Brand: Pepperl+Fuchs; Model: HiCTB16-YC3-RRB-AK-CC-DX32; Type: H-System Termination Board
• Applicable System: Yokogawa CENTUM VP DCS, matched with ADV151 32-channel DI card
• Core Tasks: Signal termination, intrinsic safety isolation, power distribution, field and system signal transmission
• Signal Interface: 50-pin Yokogawa system connector, blue spring terminals for hazardous area
• Installation: DIN rail mounting inside explosion-proof control cabinet
• Power Supply: 24 VDC, reverse polarity protection, 4A fusing for 16 modules
• Recommended Barrier Modules: HiC2822, HiC2842 digital input isolated barriers
• Certifications: CE, complies with IEC intrinsic safety and explosion-proof standards

Core Functions

• Provide installation base and signal wiring interface for up to 16 H-System isolated barriers to connect field digital input signals.
• Realize electrical isolation between hazardous explosive areas and safe DCS control rooms to meet intrinsic safety explosion-proof requirements.
• Distribute 24 VDC power for barrier modules, with fuse protection and reverse connection prevention to avoid circuit damage.
• Transmit field discrete signals to Yokogawa ADV151 DI card via 50-pin system connector for DCS logic processing.
• Support hot replacement of barrier modules without rewiring field cables, reducing system downtime during maintenance.
• Modular termination design standardizes cabinet wiring, shortens project commissioning cycle and facilitates later troubleshooting.

Application Scenarios

• Spare-part replacement for Yokogawa CENTUM VP DCS explosion-proof cabinets in petrochemical, chemical and oil & gas industrial sites.
• Intrinsic safety termination hardware for digital input signal isolation in hazardous area control loops.
• Maintenance backup inventory for renovation and after-sales maintenance projects of Pepperl+Fuchs H-System barrier assemblies.
• Matching termination board cooperating with Yokogawa DI cards, isolated barriers and DCS system cables.
• Retrofit replacement for aged termination boards with poor contact, power circuit failure and wiring terminal damage faults.

• Global aftermarket spare supply for automation maintenance teams maintaining explosion-proof DCS control equipment worldwide.
