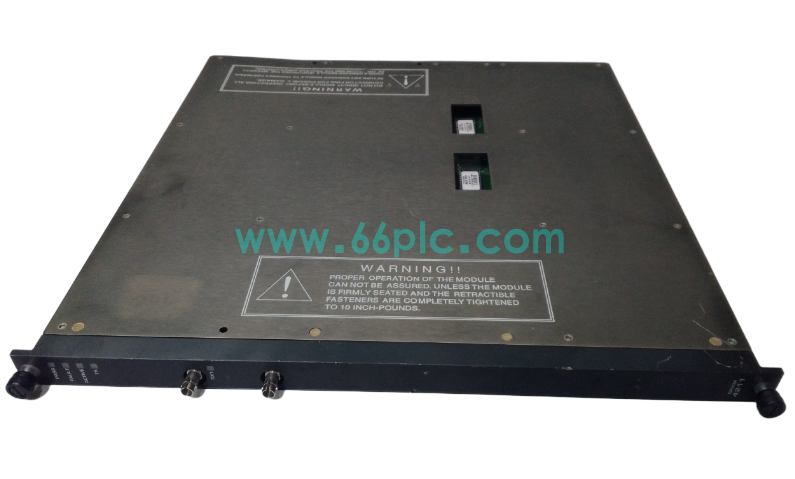

Triconex 4211 Secondary Remote Extender Module

The Triconex 4211 is a secondary remote extender module (SRXM) for Triconex TMR safety‑instrumented systems. Working in pair with primary 4210 module, it receives fiber‑optic I/O‑bus signals and drives local remote I/O racks, enabling distributed safety I/O installation up to 12 km away from main SIS chassis.

This rack‑mount TMR‑compliant unit adopts ST‑type single‑mode fiber interfaces and supports hot‑swap replacement. It implements ground‑loop isolation and continuous fiber‑link diagnostics, built for stable operation within petrochemical, refinery and offshore safety control cabinets.

Main Specifications

• Brand: Triconex (Schneider Electric); Model: 4211; Type: Secondary Remote Extender Module (SRXM)
• Applicable System: Triconex TMR SIS Safety Instrumented System, matched with primary 4210 RXM
• Core Tasks: Remote I/O‑bus recovery, fiber‑optic redundant communication, ground‑loop isolation, link health monitoring
• Signal Interface: ST‑style single‑mode fiber ports, Tricon remote‑rack backplane bus interface
• Installation: Standard Triconex rack plug‑in module, hot‑swap supported
• Max Transmission Distance: 12 km via single‑mode fiber; Communication rate: 375 Kbit/s
• Operating Environment: ‑40℃ ~ +70℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Diagnostic: On‑board LED indicators for PASS, FAIL, ACTIVE, TX and RX channel fault status
• Certifications: CE, complies with IEC61508 SIL‑3 functional safety and process‑industry EMC standards

Core Functions

• Receive optical I/O‑bus signals transmitted from primary 4210 module and restore electrical bus for local remote I/O racks.
• Adopt triple‑modular‑redundant architecture to eliminate single‑point‑failure risk for safety‑related remote communication links.
• Provide ground‑loop isolation to suppress common‑mode interference caused by potential difference between main site and remote site.
• Continuously monitor fiber‑optic link quality and report link breakage or degradation status to SIS host system.
• Support hot‑swap online replacement without shutting down the whole safety instrumented system.
• Industrial‑grade hardware design adapts to long‑term continuous operation in hazardous refinery and offshore sites.

Application Scenarios

• Spare‑part replacement for Triconex SIS safety cabinets in refineries, petrochemical plants and offshore platforms.
• Remote‑side communication component for distributed ESD emergency shutdown and burner management safety instrumented systems.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy Triconex SIS equipment.
• Matching secondary extender module cooperating with 4210 primary RXM, remote I/O racks and system HMI operation panel.
• Retrofit replacement for old SRXM modules with fiber‑link communication failure and hardware damage faults.

• Global aftermarket spare supply for automation maintenance teams maintaining Triconex safety equipment worldwide.
