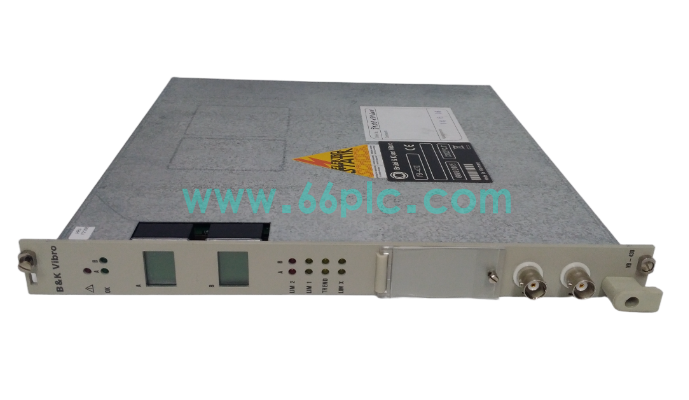

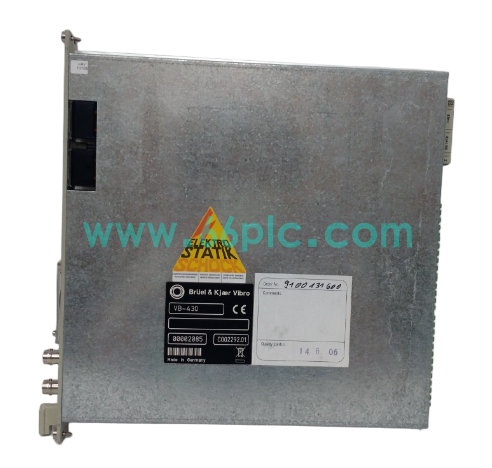

B&K VB‑430 C002292.01 / 9100131600 Vibration Monitoring Module

The B&K VB‑430 (C002292.01, 9100131600) is a rack‑mount vibration monitoring module used for rotating machinery protection systems. It accepts input signals from proximity probes and velocity sensors, performs real‑time vibration amplitude measurement, alarm comparison and condition monitoring for turbines, compressors and large rotating equipment.

This plug‑in monitoring unit provides configurable alarm and trip threshold outputs for machinery protection logic. It supports local status indication and data communication to upper monitoring host, designed for long‑term reliable operation inside power plant and petrochemical machinery protection cabinets.

Main Specifications

• Brand: Machinery Protection System; Model: VB‑430; Part No: C002292.01, 9100131600; Type: Vibration Monitoring Module
• Applicable System: Rotating machinery condition & protection monitoring system
• Core Tasks: Vibration sensor signal acquisition, amplitude calculation, alarm / trip threshold comparison, status output
• Signal Interface: Proximity / velocity sensor input, relay alarm output, internal system backplane bus interface
• Installation: Standard rack‑mount plug‑in module for monitoring system chassis
• Power Supply: System rack auxiliary DC power supply
• Operating Environment: 0℃ ~ +60℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Diagnostic: On‑board LED indicators for module running, sensor fault, alarm and trip status
• Certifications: CE, complies with rotating‑machinery monitoring EMC and safety standards

Core Functions

• Receive analog signals from proximity probes and velocity vibration sensors installed on rotating machinery shafts and housings.
• Calculate real‑time vibration amplitude values, compare measured values against user‑configured alarm and trip thresholds.
• Output dry‑contact relay signals for interlock logic when vibration exceeds pre‑set warning or dangerous limits.
• Detect sensor breakage and hardware failures, report fault status to upper‑level monitoring system via backplane bus.
• Support parameter configuration, threshold setting and fault diagnosis through system configuration software.
• Industrial‑grade plug‑in hardware design adapts to continuous operation in heavy‑duty power and petrochemical plant sites.

Application Scenarios

• Spare‑part replacement for machinery protection cabinets in thermal power plants, petrochemical plants and heavy‑industry facilities.
• Vibration monitoring component for steam turbines, centrifugal compressors, blowers and large pump protection systems.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy rotating‑machinery monitoring equipment.
• Matching monitoring module cooperating with sensor preamplifier, power supply unit and system HMI operation panel.
• Retrofit replacement for old modules with signal sampling abnormality and hardware damage faults.

• Global aftermarket spare supply for automation maintenance teams maintaining rotating‑machinery protection equipment worldwide.
