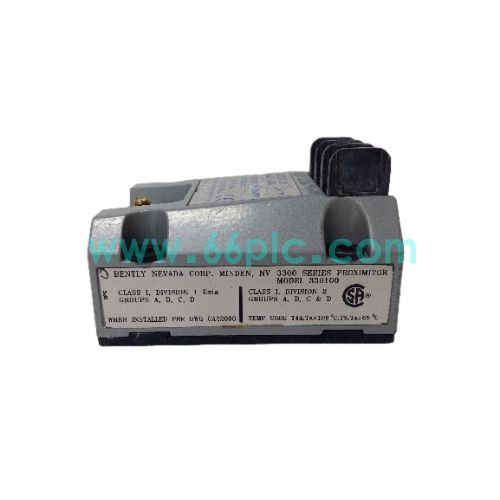

Bently Nevada 330100‑90‑01 Eddy Current Proximity Transducer System

The Bently Nevada 330100‑90‑01 belongs to the 3300 eddy‑current proximity transducer series. It performs non‑contact measurement of shaft radial vibration, clearance and axial position for rotating machinery, and outputs linear DC voltage signals for online condition monitoring and machinery protection.

The full assembly consists of probe, extension cable and proximitor. It features stable linearity and good anti‑interference performance and is compatible with the 3500 monitoring rack. Original production has been discontinued. It is widely used as aftermarket spare parts for power, oil and petrochemical plant equipment monitoring system maintenance.

Main Specifications

1. Brand: Bently Nevada; Model:330100‑90‑01; Type:Eddy‑Current Proximity Transducer Assembly
2. System Composition:Probe, matched extension cable and proximitor signal converter
3. Measurement Principle:Eddy‑current effect, non‑contact displacement and vibration detection
4. Output:Linear negative DC voltage, designed for Bently 3500 monitoring modules
5. Product Advantages:High measurement resolution, matched cable impedance, strong anti‑interference capability
6. Applicable Sites:Steam turbines, compressors, large pumps and other critical rotating equipment
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Realize non‑contact online monitoring of radial vibration and shaft gap of rotating machinery.
2. Convert tiny mechanical displacement variations into continuous linear voltage signals for collection by monitoring rack.
3. Capture early mechanical faults such as rotor unbalance, shaft rubbing and bearing abnormal clearance.
4. Adopt impedance‑matched cables to reduce signal attenuation and interference during long‑distance transmission.
5. Work with 3500 series monitoring racks to realize machinery alarm and interlock protection functions.
6. Provide continuous vibration trend data for predictive maintenance and equipment health analysis.

Application Scenarios

1. Vibration and position monitoring for steam turbines, centrifugal compressors and large‑size process pumps.
2. Spare transducer replacement and routine maintenance of existing Bently 3300 & 3500 monitoring systems.
3. Technical renovation and reliability improvement of aging rotating machinery protection cabinets.
4. On‑site troubleshooting and replacement of faulty proximity transducer sets on key production units.
5. Spare‑parts stocking for system integrators and machinery condition monitoring service contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete Bently Nevada vibration monitoring hardware.

FAQ

1. Q:What is the difference between 330100‑90‑01 and 330100‑90‑00?
   A:The suffix code represents different cable length and hardware configuration of the complete transducer assembly.
2. Q:Can individual components be used separately?
   A>No, the probe, cable and proximitor are matched as a whole set and cannot be mixed randomly.

3. Q:Is this proximity transducer still in original production?
   A:Bently Nevada has stopped manufacturing this model, only tested surplus and refurbished spare units are available.
