Product Description

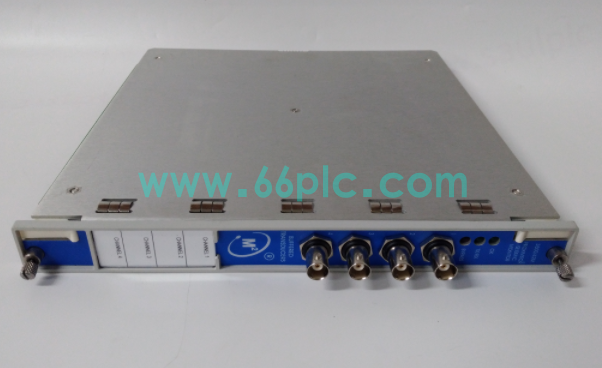

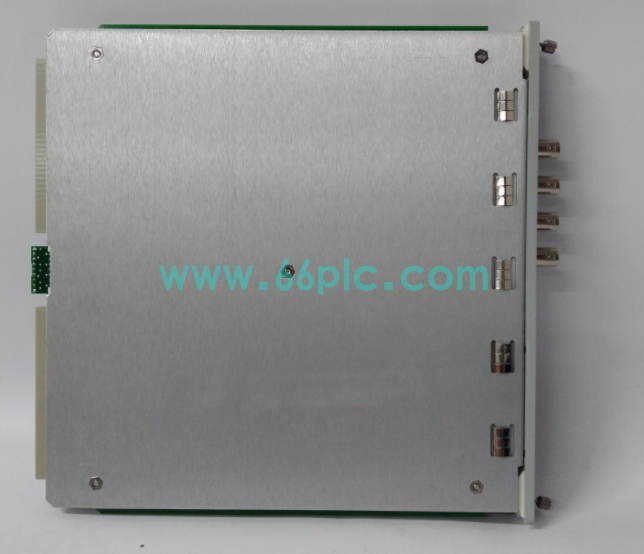

The Bently Nevada 3500/42M is a high-precision four-channel Proximitor and seismic monitoring module for the 3500 series machinery protection systems. It receives and conditions signals from proximity probes and seismic transducers, accurately measuring shaft vibration, thrust position and differential expansion of rotating equipment to realize real-time condition monitoring.

Supporting independent channel programming and customizable alarm thresholds, the module integrates professional signal filtering and noise reduction technology. It delivers stable and high-accuracy data acquisition in complex industrial electromagnetic environments. Featuring hot-swap compatibility and rugged industrial design, it ensures long-term reliable online monitoring and fault protection for critical industrial rotating machinery.

Main Specifications

1. Full Model: 3500/42M; Product Type: 4-channel Proximitor seismic vibration and position monitoring module
2. Applicable System: Bently Nevada 3500 series machinery condition monitoring and safety protection systems
3. Core Function: Proximity and seismic signal conditioning, multi-parameter measurement and alarm logic output
4. Channel Configuration: Four fully independent programmable channels for multi-point equipment status monitoring
5. Compatible Sensors: Matches proximity probes, seismic velocity sensors and industrial vibration transducers
6. Monitoring Parameters: Radial vibration, axial thrust position, differential expansion and shaft motion status
7. Configuration Mode: Supports professional upper computer software for threshold and logic customization
8. Signal Performance: Built-in high-precision filtering circuit to eliminate field noise and signal distortion
9. Installation Feature: Hot-swappable modular design for non-stop maintenance and replacement
10. Reliability: Industrial-grade rugged structure, adapting to 24/7 uninterrupted operation in harsh environments

Core Functions

1. Acts as the core multi-parameter monitoring unit for 3500 machinery protection system racks.
2. Conditions and optimizes original sensor signals to ensure high-precision data collection.
3. Realizes real-time monitoring of key operating parameters such as vibration and shaft position.
4. Compares real-time data with preset thresholds to trigger alarm and protection logic signals.
5. Supports flexible channel configuration to meet diverse rotating machinery monitoring demands.
6. Provides accurate data support for equipment fault early warning and predictive maintenance.

Application Scenarios

1. Power plant steam turbine, gas turbine and generator set vibration monitoring systems
2. Petrochemical large compressors, industrial fans and pump unit condition monitoring platforms
3. Industrial key rotating machinery shaft deviation and abnormal vibration early warning scenarios
4. On-line monitoring and safety protection systems for high-value industrial mechanical equipment
5. Aging monitoring module replacement and monitoring precision upgrading for 3500 series racks
