Product Description

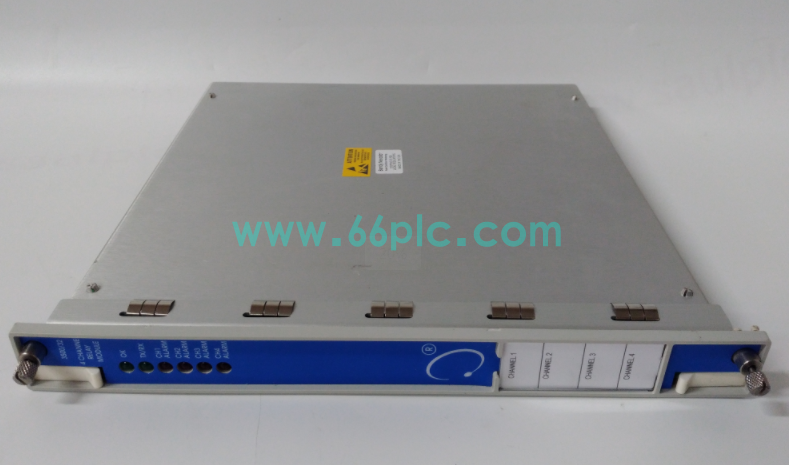

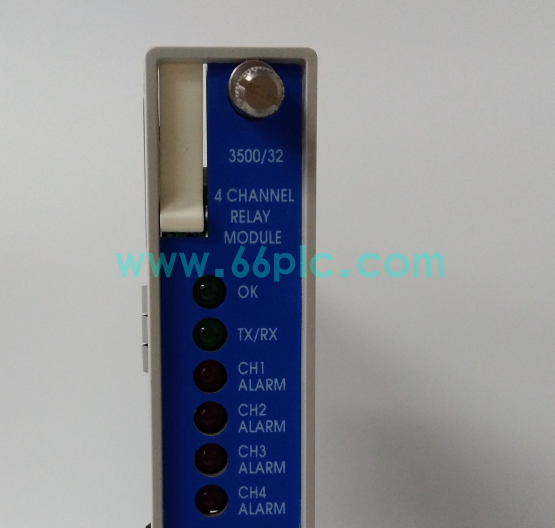

The Bently Nevada 3500/32 is a high-reliability 4-channel relay output module designed exclusively for the 3500 series machinery monitoring systems. It converts internal system alarm logic, fault status and monitoring threshold signals into physical relay switch outputs, acting as the core execution linkage unit for mechanical safety protection and interlock control.

Equipped with independent programmable channels and high-performance gold-plated contacts, the module supports flexible AND/OR voting alarm logic configuration. Featuring excellent anti-interference capability and stable switching performance, it adapts to complex industrial environments. With hot-swap design and industrial rugged structure, it ensures long-term stable safety interlock and alarm output for critical rotating machinery systems.

Main Specifications

1. Full Model: 3500/32; Product Type: Industrial 4-channel programmable relay alarm output module
2. Applicable System: Bently Nevada 3500 series machinery condition monitoring and safety protection systems
3. Core Function: Alarm logic conversion, relay signal output, equipment interlock and safety trip control
4. Channel Configuration: Four fully independent programmable relay channels for multi-point alarm output expansion
5. Logic Mode: Supports customizable AND, OR voting logic and multi-channel combined alarm strategies
6. Contact Performance: High-quality gold-plated contacts with anti-oxidation and durable switching performance
7. Signal Adaptation: Matches all monitoring module alarm signals of the 3500 system rack
8. Control Capacity: Standard industrial load capacity, suitable for on-site alarm and trip execution equipment
9. Installation Feature: Hot-swappable modular design for non-stop maintenance and module replacement
10. Reliability: Industrial-grade rugged design, supporting 24/7 uninterrupted safety linkage operation

Core Functions

1. Serves as the core relay output and safety execution unit for 3500 monitoring system racks.
2. Converts equipment vibration, temperature and abnormal status alarms into switch control signals.
3. Supports flexible logic programming to meet diverse industrial safety interlock requirements.
4. Drives on-site alarm lamps, solenoid valves and safety trip protection devices.
5. Realizes multi-channel combined judgment to improve equipment fault protection accuracy and reliability.
6. Provides rapid and stable safety response for abnormal faults of key rotating machinery.

Application Scenarios

1. Power plant turbine, generator set safety alarm and interlock protection control systems
2. Petrochemical large compressors, fans and pump unit monitoring and trip linkage platforms
3. Industrial key rotating machinery abnormal fault alarm and automatic safety protection scenarios
4. Harsh industrial environment high-stability signal output and safety control systems
5. Aging relay module replacement and system safety linkage performance upgrading for 3500 racks
