Product Description

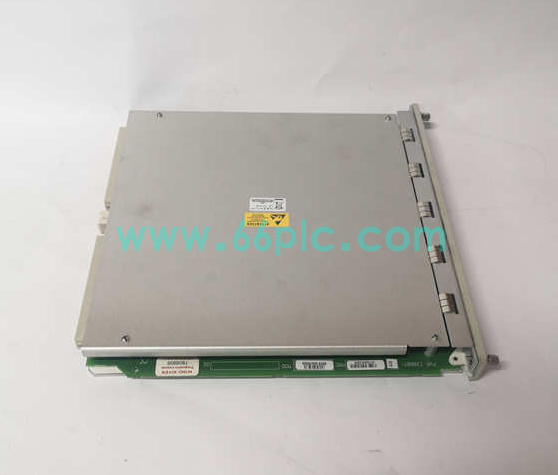

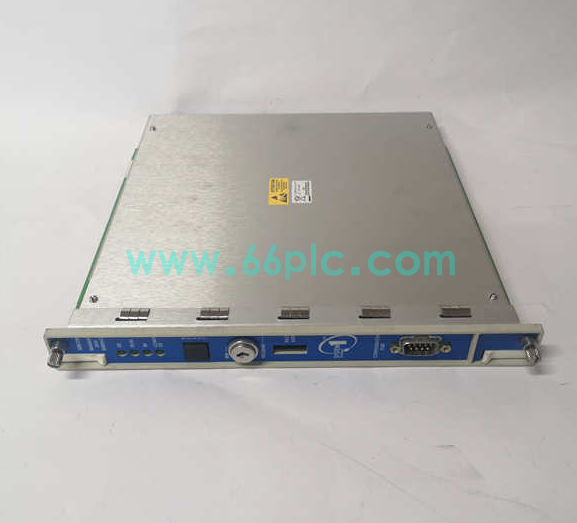

The Bently Nevada 138607-01 is a high-performance Transient Data Interface (TDI) core board for the 3500/22M module, designed exclusively for the 3500 series machinery protection and condition monitoring systems. It integrates rack interface and high-speed data processing functions, serving as the critical communication gateway between the 3500 monitoring rack and upper-level System 1 diagnostic software and configuration platforms. The module is dedicated to synchronous acquisition, sorting and transmission of steady-state operating data and high-frequency transient vibration waveforms of rotating equipment, providing complete data support for mechanical fault diagnosis, trend analysis and predictive maintenance.

This industrial-grade high-precision interface module features ultra-high 256 kHz sampling rate and 24-channel synchronous data acquisition capability, ensuring lossless recording of short-term fault transient signals and dynamic operating waveforms. It supports Ethernet high-speed data transmission and dual-mode rack operation switching, including RUN mode for stable monitoring and PROGRAM mode for remote online configuration and parameter modification. Built-in comprehensive hardware self-diagnosis and link status monitoring functions automatically identify communication anomalies and circuit faults. Adopting standard 3500 rack hot-swap plug-in design, with ultra-wide temperature resistance and enhanced industrial EMC shielding performance, it adapts to harsh outdoor and cabinet industrial environments, supporting 24/7 long-term uninterrupted high-reliability data transmission operation.

Main Specifications

1. Full Part Number: 138607-01; Product Type: 3500/22M series high-speed transient data interface core module
2. Applicable System: Bently Nevada 3500 machinery protection system, rotating equipment condition monitoring platform
3. Core Function: High-frequency transient waveform acquisition, steady-state data transmission, rack mode switching, system configuration docking and fault diagnosis
4. Sampling Performance: 256 kHz ultra-high sampling rate, supporting full-spectrum dynamic signal capture
5. Acquisition Channels: 24 synchronous data acquisition channels for multi-parameter equipment status monitoring
6. Transmission Mode: Standard Ethernet high-speed interface for stable and efficient data uploading
7. Operation Modes: Support RUN real-time monitoring mode and PROGRAM online configuration mode
8. Software Compatibility: Fully matched with System 1 diagnostic software and 3500 system configuration tools
9. Diagnosis Mechanism: Built-in communication link self-inspection, data quality monitoring and fault alarm function
10. Temperature Adaptation: Ultra-wide industrial temperature range adapting to complex field working conditions
11. Maintenance Design: Support hot-swap pluggable installation for non-stop online replacement and debugging
12. Operational Reliability: Compliant with API670 industrial standards, low failure rate for long-term equipment monitoring tasks

Core Functions

1. Act as the high-speed transient data transmission and system docking core for 3500 system racks.
2. Synchronously collect full-spectrum vibration waveforms and steady-state operating data of rotating machinery.
3. Realize lossless transmission of field monitoring data to System 1 upper diagnostic platform.
4. Support flexible switching of rack operating modes to meet monitoring and configuration requirements.
5. Enable remote online parameter modification, program debugging and system configuration management.
6. Monitor real-time communication link status and automatically report abnormal connection faults.
7. Provide complete data foundation for equipment fault analysis, trend tracing and predictive maintenance.
8. Guarantee real-time, accurate and continuous data interaction of the machinery protection monitoring system.

Application Scenarios

1. Thermal power plant turbine, generator and auxiliary rotating equipment data diagnosis systems
2. Petrochemical large compressors, centrifugal units and key equipment condition monitoring platforms
3. Energy industry gas turbine unit dynamic waveform acquisition and fault analysis scenarios
4. Industrial sites requiring high-frequency transient signal capture and professional equipment diagnosis
5. Old 3500/22M data interface module replacement and monitoring system performance upgrading projects
6. Harsh industrial environments with wide temperature fluctuation and strong electromagnetic interference
7. All rotating machinery safety monitoring and predictive diagnosis applications based on 3500 system architecture
