Product Description

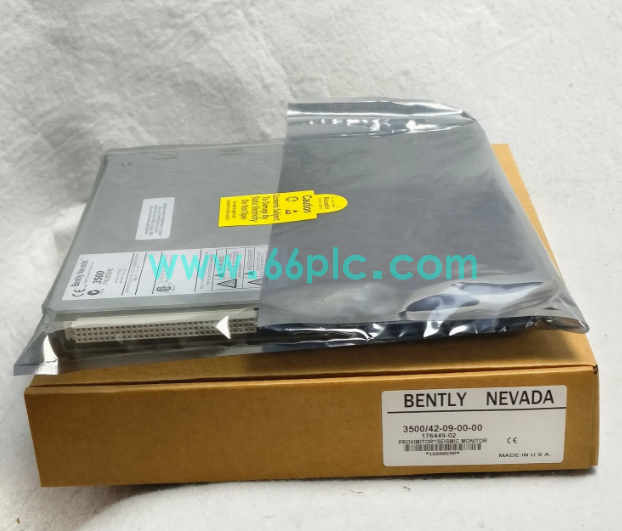

The Bently Nevada 3500/42 assembled with 140471-01 main board and 176449-02 auxiliary board is a high-precision four-channel Proximitor and seismic monitoring module for the 3500 series machinery protection systems. As a core dynamic parameter acquisition unit, it supports simultaneous signal collection from proximity probes and seismic sensors, accurately measuring radial vibration, axial thrust position, eccentricity, differential expansion, velocity and acceleration of rotating machinery. It provides reliable real-time data and threshold alarm judgment for key equipment such as turbines, compressors and generators, serving as the core monitoring guarantee for unit safe and stable operation.

This industrial-grade monitoring module features independent four-channel signal processing design, supporting flexible configuration of multiple mechanical parameter monitoring modes. It integrates high-sensitivity signal conditioning and noise reduction circuits to effectively filter on-site electromagnetic interference and ensure high-precision data repeatability. The module supports user-programmable alarm and trip thresholds, with automatic fault judgment for sensor disconnection, signal overload and circuit abnormalities. Equipped with front-panel LED status indicators, it realizes intuitive working status feedback. Adopting standard 3500 rack hot-swap design, it supports online non-stop replacement. With industrial wide-temperature resistance and enhanced EMC anti-interference performance, it adapts to harsh industrial environments and supports 24/7 long-term continuous equipment condition monitoring.

Main Specifications

1. Full Part Number: 3500/42, 140471-01, 176449-02; Product Type: 3500 series four-channel Proximitor seismic monitoring module
2. Applicable System: Bently Nevada 3500 machinery protection system, rotating equipment condition monitoring platform
3. Core Function: Multi-parameter mechanical signal acquisition, vibration/position monitoring, threshold alarm judgment and fault diagnosis
4. Channel Configuration: Four independent configurable signal channels for multi-parameter synchronous monitoring
5. Sensor Adaptation: Compatible with proximity displacement probes and seismic velocity/acceleration sensors
6. Monitoring Parameters: Support vibration, thrust position, eccentricity, differential expansion and dynamic speed parameters
7. Configuration Mode: Support 3500 dedicated configuration software for flexible alarm and trip threshold setting
8. Signal Performance: High-precision signal conditioning, low distortion and stable long-term sampling accuracy
9. Diagnosis Mechanism: Built-in sensor fault, signal loss and overload abnormal self-diagnosis function
10. Status Indication: Front-panel LED indicators for real-time channel and module operating status
11. Maintenance Design: Support hot-swap pluggable installation for non-stop online replacement
12. Operational Reliability: Compliant with API670 industrial standard, low failure rate for long-term machinery monitoring tasks

Core Functions

1. Act as the core multi-parameter dynamic monitoring unit for Bently Nevada 3500 system racks.
2. Accurately collect and condition proximity displacement and seismic vibration signals of rotating equipment.
3. Real-time monitor key mechanical parameters including vibration amplitude, shaft position and eccentricity status.
4. Compare real-time data with preset thresholds to trigger warning and protection alarm signals.
5. Perform automatic self-diagnosis of sensor circuits and abnormal signal states to locate faults quickly.
6. Upload high-quality monitoring data to upper system for equipment analysis and predictive maintenance.
7. Support diversified configuration modes to meet monitoring requirements of different rotating machinery.
8. Guarantee full-parameter safety monitoring and stable operation of industrial key rotating equipment.

Application Scenarios

1. Thermal power plant turbine, generator and auxiliary rotating equipment condition monitoring systems
2. Petrochemical large compressors, centrifugal units and pump set mechanical protection platforms
3. Energy industry gas turbine unit dynamic vibration and shaft position real-time monitoring scenarios
4. Industrial sites requiring multi-channel synchronous monitoring of mechanical vibration and displacement parameters
5. Old 3500 system monitoring module replacement and machinery condition monitoring system upgrading projects
6. Harsh industrial environments with strong electromagnetic interference and long-cycle continuous operation
7. All rotating machinery safety protection and condition monitoring applications based on 3500 system architecture
