ABB 3BHE023784R2530 PPD113B01-25-111000

ABB 3BHE023784R2530 PPD113B01-25-111000是AC800PEC电力电子控制平台高性能处理器模块，作为UNITROL 6000 X-power静态励磁系统的主控单元。搭载750MHz RISC处理器与64位浮点运算单元，配备64MB ECC内存与16MB闪存，控制周期可达100微秒级别，满足励磁快速调节的实时运算需求。

ABB 3BHE023784R2530 PPD113B01-25-111000 is high-performance processor module for AC800PEC power electronic control platform, acting as main controller of UNITROL 6000 X-power static excitation system. It is equipped with 750MHz RISC CPU and 64-bit FPU, 64MB ECC RAM and 16MB Flash, supporting control cycle as low as 100 microseconds to meet fast real-time calculation requirements for excitation regulation.

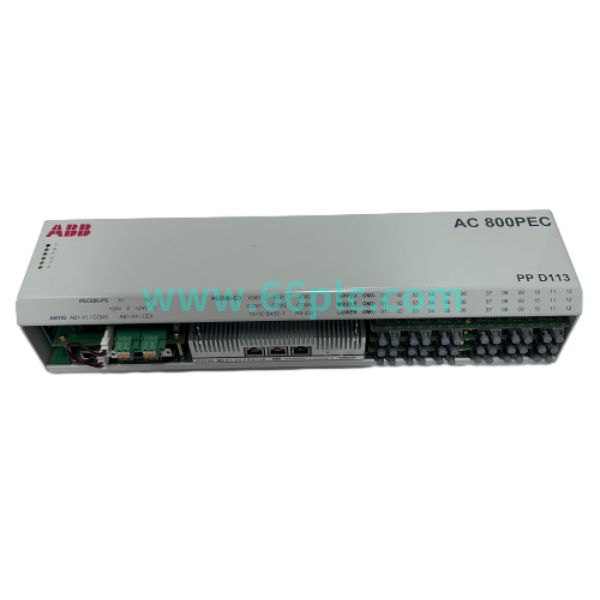

ABB 3BHE023784R2530 PPD113B01-25-111000 (1).jpeg

模块自带ANYIO-1 CEX2 RS422总线接口与ANYIO-2 Anybus/Modbus通讯口，预留多路UFD128光纤模块插槽，可扩展高速光纤I/O链路。整机内置全套AVR、PSS、励磁限制与保护逻辑，支持在线录波、故障存储与自诊断，是水电、火电、燃机发电机组励磁控制柜核心维修备件。

It integrates ANYIO-1 CEX2 RS422 and ANYIO-2 Anybus/Modbus ports, with multiple reserved slots for UFD128 optical modules to expand high-speed fiber I/O links. It runs complete AVR, PSS, excitation limit and protection algorithms, supports waveform recording, event log and self-diagnosis, widely used as critical replacement spare for generator excitation cabinets in power plants.

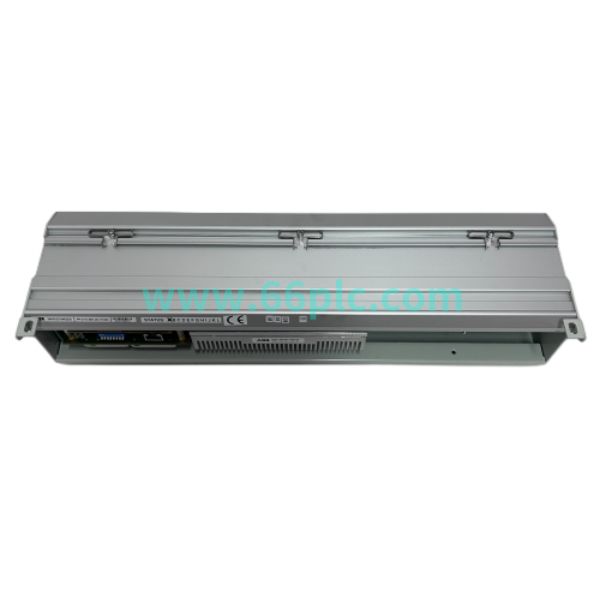

ABB 3BHE023784R2530 PPD113B01-25-111000 (3).jpeg

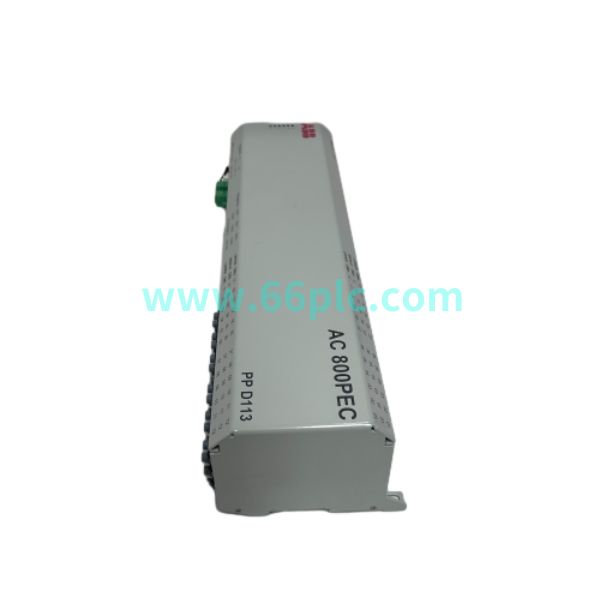

ABB 3BHE023784R2530 PPD113B01-25-111000 (4).jpeg

Main Specifications 技术参数

1. Product Series / 产品系列：ABB AC800PEC UNITROL 6000 X-power Excitation Platform
2. Part Numbers / 型号编码：3BHE023784R2530，PPD113B01-25-111000
3. Function Type / 类型：UNITROL6000 X-power励磁主控处理器模块
4. Key Features / 特性：750MHz RISC, 100μs control, ANYIO interface, UFD128 optical expansion, ECC memory
5. Mounting / 安装：励磁控制柜标准背板插槽安装

Core Functions 核心功能

1. AVR自动电压调节，稳定发电机机端电压，支持多种控制模式无扰切换。
Automatic voltage regulation to stabilize generator terminal voltage, bumpless transfer between multiple control modes.
2. PSS电力系统稳定器运算，抑制电网低频振荡，提升系统暂态稳定性能。
PSS power system stabilizer algorithm to damp low-frequency oscillation and improve grid transient stability.
3. 集成过励、欠励、V/Hz、转子电流等全套励磁限制与保护逻辑。
Integrated full excitation limit and protection functions: over-excitation, under-excitation, V/Hz and rotor current limit.
4. 多总线与光纤扩展通讯，对接励磁I/O板、HMI、DCS系统，高速交换实时数据。
Multi-bus and optical expansion communication, exchange high-speed real-time data with excitation I/O, HMI and DCS.
5. 内置故障录波、事件记录与持续自诊断，方便故障回溯和励磁性能分析。
Built-in waveform recorder, event log and continuous self-diagnosis for fault playback and performance analysis.

Application Scenarios 应用场景

1. 水电站、火电厂、燃气电站UNITROL6000 X-power励磁主控模块故障更换、停机检修。
Controller replacement and shutdown maintenance for UNITROL6000 X-power excitation cabinets in hydro, thermal and gas power plants.
2. 励磁系统PSS参数整定、电网扰动试验、励磁建模识别项目主控备件。
Spare controller for PSS tuning, grid disturbance test and excitation system model identification projects.
3. 存量AC800PEC励磁系统升级改造，程序移植、冗余主备控制器同步调试。
Legacy AC800PEC excitation system retrofitting, program migration and primary/standby redundancy commissioning.
4. 励磁控制柜年度预防性检修，主控模块老化预判更换，降低非计划停机风险。
Preventive replacement during annual cabinet overhaul to reduce unplanned outage risk from aging controller.
5. 海外电站UNITROL6000励磁项目备件供货，配套程序下载、通讯调试与故障排查。
Spare supply for overseas UNITROL6000 excitation projects, with programming download, commissioning and troubleshooting.

FAQ 常见问答

Q: Which excitation system does this module belong to? / 适配哪套励磁系统？

A: It is the main processor for ABB UNITROL 6000 X-power excitation system based on AC800PEC platform.
属于AC800PEC平台下ABB UNITROL 6000 X-power励磁系统主控处理器。

Q: Can it directly replace PPD539A102? / 是否可以直接替换PPD539A102？

A: Different hardware versions and firmware architecture, direct replacement is not supported.
硬件版本与固件架构不同，不支持直接互换替换。
