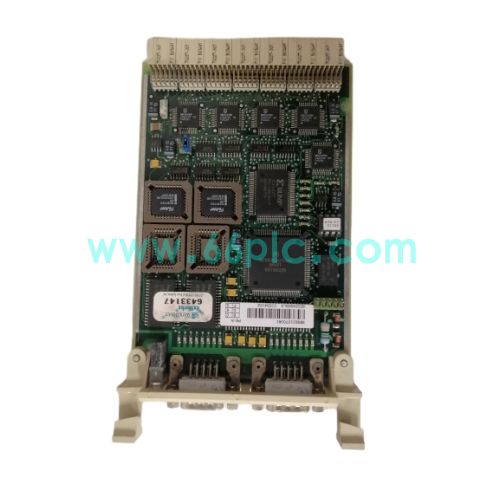

ABB CI534V02 3BSE010700R1 Modbus Communication Interface Module

ABB CI534V02 with part number 3BSE010700R1 is a Modbus communication interface module for ABB AC800M DCS system. It acts as a protocol gateway between the AC800M controller and third-party Modbus field devices, supporting Modbus RTU and ASCII protocols over RS485 serial bus to realize bidirectional data exchange.

This module has dual independent RS485 channels for connecting multiple Modbus slaves such as inverters, flow meters and power monitors. It supports galvanic isolation and built-in communication diagnostics. Widely used as spare replacement parts for factory automation, power and chemical plant DCS cabinet maintenance and system integration projects.

Main Specifications

1. Brand: ABB; Model: CI534V02; Part No: 3BSE010700R1; Type: Modbus Serial Interface Module
2. Compatible System: AC800M DCS; Protocol: Modbus RTU / Modbus ASCII
3. Interface: Dual RS485 channels; Baud rate: 1200 ~ 115200 bps configurable
4. Isolation: Galvanic isolation between serial bus and control backplane
5. Indicator: LED status lights for channel, communication and fault status
6. Operating Temp: -20℃ ~ +70℃; Protection: IP20; CE & UL certified
7. Supply Status: Spare communication module for ABB AC800M control rack

Core Functions

1. Realize Modbus RTU/ASCII serial communication between AC800M controller and third-party field instruments.
2. Dual RS485 independent channels to connect different Modbus slave devices at the same time.
3. Read measurement data from Modbus slaves and send control commands from DCS controller to field equipment.
4. Galvanic isolation design suppresses electrical noise and protects the main controller from field interference.
5. Onboard LED indicators display communication status and channel errors for fast on-site troubleshooting.
6. Built-in communication self-diagnosis, detect disconnection, parity error and timeout, and report alarms to DCS.

Application Scenarios

1. ABB AC800M DCS control cabinets in power, chemical and manufacturing industries.
2. Connect Modbus-based inverters, power meters, flow transmitters and temperature controllers to DCS.
3. Replacement of defective Modbus interface modules in existing AC800M control racks.
4. Spare parts inventory for automation maintenance teams of process industries.
5. System retrofit and integration of legacy AC800M DCS with third-party Modbus devices.
6. Water treatment, pulp & paper and metallurgy process monitoring with serial Modbus network.

FAQ

1. Q: What is ABB CI534V02 3BSE010700R1?
   A: It is a dual-channel Modbus RTU/ASCII serial communication interface module designed for ABB AC800M DCS system.
2. Q: What devices can CI534V02 connect to?
   A: It can connect all standard Modbus slave devices including frequency converters, power monitors and sensors.
3. Q: Does CI534V02 support two independent Modbus networks?
   A: Yes, dual RS485 channels work separately, supporting two different Modbus slave networks simultaneously.
