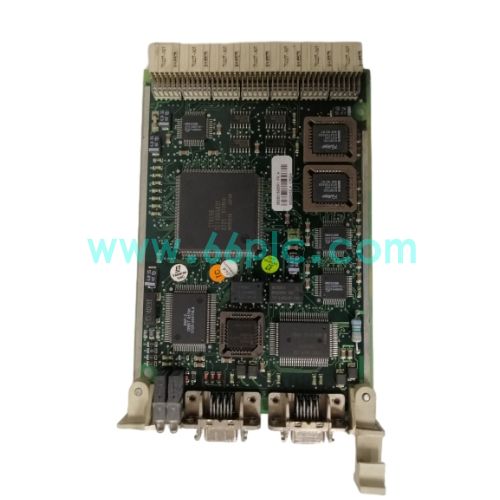

ABB CI522A 3BSE018283R1 AF100 Communication Interface Module

ABB CI522A with part number 3BSE018283R1 is an AF100 communication interface module designed for ABB AC800M DCS system. It builds the redundant AF100 bus connection between AC800M controller and S800 I/O stations, realizing stable bidirectional data transmission between the main processor and distributed field I/O modules.

This module supports redundant AF100 bus communication to avoid single-point communication failure. It can be hot-swapped in the control rack without system shutdown. It is widely used as spare replacement parts for power, chemical and petrochemical plant DCS cabinet maintenance and system upgrade projects.

Main Specifications

1. Brand: ABB; Model: CI522A; Part No: 3BSE018283R1; Type: AF100 Interface Module
2. Compatible System: AC800M DCS; Bus Type: AF100 fieldbus for S800 I/O
3. Communication: Redundant dual AF100 bus ports; Support redundant network operation
4. Power Supply: Powered by rack backplane; Support hot swap
5. Indicator: LED status lights for bus, communication and fault alarm
6. Operating Temp: 0℃ ~ +60℃; Protection: IP20; Industrial EMC protection
7. Supply Status: Spare communication module for ABB AC800M control rack

Core Functions

1. Realize AF100 bus communication between AC800M controller and distributed S800 I/O stations.
2. Dual redundant AF100 ports, automatic switchover if one communication channel fails.
3. Transmit field I/O signals to the controller and forward control commands to remote S800 I/O modules.
4. Hot-swap function allows module replacement without stopping the DCS control system.
5. Onboard LED indicators show working status and bus faults for fast on-site troubleshooting.
6. Built-in communication self-diagnosis, detecting bus short circuit and disconnection and reporting alarms.

Application Scenarios

1. ABB AC800M DCS control cabinets in power plants, chemical and petrochemical industries.
2. Distributed S800 I/O networking based on AF100 redundant bus for process control loops.
3. Replacement of defective AF100 interface modules in existing AC800M control racks.
4. Spare parts inventory for automation maintenance teams of process industries.
5. System retrofit and I/O expansion of legacy ABB AC800M distributed control systems.
6. Pulp & paper, water treatment and metallurgy control systems requiring redundant fieldbus.

FAQ

1. Q: What is ABB CI522A 3BSE018283R1?
   A: It is AF100 redundant communication interface module for AC800M DCS, connecting controller and S800 I/O stations.
2. Q: What is AF100 bus used for?
   A: AF100 is ABB dedicated fieldbus for connecting AC800M controller with remote S800 I/O units.
3. Q: Does CI522A support hot swap?
   A: Yes, it supports hot swap, technicians can replace the module without shutting down the DCS system.
