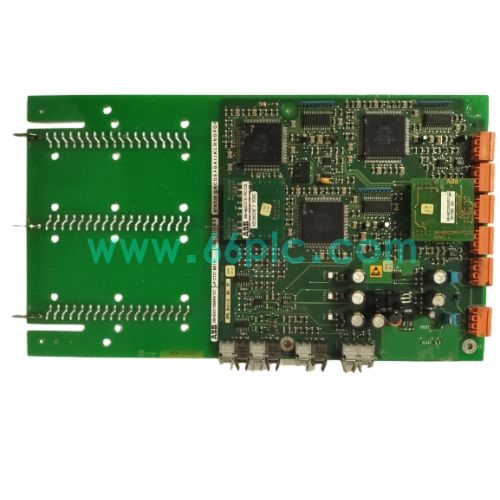

ABB 3BHE021889R0101 UFC721BE101 ADCVI Control Board

ABB UFC721BE101 with part number 3BHE021889R0101 is an ADCVI analog to digital conversion and control board for ABB Procontrol P14 control system. It collects multi-channel analog field signals, converts them into digital data and transmits to the main controller, and also processes control commands to output analog signals for closed-loop regulation.

This board adopts coated conformal treatment to resist moisture, dust and corrosion for harsh industrial environments. It supports backplane bus communication, with built-in channel diagnosis and fault alarm function. It is widely used as spare replacement parts for power plant excitation systems, metallurgy and heavy industry control cabinet maintenance and retrofit projects.

Main Specifications

1. Brand: ABB; Model: UFC721BE101; Part No: 3BHE021889R0101; Type: ADCVI Control Board
2. Compatible System: Procontrol P14 Distributed Control System
3. Function: Multi-channel analog signal acquisition, A/D conversion and analog output
4. Bus Interface: Rack backplane bus; Coated PCB for harsh environment
5. Diagnostics: Channel self-diagnosis, fault indicator LED
6. Operating Temp: -40℃ ~ +85℃; Industrial grade EMC protection
7. Supply Status: Spare ADCVI board for Procontrol P14 control rack

Core Functions

1. Collect multi-channel analog signals from field transmitters and sensors, perform high-precision A/D conversion.
2. Receive digital control commands from the main controller and convert them into analog output signals.
3. Communicate with other modules in the rack via backplane bus to exchange real-time process data.
4. Conformal coating protects circuit board against humidity, dust and corrosive gas in industrial sites.
5. Built-in channel monitoring to detect signal abnormality and report fault status to the system.
6. Onboard LED indicators display running status and fault codes for fast on-site troubleshooting.

Application Scenarios

1. ABB Procontrol P14 control racks in power generation, metallurgy and heavy industry plants.
2. Signal acquisition and analog closed-loop control for generator excitation systems.
3. Replacement of defective ADCVI boards in existing Procontrol P14 control cabinets.
4. Spare parts inventory for electrical and automation maintenance teams of process industries.
5. Retrofit and upgrade of legacy ABB Procontrol P14 distributed control systems.
6. Industrial process control under humid, dusty and corrosive working conditions.

FAQ

1. Q: What is ABB UFC721BE101 3BHE021889R0101?
   A: It is a coated ADCVI analog signal acquisition and control board for ABB Procontrol P14 DCS system.
2. Q: What does ADCVI stand for?
   A: ADCVI refers to Analog to Digital Conversion and Visual Indication board for analog signal processing.
3. Q: What is the coated version used for?
   A: Conformal coating protects the PCB board, suitable for plant environments with high humidity, dust and corrosive gas.
