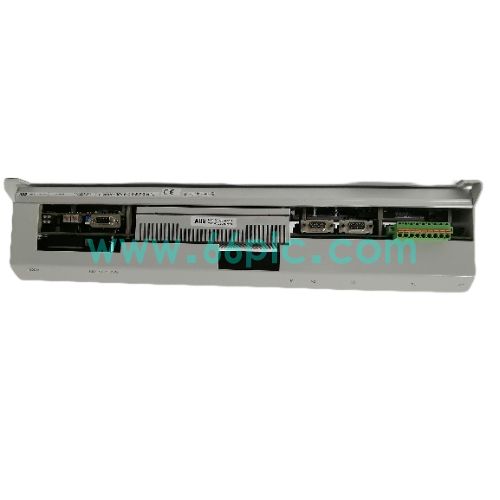

ABB 3BHE017628R0102 PPD115A102 Power Electronic Control Unit

ABB PPD115A102, part number 3BHE017628R0102, is a high-speed power electronic control unit for the ABB AC800PEC control platform. Built with DSP and FPGA dual-core architecture, it undertakes real-time high-speed closed-loop calculations for power conversion equipment, receiving commands from upper controllers and generating precise trigger signals for power semiconductor devices.

This unit adopts fiber optic communication interfaces for strong electrical isolation and anti-interference capability. It integrates comprehensive hardware monitoring and fault protection functions, supporting high deterministic control cycles. It is widely used as spare replacement parts for excitation systems, high-power converters and static var compensator cabinet maintenance and retrofit projects.

Main Specifications

1. Brand: ABB; Model: PPD115A102; Part No: 3BHE017628R0102; Type: Power Electronic Control Unit
2. Compatible System: AC800PEC Power Electronic Controller Platform
3. Processor: DSP + FPGA dual-core architecture; Interface: Multi-channel fiber optic ports
4. Power Supply: 24VDC via backplane; Cooling: Forced air cooling in subrack
5. Diagnostics: Built-in temperature, current and communication fault monitoring
6. Operating Temp: -10℃ ~ +60℃; Industrial EMC protection for power electronics
7. Supply Status: Spare control unit for AC800PEC power control rack

Core Functions

1. Carry out ultra-fast real-time closed-loop control algorithms for high-power power electronic converters.
2. Generate high-precision gate trigger pulses to control IGBT and IGCT power semiconductor devices.
3. Fiber optic communication realizes electrical isolation between control unit and power stage to suppress noise interference.
4. Real-time monitoring of operating parameters, trigger overcurrent, overtemperature and communication fault protection.
5. Exchange control data with upper-level controller through rack backplane bus.
6. Record fault event logs to assist engineers in troubleshooting power system failures.

Application Scenarios

1. ABB AC800PEC control racks for power plant UNITROL excitation systems.
2. High-power ACS6000 drives, SVC static var compensators and STATCOM equipment.
3. Large rectifier control for electrolysis, metallurgy and heavy industrial power conversion.
4. Replacement of defective power electronic control units in existing AC800PEC cabinets.
5. Spare parts inventory for power, oil & gas and metallurgy automation maintenance teams.
6. Retrofit and upgrade of legacy ABB high-power variable frequency and power control systems.

FAQ

1. Q: What is ABB PPD115A102 3BHE017628R0102?
   A: It is a high-speed power electronic control unit based on AC800PEC platform, dedicated for high-power converter and excitation system control.
2. Q: What is the core advantage of fiber optic interface?
   A: Fiber communication achieves complete galvanic isolation, effectively resisting strong electromagnetic interference in high-power cabinets.
3. Q: What system is this module compatible with?
   A: It belongs to the AC800PEC power electronics controller system, widely matched with ABB excitation and high-power drive products.
