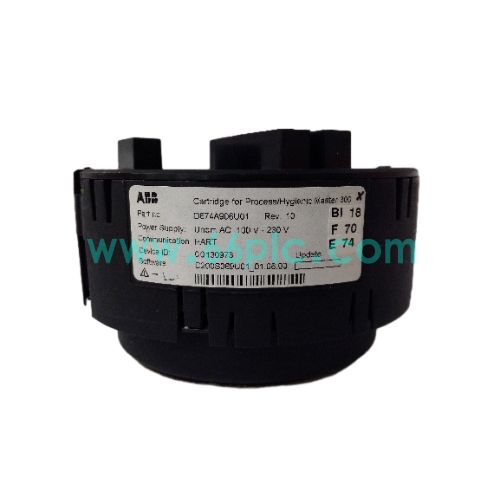

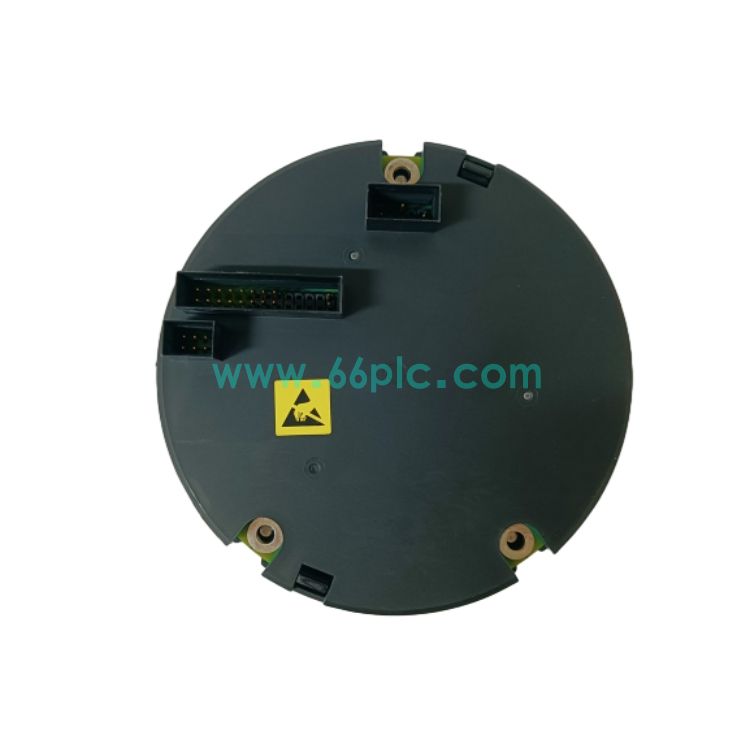

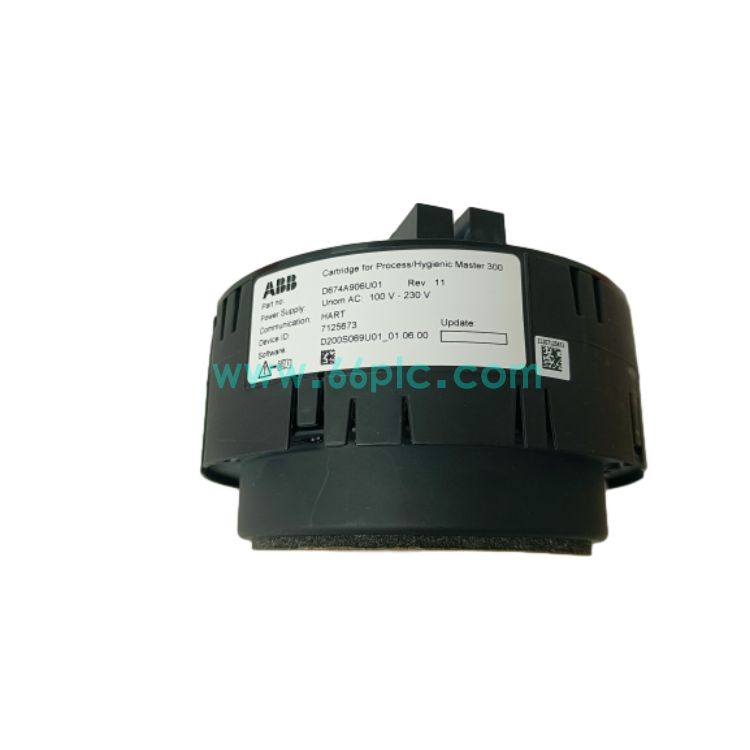

ABB D674A906U01 FET300 Flowmeter Transmitter Cartridge

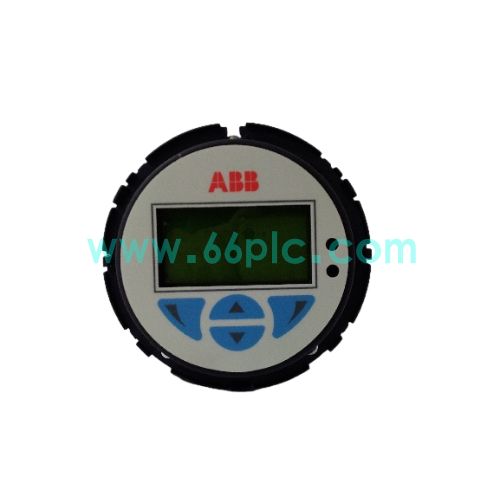

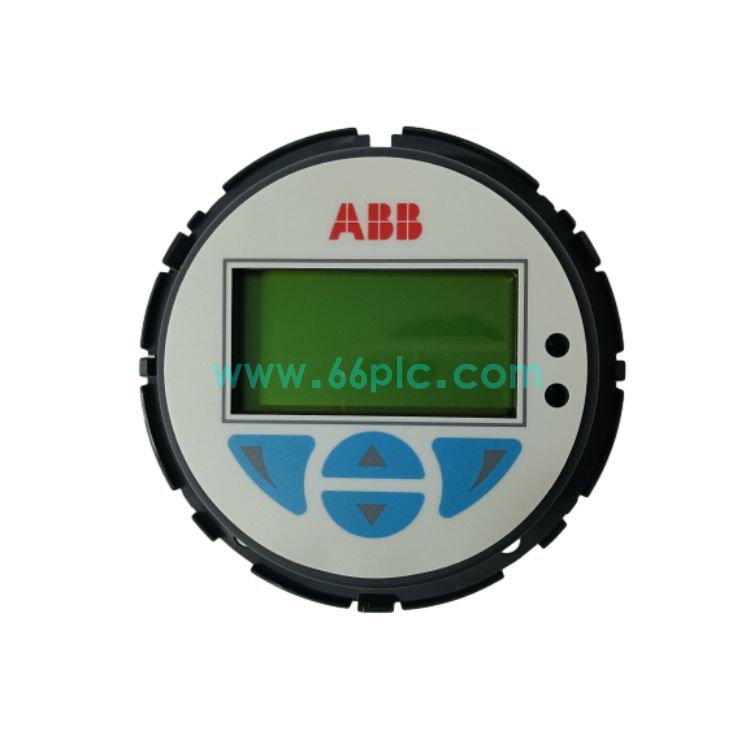

ABB D674A906U01 is the U-high HART transmitter cartridge for ABB FET300 electromagnetic flowmeter. It is the core measuring and computing unit with LCD display and operation keys, responsible for flow signal acquisition, calculation and local display.

This cartridge supports HART protocol for digital communication and remote parameter configuration. It can be directly replaced inside FET300 flowmeter head without complex calibration. Widely used as spare parts for petrochemical, water treatment and chemical process flow measurement.

Main Specifications

1. Brand: ABB; Model: D674A906U01; Type: FET300 Flowmeter Transmitter Cartridge
2. Compatible Device: ABB FET300 electromagnetic flowmeter, ProcessMaster series flow sensor
3. Core Functions: Flow signal processing, flow calculation, local LCD display, HART digital communication
4. Communication: HART protocol; Local button configuration, 4-20mA analog output
5. Operating Temperature: -40℃ ~ +85℃; Integrated LCD screen and operation keypad
6. Feature: Direct cartridge replacement, on-board self-diagnosis, support field parameter calibration
7. Supply Status: Original ABB spare cartridge for FET300 flowmeter maintenance

Core Functions

1. Receive sensing signal from electromagnetic flow sensor, compute instantaneous flow and cumulative flow value.
2. Display flow data, status and alarm information on local LCD screen, support on-site parameter setting via keys.
3. Output 4-20mA analog signal to DCS system and realize remote configuration through HART communication.
4. Built-in hardware self-diagnosis function, detect sensor fault, circuit abnormality and trigger alarm message.
5. Cartridge plug-in design, quickly replace the internal core of FET300 flowmeter on site to reduce downtime.
6. Support flow unit switching, totalizer reset, damping and other process parameter configuration for different media.

Application Scenarios

1. Core measurement cartridge for ABB FET300 electromagnetic flowmeter in chemical, water and oil & gas process plants.
2. Fault cartridge replacement and routine maintenance of existing ABB ProcessMaster FET300 flow meters.
3. Flow measurement instrument renovation and upgrade for continuous production and fluid metering projects.
4. Emergency replacement for cartridge failure to restore flow measurement, local display and HART communication functions.
5. Spare parts stocking for maintenance teams operating ABB electromagnetic flowmeter systems.
6. Aftermarket spare supply for flow instrument overhaul and industrial fluid metering transformation projects.

FAQ

1. Q: Can ABB D674A906U01 fit other series flowmeters besides FET300?
   A: It is dedicated for ABB FET300 flowmeter, cannot be installed on other ABB flow transmitter models.
2. Q: What are typical cartridge failure symptoms?
   A: Blank LCD screen, no flow output, HART communication failure, flow reading abnormal and instrument alarm.
3. Q: How to complete commissioning and diagnosis?
   A: Complete cartridge replacement, check sensor wiring, configure medium parameters and verify 4-20mA & HART signal output.
