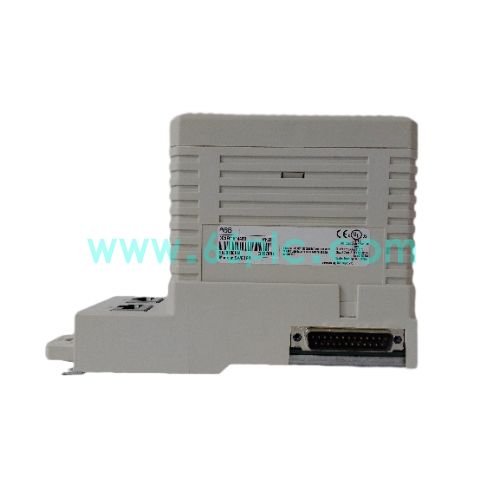

ABB CI857K01 3BSE018144R1 INSUM Communication Interface Module

ABB CI857K01, part number 3BSE018144R1, is an INSUM communication interface module for ABB AC800M controller under 800xA DCS platform. It serves as the communication gateway between AC800M controller and INSUM motor control units, realizing reliable data exchange for motor management system.

This module gets power from the controller via CEX bus without extra external power supply. It supports multiple INSUM devices connection and built-in hardware self-diagnosis. Widely used as spare replacement parts for power plant, metallurgy and petrochemical motor control cabinets.

Main Specifications

1. Brand: ABB; Model: CI857K01; Part No:3BSE018144R1; Type: INSUM Communication Interface Module
2. Compatible System: ABB AC800M Controller, 800xA DCS, INSUM motor control system
3. Core Functions: INSUM device data communication, CEX bus interaction, motor status collection and control command transmission
4. Communication: INSUM TCP/IP, CEX backplane bus; Up to 128 INSUM devices per CI857K01
5. Operating Temperature: -20℃ ~ +70℃; Powered by controller CEX bus, no external power needed
6. Feature: Hot swap support, on-board continuous self-diagnosis, rack slot plug-in installation
7. Supply Status: Original ABB spare part for 800xA DCS control cabinet maintenance

Core Functions

1. Collect real-time running status, current, fault and protection signals from INSUM motor control units.
2. Transmit motor start/stop control commands sent by AC800M controller down to INSUM field devices.
3. Communicate with AC800M controller through CEX backplane bus to exchange motor management data.
4. Built-in hardware self-test function to detect module and communication faults and trigger system alarm.
5. Standard rack slot design supports hot swap replacement, no need to shut down the whole DCS system during maintenance.
6. Support multi-drop INSUM network, realize centralized monitoring and control of dozens of field motors.

Application Scenarios

1. Motor control communication gateway for ABB 800xA DCS system in power, chemical and metallurgical industries.
2. Fault module replacement and routine maintenance of existing AC800M INSUM motor management racks.
3. Centralized motor control system renovation and upgrade for large continuous process manufacturing plants.
4. Emergency replacement for interface module failure to restore communication between controller and INSUM motor units.
5. Spare parts stocking for maintenance teams operating ABB 800xA distributed control systems.
6. Aftermarket spare supply for control cabinet overhaul and industrial motor control transformation projects.

FAQ

1. Q: Can ABB CI857K01 3BSE018144R1 work with non-ABB controllers?
   A: It is dedicated for ABB AC800M controller and INSUM system, cannot be used with other brands of control hardware.
2. Q: What are typical module failure symptoms?
   A: Loss of INSUM device communication, CEX bus error, motor status signal missing, module fault indicator alarm.
3. Q: How to complete commissioning and diagnosis?
   A: Check CEX backplane connection and INSUM network wiring, use ABB Control Builder software to verify device communication status.
