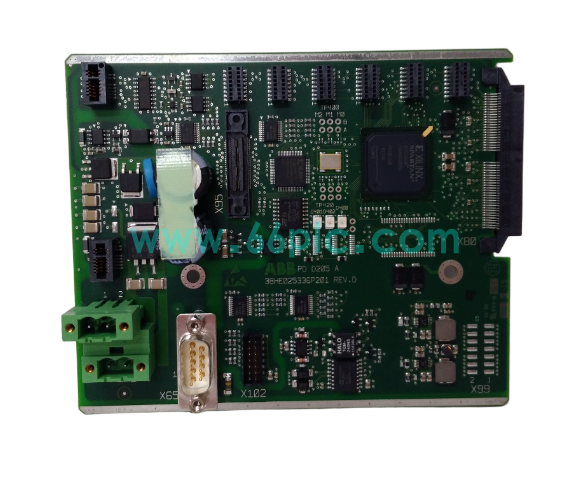

ABB PDD205A1121 3BHE025335R1121 3BHE025336P201 Pulse Distribution Driver Board

The ABB PDD205A1121 (3BHE025335R1121, 3BHE025336P201) is an upgraded pulse distribution driver board for ABB UNITROL generator excitation systems. It receives optical trigger signals from main control unit, outputs synchronized firing pulses for thyristor rectifier bridges, precisely adjusting excitation current for synchronous generators to guarantee stable grid‑connected voltage operation.

This Eurocard‑format rack‑mount board adopts fiber‑optic isolation design and comprehensive on‑board fault diagnosis. It can detect thyristor and loop abnormal conditions and feed back fault status. It serves as vital aftermarket spare for maintenance, overhaul and retrofitting of thermal‑power and hydro‑power excitation cabinets.

Main Specifications

• Brand: ABB; Model:PDD205A1121 3BHE025335R1121 3BHE025336P201; Type: Excitation Pulse Distribution Driver Board
• Applicable System: ABB UNITROL series static excitation control system for synchronous generator sets
• Interface: Multi‑channel fiber‑optic input/output, subrack back‑plane bus, hardware status LED indicators
• Function: Opto‑electrical conversion, thyristor firing pulse distribution, power device monitoring, fault signal feedback
• Feature: High‑voltage galvanic isolation, Eurocard slot‑mount installation, built‑in self‑diagnosis, industrial anti‑interference circuit
• Installation: Standard Eurocard slot‑mount inside generator excitation cabinet subrack
• Operating Environment:‑10℃ ~ +60℃, 5%‑95% RH non‑condensing
• Certifications: CE compliant for power‑plant excitation control industrial applications

Core Functions

• Receive optical trigger commands from upper excitation controller and convert into electrical firing pulse signals.
• Distribute synchronous firing pulses to each thyristor unit of rectifier bridge for generator rotor excitation‑current regulation.
• Real‑time monitor working status of power semiconductors and capture loop abnormal faults during unit running.
• Transmit fault alarm and operating status back to main controller via cabinet internal bus to trigger system protection logic.
• Fiber‑optic isolation separates low‑voltage control side from high‑voltage power side to improve anti‑interference performance and safety.
• Support status inspection and fault‑log reading by ABB dedicated excitation engineering software during cabinet maintenance work.

Application Scenarios

• Pulse driving hardware for static excitation cabinets of thermal‑power, hydro‑power and distributed‑power‑plant generator sets.
• Rectifier‑bridge pulse distribution unit for ABB UNITROL series excitation automation platforms.
• Retrofit and spare replacement for PDD series pulse‑driver‑board power‑electronic hardware upgrade projects.
• Excitation cabinet overhaul, pulse‑loop debugging and faulty pulse‑driver‑board replacement tasks.
• Spare‑parts inventory for power‑plant automation integrators and electrical engineering contractors.

• Global aftermarket spare supply for technical teams maintaining ABB generator excitation control hardware.
