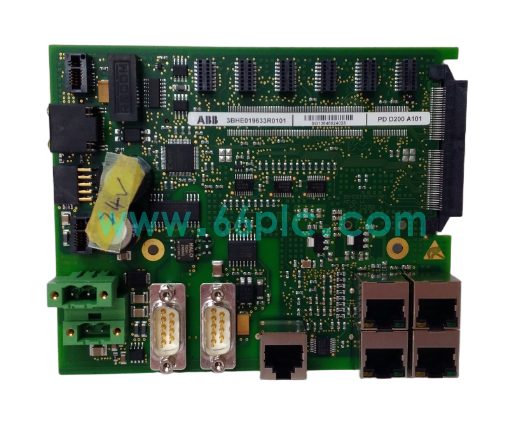

ABB PDD200A101 3BHE019633R0101 3BHE019634P201 Pulse Distribution Driver Board

The ABB PDD200A101 (3BHE019633R0101, 3BHE019634P201) is a pulse distribution driver board for ABB UNITROL generator excitation systems. It receives optical trigger commands from main control hardware, distributes synchronized firing pulses to thyristor rectifier bridges to adjust generator excitation current, supporting stable voltage regulation for synchronous generating‑sets.

This Eurocard‑format rack‑mount board adopts fiber‑optic isolation and built‑in hardware self‑diagnosis, detecting power device abnormal status and feeding back fault signals. It acts as critical aftermarket spare for maintenance, overhaul and retrofitting of thermal‑power and hydro‑power generator excitation cabinets.

Main Specifications

• Brand: ABB; Model:PDD200A101 3BHE019633R0101 3BHE019634P201; Type: Excitation Pulse Distribution Driver Board
• Applicable System: ABB UNITROL series static excitation control system for synchronous generators
• Interface: Multi‑channel fiber‑optic input and output, internal back‑plane bus interface, status LED indicators
• Function: Optical‑electrical signal conversion, thyristor firing pulse distribution, fault detection and status feedback
• Feature: High‑voltage galvanic isolation, Eurocard slot‑mount, on‑board self‑diagnosis, industrial anti‑interference circuit
• Installation: Standard Eurocard slot‑mount inside generator excitation cabinet subrack
• Operating Environment:‑10℃ ~ +60℃, 5%‑95% RH non‑condensing
• Certifications: CE compliant for power‑plant excitation control industrial applications

Core Functions

• Receive optical trigger signals from upper‑level excitation controller and convert into electrical drive pulse signals.
• Distribute synchronized firing pulses to each thyristor unit of rectifier bridge to adjust generator rotor excitation current.
• Real‑time monitor working condition of power semiconductors and capture loop abnormal faults during equipment operation.
• Transmit fault alarm and operating status back to main controller via cabinet internal bus for system protection logic execution.
• Fiber‑optic isolation separates low‑voltage control circuit from high‑voltage power side to improve anti‑interference performance and safety.
• Support status checking and fault log reading through ABB dedicated excitation engineering software during cabinet maintenance.

Application Scenarios

• Pulse driving unit for static excitation cabinets of thermal‑power, hydro‑power and distributed‑power‑plant generator sets.
• Excitation rectifier bridge pulse distribution hardware for ABB UNITROL series excitation automation platforms.
• Retrofit and spare replacement for legacy PDD series pulse‑driver‑board power‑electronic hardware systems.
• Excitation cabinet overhaul, pulse‑loop debugging and faulty pulse‑driver‑board replacement projects.
• Spare‑parts inventory for power‑plant automation integrators and electrical engineering contractors.

• Global aftermarket spare supply for technical teams maintaining ABB generator excitation control hardware.
