Product Description

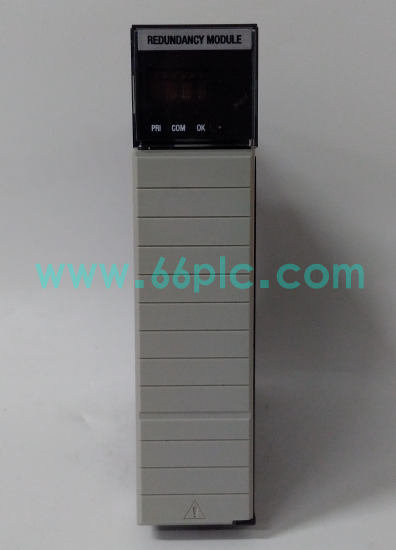

The Allen-Bradley 1756-RM is a dedicated fiber-optic redundancy synchronization module designed for Rockwell ControlLogix 1756 series PLC systems. It establishes high-speed data synchronization between primary and standby controllers, realizing seamless fault switching for redundant control architecture. As the core hardware for PLC hot-standby redundancy systems, it eliminates single-point failures and ensures uninterrupted operation of critical industrial control loops.

Adopting single-mode fiber transmission architecture and high-efficiency synchronization algorithms, this module supports microsecond-level rapid switchover without program interruption or data loss. It integrates comprehensive status LED indicators and real-time self-diagnosis functions, supporting hot-swap maintenance. With industrial-grade anti-interference performance and stable long-cycle operation capability, it guarantees 24/7 high-reliability operation for key process automation control systems.

Main Specifications

1. Full Model: 1756-RM; Product Type: ControlLogix series fiber-optic PLC redundancy synchronization and switching module
2. Applicable System: Rockwell 1756 ControlLogix PLC redundant control system architecture
3. Core Function: Dual-controller data synchronization, fault judgment, seamless master-standby switchover and status monitoring
4. Transmission Mode: Single-mode fiber optic communication, effectively resisting electromagnetic interference and signal attenuation
5. Switching Performance: Microsecond-level fast redundant switching, zero program stop and data loss during failure
6. Status Indication: Built-in PRI, COM, OK LED indicators for real-time module and system health status display
7. Maintenance Feature: Supports hot-swap replacement, enabling non-stop system maintenance and upgrade
8. Synchronization Mechanism: Real-time program and data synchronization to keep dual controllers fully consistent
9. Fault Diagnosis: Intelligent self-diagnosis function for rapid positioning of synchronization and hardware abnormalities
10. Operational Reliability: Industrial wide-temperature and anti-vibration design for long-term continuous system operation

Core Functions

1. Acts as the core synchronization and switching unit for ControlLogix PLC redundant hot-standby systems.
2. Realizes real-time program logic and operating data synchronization between master and standby controllers.
3. Monitors primary controller operating status in real time and triggers automatic switchover upon faults.
4. Completes microsecond-level seamless switching to ensure continuous and stable control output.
5. Adopts fiber communication to completely avoid industrial electromagnetic signal interference.
6. Supports live hot-swap maintenance to reduce system downtime and improve operational stability.
7. Provides intuitive LED status feedback for convenient on-site inspection and fault judgment.
8. Eliminates single-point failure risks of PLC systems to enhance overall equipment safety level.
9. Matches standard 1756 rack structure for convenient installation and system architecture deployment.
10. Guarantees uninterrupted and reliable operation of critical industrial automatic control systems.

Application Scenarios

1. Petrochemical and chemical process industry high-reliability redundant PLC control system projects
2. Thermal power plant auxiliary control and generator set uninterrupted control scenarios
3. Data center and critical load supporting automation equipment redundant control systems
4. Metallurgical heavy industry continuous production line zero-stop control guarantee projects
5. Water treatment and environmental protection 24-hour uninterrupted operation control platforms
6. Old ControlLogix system redundancy function transformation and system stability upgrading
7. Industrial intelligent manufacturing core control system fault-tolerant architecture construction
8. Harsh electromagnetic industrial environment high-stability PLC redundant operation scenarios
9. Key process control occasions requiring zero downtime and high safety redundancy configuration
10. Large-scale automated production system high-reliability fault-tolerant control guarantee projects
