Product Description

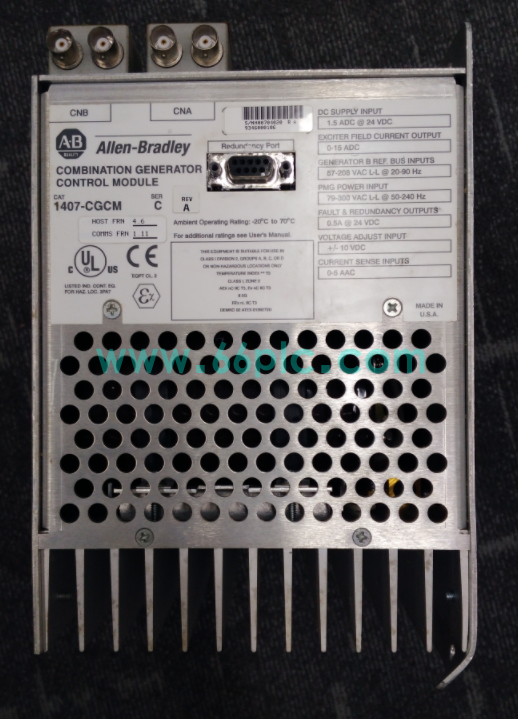

The Allen-Bradley 1407-CGCM is a high-performance microprocessor-driven combination generator control module under the Bulletin 1407 series. Fully integrated with Rockwell Logix-family PLC systems, it consolidates generator voltage regulation, excitation control, power metering and equipment protection into a single compact unit, serving as the core control hardware for industrial generator set automatic operation systems.

Supporting multiple regulation modes including AVR, FCR and power factor control, this module features redundant ControlNet interfaces and dedicated RS-232 configuration ports for reliable network communication and parameter debugging. It integrates comprehensive fault protection logic and real-time power parameter monitoring functions. With industrial-grade stability and flexible programmable logic, it ensures 24/7 safe, stable and efficient automatic operation of industrial generator units.

Main Specifications

1. Full Model: 1407-CGCM; Product Type: Bulletin 1407 series integrated combination generator control and protection module
2. Applicable System: Rockwell Logix PLC control systems, industrial generator sets and power supply management platforms
3. Core Function: Generator excitation regulation, voltage control, power parameter metering, fault protection and network data transmission
4. Control Modes: Supports AVR automatic voltage regulation, FCR field current regulation and power factor (PF) regulation modes
5. Communication Interfaces: Redundant ControlNet connectors and dedicated RS-232 port for configuration and inter-module communication
6. Processing Performance: Advanced microprocessor-based architecture for fast response and high-precision power regulation
7. Protection Logic: Built-in overvoltage, undervoltage, overcurrent and abnormal grid condition protection functions
8. System Compatibility: Seamless docking with Rockwell Automation Logix series programmable controllers
9. Programmability: Customizable control logic and parameter thresholds to adapt to diverse generator operation demands
10. Operational Reliability: Industrial anti-interference design, suitable for long-term continuous power generation operation scenarios

Core Functions

1. Acts as the all-in-one core control unit for industrial generator set automatic operation systems.
2. Realizes precise automatic voltage regulation to stabilize generator output voltage amplitude.
3. Supports flexible excitation current and power factor adjustment to optimize power generation quality.
4. Accurately meters real-time power parameters including voltage, current and reactive power of generators.
5. Executes multi-dimensional fault protection to avoid generator damage from abnormal operating conditions.
6. Enables high-stability data interaction and system linkage via redundant ControlNet network communication.
7. Supports local parameter configuration and fault debugging through dedicated RS-232 interface.
8. Integrates optimized control algorithms to improve generator operation efficiency and power supply stability.
9. Simplifies on-site system configuration by integrating multiple control functions into one modular unit.
10. Guarantees safe, standardized and intelligent automatic operation of industrial power generation equipment.

Application Scenarios

1. Industrial factory self-provided generator set automatic control and power regulation projects
2. Data center and critical load backup power generation system intelligent control scenarios
3. Petrochemical, metallurgical and heavy industry on-site power generation equipment management systems
4. Commercial building and municipal engineering standby generator monitoring and regulation platforms
5. Rockwell Logix PLC integrated power generation control system construction and upgrading projects
6. Power generation equipment precision voltage stabilization and power factor optimization transformation scenarios
7. Uninterrupted power supply occasions requiring automatic fault protection and stable power output
8. Harsh industrial environment generator set long-cycle stable operation guarantee systems
9. Old generator control system module replacement and intelligent operation upgrading projects
10. Distributed power generation equipment centralized monitoring and automatic regulation scenarios
