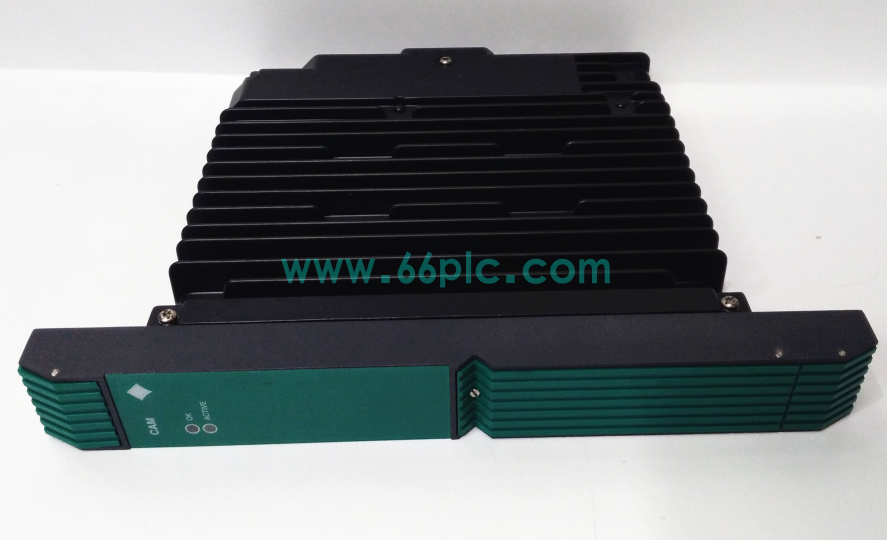

Yokogawa PSCAMAAN A5E0023936304 Safety Analog Input Module

The Yokogawa PSCAMAAN A5E0023936304 is a safety‑rated analog input module for ProSafe‑PLC SIS safety instrumented systems. It acquires 4‑20mA analog signals from field transmitters and transfers valid process data to the safety CPU for safety interlock and emergency shutdown logic calculation.

This rack‑mount hot‑swappable module is equipped with built‑in self‑diagnostic functions to detect loop failures and internal hardware anomalies. It is installed in ProSafe‑PLC chassis slots and is widely used in safety control cabinets of petrochemical, refinery and power‑generation facilities.

Main Specifications

• Brand: Yokogawa; Model: PSCAMAAN A5E0023936304; Type: SIS Safety Analog Input Module
• Applicable System: Yokogawa ProSafe‑PLC Safety Instrumented System
• Core Tasks: 4‑20mA analog signal collection, hardware self‑diagnosis, safety data transmission, hot‑swap maintenance
• Signal Interface: Field analog signal terminals, internal backplane bus connector for ProSafe‑PLC rack
• Installation: Plug‑in slot‑mount on ProSafe‑PLC module rack, supports hot‑swap replacement
• Signal Type: 4‑20 mA current loop for field process transmitters
• Operating Environment: 0℃ ~ +55℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Mechanical: Standard ProSafe‑PLC module form‑factor, IP20 for cabinet‑internal installation
• Certifications: CE, TÜV certified for IEC61508 SIL‑3 safety‑related application

Core Functions

• Collect high‑reliability 4‑20 mA analog signals from pressure, temperature and flow transmitters of SIS safety‑critical loops.
• Transmit valid process measurement data to ProSafe‑PLC safety CPU via backplane bus for interlock and emergency shutdown logic processing.
• Built‑in comprehensive self‑diagnosis to identify loop breakage, signal over‑range and internal hardware faults and report fault status to system.
• Support hot‑swap module replacement without stopping the whole SIS system, effectively reducing maintenance‑caused downtime.
• Adopt safety‑oriented signal processing mechanism to guarantee data integrity for safety‑related control loops.
• Industrial‑grade plug‑in hardware design ensures long‑term stable continuous operation inside safety instrumented control cabinets.

Application Scenarios

• Spare‑part replacement for Yokogawa ProSafe‑PLC SIS safety cabinets in petrochemical plants, refineries and power‑generation facilities.
• Analog signal acquisition hardware for ESD emergency shutdown and burner‑management safety instrumented control loops.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy Yokogawa safety‑PLC equipment.
• Matching analog input module cooperating with ProSafe‑PLC rack chassis, safety CPU and supporting terminal units.
• Retrofit replacement for aged analog modules with signal drift, self‑diagnosis failure and communication abnormal faults.

• Global aftermarket spare supply for automation maintenance teams maintaining Yokogawa safety‑control equipment worldwide.
