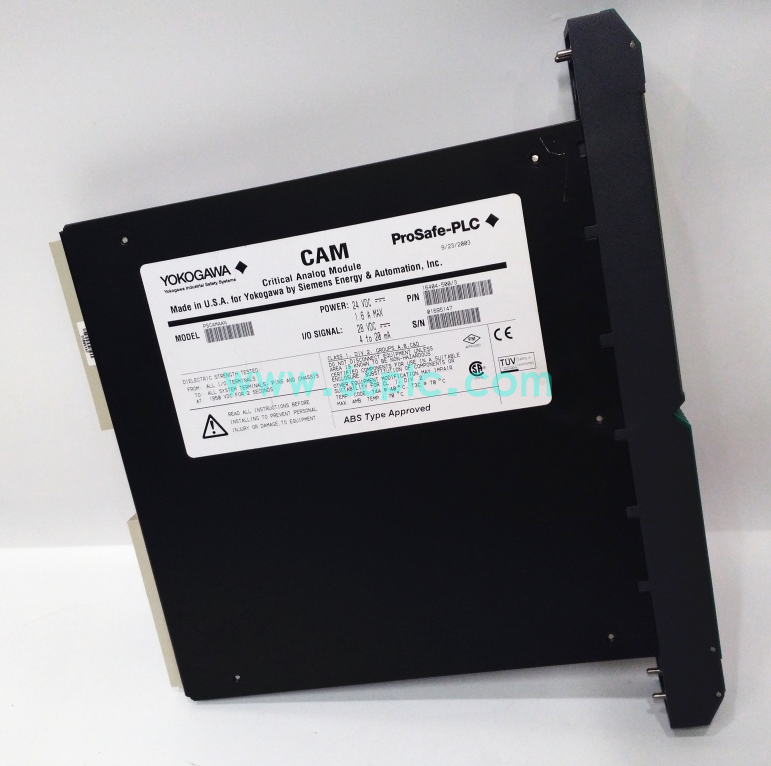

Yokogawa PSCAMAAN 16404‑5003 Critical Analog Module

The Yokogawa PSCAMAAN 16404‑5003 is a safety‑critical analog input module for Yokogawa ProSafe‑PLC SIS safety instrumented systems. It performs high‑precision acquisition of 4‑20mA analog process signals from field transmitters, delivering reliable measurement data to safety logic solver for safety‑related interlock and shutdown logic processing.

This hot‑swappable rack‑mount module features built‑in self‑diagnostic functions for circuit fault detection. It complies with functional‑safety standards and fits ProSafe‑PLC rack slots, widely deployed within SIS cabinets of petrochemical, refinery and power‑generation sites for safety‑loop signal monitoring.

Main Specifications

• Brand: Yokogawa; Model: PSCAMAAN 16404‑5003; Type: SIS Critical Analog Input Module
• Applicable System: Yokogawa ProSafe‑PLC Safety Instrumented System
• Core Tasks: 4‑20mA analog signal acquisition, on‑board self‑diagnosis, safety‑loop data transmission, hot‑swap operation
• Signal Interface: Field analog signal terminals, internal backplane bus connector for ProSafe‑PLC rack
• Installation: Plug‑in slot‑mount on ProSafe‑PLC module rack, supports hot‑swap replacement
• Signal Type: 4‑20 mA process current loop for field transmitters
• Operating Environment: 0℃ ~ +55℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Mechanical: Standard ProSafe‑PLC module form‑factor, IP20 for cabinet‑internal installation
• Certifications: CE, TÜV certified for IEC61508 SIL‑3 safety‑related application

Core Functions

• Acquire high‑reliability 4‑20 mA analog signals from field pressure, temperature and flow transmitters within SIS safety loops.
• Transmit measured process data to ProSafe‑PLC safety CPU via backplane bus for safety interlock and emergency shutdown logic execution.
• Integrate comprehensive self‑diagnostic mechanism to detect loop breakage, over‑range and internal hardware faults and report fault status to system.
• Support hot‑swap module replacement without shutting down the whole SIS system, reducing maintenance‑caused system downtime.
• Realize safety‑grade signal processing to guarantee data integrity for safety‑critical control loops.
• Industrial‑hardened plug‑in hardware supports long‑term stable continuous operation inside safety‑instrumented control cabinets.

Application Scenarios

• Spare‑part replacement for Yokogawa ProSafe‑PLC SIS safety cabinets in petrochemical plants, refineries and power‑generation facilities.
• Analog signal acquisition hardware for ESD emergency shutdown and burner‑management safety instrumented control loops.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy Yokogawa safety‑PLC equipment.
• Matching analog input module cooperating with ProSafe‑PLC rack chassis, safety CPU and corresponding terminal units.
• Retrofit replacement for aged analog modules with signal drift, self‑diagnosis failure and communication abnormal faults.

• Global aftermarket spare supply for automation maintenance teams maintaining Yokogawa safety‑control equipment worldwide.
