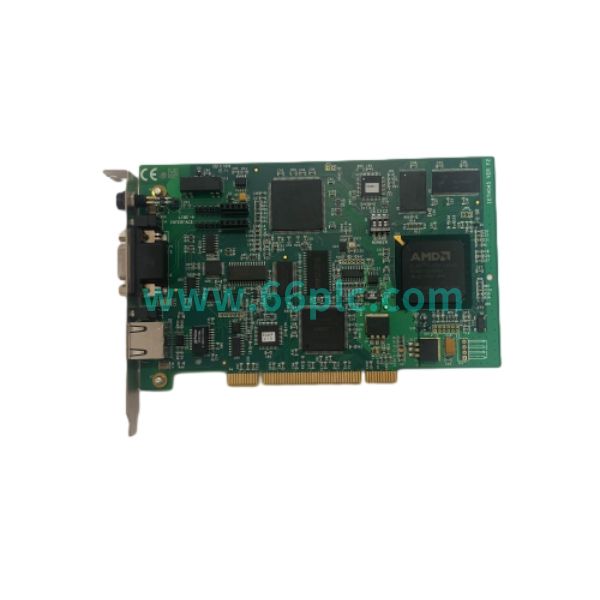

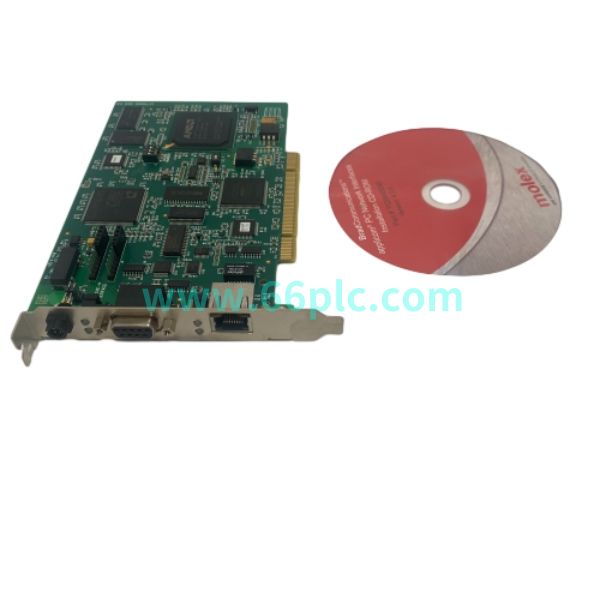

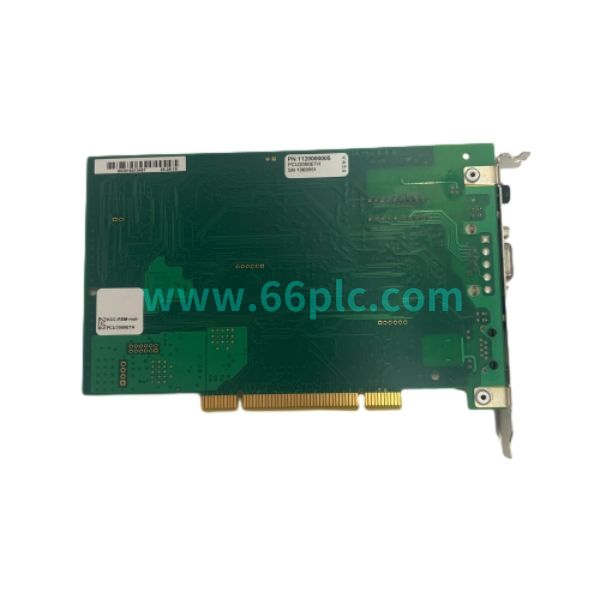

Molex APP-ETH-PCU-C（PCU2000ETH）是原Woodhead Applicom系列PCI总线独立工业以太网通讯卡，搭载AMD SC520独立通讯处理器，板载16MB内存与4MB闪存，自带固件协议栈，不占用主机CPU算力，专门用于上位机和自动化控制器之间的数据交互。

Molex APP-ETH-PCU-C (PCU2000ETH) is an Applicom PCI Ethernet card inherited from Woodhead. Equipped with AMD SC520 processor, 16MB SDRAM and 4MB Flash, it runs protocol stack locally and relieves host CPU load for stable industrial data communication between PC and automation controllers.

支持10/100Mbps自适应RJ45以太网接口，PCI/PCI-X通用插槽（3.3V/5V兼容），配套Applicom驱动、DAServer、OPC接口，广泛适配Wonderware等SCADA/HMI平台。该型号已停产，存量备件多用于电厂、化工老上位机系统通讯卡替换维保。

It supports 10/100Mbps auto-negotiation RJ45 port, universal PCI/PCI-X 3.3V/5V slot. Compatible with Applicom driver, DAServer and OPC for Wonderware SCADA. This card is discontinued, used as legacy spare for old SCADA workstation maintenance in power and chemical plants.

Main Specifications 技术参数

• 1. Product Series / 产品系列：Molex Brad Applicom PCU2000 Communication Card Series

• 2. Part Numbers / 型号编码：APP-ETH-PCU-C (PCU2000ETH PCI Ethernet Communication Card)

• 3. Function Type / 类型：PCI Industrial Ethernet Communication Card 独立工业以太网通讯板卡

• 4. Key Features / 特性：AMD SC520,16MB SDRAM,4MB Flash,10/100Mbps RJ45,PCI/PCI-X,OPC/DAS supported

• 5. Mounting / 安装：工控机PCI标准插槽安装

Core Functions 核心功能

• 1. 板载独立处理器运行工业协议栈，卸载主机通讯运算负载。
  Onboard processor runs protocol stack offloading communication workload from host PC.

• 2. 10/100Mbps以太网，对接PLC、DCS、涡轮控制器，采集实时过程数据。
  10/100Mbps Ethernet to collect real-time data from PLC, DCS and turbine controllers.

• 3. 配套Applicom DAServer、OPC服务，对接Wonderware等主流SCADA监控软件。
  Work with Applicom DAServer and OPC for Wonderware and other SCADA platforms.

• 4. PCI/PCI-X双电压兼容，适配老式工控工作站、工业服务器主机。
  Universal 3.3V/5V PCI/PCI-X slot compatible with legacy industrial workstations.

• 5. 确定性通讯调度，相比普通网卡，降低通讯抖动，保障关键数据稳定上传。
  Deterministic communication scheduling reduces jitter for critical process data.

Application Scenarios 应用场景

• 1. 电厂、化工存量Wonderware SCADA上位机通讯卡故障替换维保。
  Spare replacement for failed Applicom cards on legacy Wonderware SCADA workstations.

• 2. DCS、涡轮控制系统上位监控站，独立通道采集机组实时参数。
  Independent data acquisition channel for DCS and turbine control supervisory stations.

• 3. 老项目OPC服务器、数据采集工作站通讯链路硬件配套。
  Communication hardware for OPC server and data acquisition workstations.

• 4. 海外工控项目备件配套，打包交付Applicom驱动光盘与授权资料。
  Spare package for overseas automation projects with driver disk and documentation.

• 5. 存量控制系统改造迁移，维持原有通讯协议链路不改动程序。
  System migration retrofit to keep original communication protocol without program modification.
