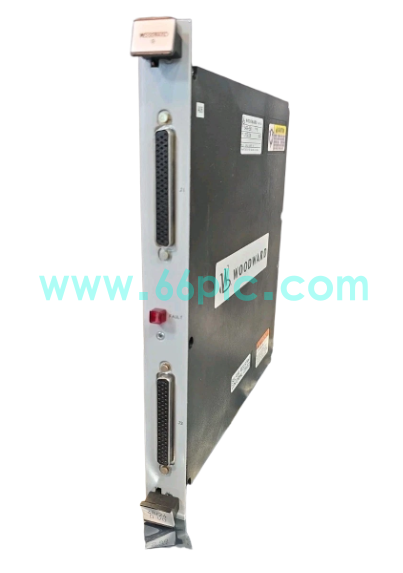

Woodward 5466‑258 MicroNet Simplex Discrete I/O Module

The Woodward 5466‑258 is a simplex high‑density discrete input/output module for Woodward MicroNet and Vertex‑Pro turbomachinery control platforms. It provides 48‑channel digital input and 24‑channel relay output interfaces to collect field switch status and execute interlock, trip and sequence control commands for gas turbines, steam turbines and compressor control systems. It serves as a critical digital signal interface between field devices and the main CPU controller.

This rack‑mount plug‑in module fits into 8‑slot or 14‑slot MicroNet chassis, communicating with the CPU via internal backplane bus. A front‑panel red fault LED offers quick status indication for on‑site troubleshooting. It supports hot‑swap operation and can work within simplex or redundant system configurations. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of power generation and oil‑gas turbomachinery control equipment.

Main Specifications

1. Brand: Woodward; Model: 5466‑258; Type: Simplex 48/24 Discrete Input / Output Module
2. Compatible System: Woodward MicroNet‑Plus, Vertex‑‑Pro chassis, 8‑slot /14‑slot MicroNet chassis and CPU controllers
3. Core Functions: 48‑channel discrete signal acquisition, 24‑channel relay output control, backplane high‑speed data exchange, channel fault monitoring, fault self‑diagnosis, hot‑swap support, front‑panel fault LED indication
4. Port Resource: Field discrete I/O terminal connectors, MicroNet dedicated backplane connector, front‑panel fault diagnostic LED indicator
5. Supported Feature: ATEX / CE / DNV certification, simplex architecture, hot‑swap module replacement, industrial anti‑vibration and anti‑interference design, suitable for Class I Division 2 hazardous locations
6. Hardware Feature: Standard rack plug‑in module, backplane powered, passive cooling, USA origin, industrial‑grade turbomachinery hardware
7. Supply Status: Aftermarket spare part for legacy MicroNet turbine and compressor control system maintenance and component replacement

Core Functions

1. Collect digital on‑off status signals from field limit switches, auxiliary contacts and safety interlock sensors of turbine and compressor units.
2. Transmit collected discrete status data to MicroNet main CPU through chassis internal high‑speed backplane bus for logic judgment and event recording.
3. Receive control commands from CPU and drive relay output contacts to execute trip protection, interlock action and auxiliary equipment sequence control.
4. Real‑time monitor module operating condition and channel abnormalities, trigger fault alarm and display fault state via front‑panel red LED indicator.
5. Support hot‑swap online replacement, allowing faulty module swap without shutting down the whole turbomachinery control system.
6. Support both simplex and redundant system layout, meeting different reliability requirements of power plant and oil‑gas compressor control projects.

Application Scenarios

1. High‑density digital signal interface unit for power‑plant turbine and oil‑gas compressor adopting Woodward MicroNet / Vertex‑‑Pro control platform.
2. Fault discrete‑I/O‑module replacement and routine maintenance of existing MicroNet turbomachinery control cabinets.
3. Digital‑I/O hardware upgrading and technical transformation for aging legacy turbine governing, protection and compressor control systems.
4. Emergency swap for discrete I/O module failure of continuously‑running critical power‑generation and compressor production facilities.
5. Spare‑parts stocking for power‑plant instrument‑maintenance teams supporting Woodward MicroNet series turbomachinery control products.
6. Aftermarket spare supply for turbine‑control‑system overhaul and technical‑service projects of power and oil‑gas industrial facilities.

FAQ

1. Q: Can Woodward 5466‑258 work independently without MicroNet chassis and CPU controller?
   A: It must be installed in matched MicroNet chassis and cooperate with main CPU controller, cannot operate as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Fault LED alarm, partial input channel no status response, relay output failure, abnormal discrete signal transmission between module and CPU.
3. Q: How to complete commissioning and diagnosis?
   A: Inspect rack power supply, backplane contact and field wiring; check channel status and fault codes through turbine control HMI diagnostic interface.
