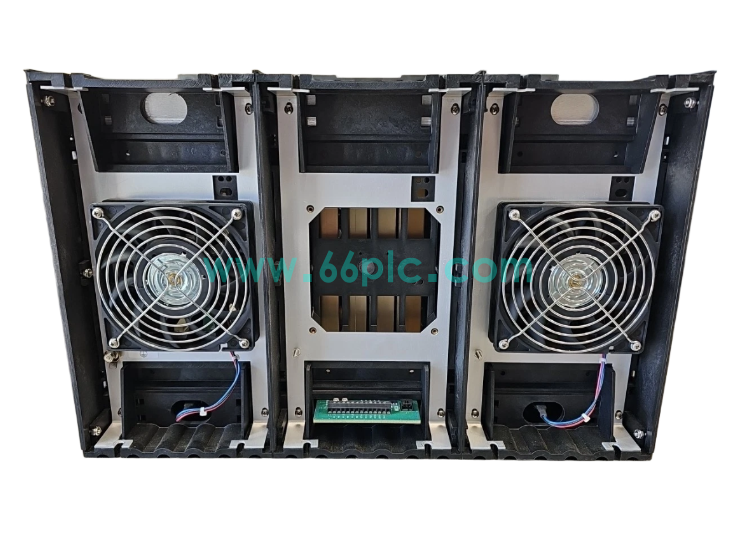

Woodward 5453‑759 MicroNet‑Plus 14‑Slot Control Chassis

The Woodward 5453‑759 is a 14‑slot chassis assembly for the MicroNet‑Plus turbine control platform. It acts as the mechanical and electrical backbone, accommodating CPU, I/O, communication and redundant power supply modules for gas and steam turbine control systems. The integrated backplane realizes high‑speed parallel bus communication between all inserted modules.

This rack‑mount chassis is equipped with built‑in cooling fan units and supports hot‑swap module replacement. It supports TMR redundant architecture for high‑reliability power generation applications. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of Woodward MicroNet‑Plus turbine control cabinets in power plants and oil‑gas facilities.

Main Specifications

1. Brand: Woodward; Model: 5453‑759; Type: MicroNet‑Plus 14‑Slot Control Chassis Assembly
2. Compatible System: Woodward MicroNet‑Plus turbine control system, MicroNet‑Plus CPU, I/O, communication and power modules
3. Core Functions: Module mechanical support, backplane high‑speed bus interconnection, power distribution, built‑in fan cooling, hot‑swap supporting, TMR redundancy architecture compatibility, system‑level mechanical protection
4. Port Resource: Internal high‑speed backplane, multiple module slots, redundant power supply slots, built‑in cooling fan assembly, rack‑mount fixing structure
5. Supported Feature: 14 universal slots, redundant power supply support, hot‑swap module operation, forced air cooling, TMR safety‑control compatible, industrial anti‑vibration design
6. Hardware Feature: 19‑inch rack‑mount form factor, USA origin, integrated backplane and cooling unit, industrial‑grade chassis housing
7. Supply Status: Aftermarket spare part for legacy MicroNet‑Plus turbine control system maintenance and component replacement

Core Functions

1. Provide mechanical installation positions for MicroNet‑Plus CPU, analog/digital I/O, communication and redundant power modules.
2. Realize high‑speed parallel bus data exchange among all inserted modules through internal dedicated backplane circuit board.
3. Distribute system power supply to each slot module and support multi‑set redundant power supply configuration to improve system availability.
4. Built‑in cooling fan assembly provides forced air convection heat dissipation for long‑time continuous operation of turbine control hardware.
5. Allow hot‑swap online replacement of individual I/O and communication modules without shutting down the whole chassis system.
6. Support triple modular redundant system layout to satisfy high‑reliability control requirements for critical turbine protection and governing loops.

Application Scenarios

1. System backbone chassis for power plant and oil‑gas plant adopting Woodward MicroNet‑Plus gas / steam turbine control platform.
2. Fault chassis‑assembly replacement and routine maintenance of existing MicroNet‑Plus turbine control cabinets.
3. System‑framework hardware upgrading and technical transformation for aging legacy turbine governing and protection control systems.
4. Emergency swap for chassis backplane or cooling‑system failure of continuously‑running critical power‑generation turbine facilities.
5. Spare‑parts stocking for power‑plant instrument‑maintenance teams supporting Woodward MicroNet‑Plus series turbine control products.
6. Aftermarket spare supply for turbine‑control‑system overhaul and technical‑service projects of power and oil‑gas industrial facilities.

FAQ

1. Q: Can Woodward 5453‑759 work independently without MicroNet‑Plus CPU and matched modules?
   A: It is only a chassis backplane assembly, must be equipped with CPU, power and I/O modules, cannot operate as standalone hardware.
2. Q: What are typical chassis failure symptoms?
   A: Fan fault alarm, partial slot communication failure, unstable power distribution, over‑temperature warning, abnormal communication between internal modules.
3. Q: How to complete commissioning and diagnosis?
   A: Inspect fan running status, backplane connectors and power input; check chassis health status and fault log through turbine control HMI diagnostic interface.
