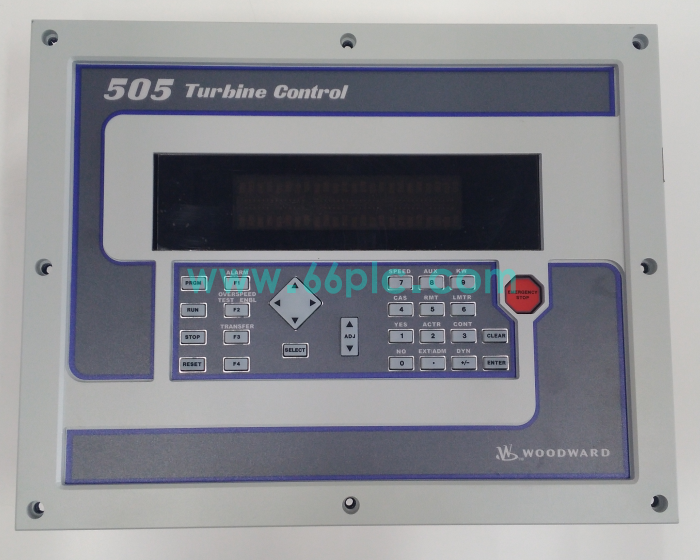

Woodward 9907-1183 505E Digital Turbine Governor Controller

9907-1183 belongs to Woodward classic 505E series integrated turbine digital governor, dedicated to single/extraction/back-pressure steam turbines, turboexpanders and small generator sets. It integrates LCD display, physical operation keypad and multi-channel I/O terminals, adopting 32-bit high-speed microcontroller to realize dual PID closed-loop control of rotating speed and extraction pressure, with built-in overspeed, overpressure and zero-speed detection safety protection logic.

This panel-mounted all-in-one controller supports dual Modbus RTU communication ports for data interconnection with ABB PM511 DCS and Bently Nevada monitoring systems. It adopts password-locked program storage to avoid misoperation, with wide DC power supply and strong industrial anti-interference performance. Woodward has stopped original production, and it is globally supplied as core maintenance spare parts for thermal power, chemical plant and waste heat power generation turbine units.

Main Specifications

• Brand: Woodward; Model: 9907-1183; Series: 505E Turbine Control Governor
• Power Supply: 18–32VDC wide-range DC control power
• Display & Operation: Built-in LCD screen + full function physical keypad, emergency stop red button
• Communication: Dual independent Modbus RTU/ASCII serial ports, remote parameter upload/download
• Control Algorithm: Dual PID for speed & extraction pressure, ratio limit, load sharing logic
• I/O Configuration: Multi-channel analog 4–20mA input/output, digital switch input, actuator drive output
• Operating Temperature: -25℃ ~ +65℃, humidity 5%~95% non-condensing
• Physical Size: 356 × 279 × 102mm, panel embedded installation
• Core Protection: Overspeed trip, zero-speed detection, overpressure interlock, watchdog fault self-test
• Compatible Matching: ABB PM511 DCS CPU, PP836 HMI, MOX12-P3509 Bently power supply
• Lifecycle Status: Discontinued original production, aftermarket overhaul spare only

Core Functions

• Collect turbine speed sensor signal and extraction pressure 4–20mA analog signal, drive steam valve actuator to stabilize unit speed and extraction pressure via PID regulation.
• Support extraction/admission steam turbine compound control, automatically balance power generation load and process steam supply demand of chemical plant production lines.
• Dual Modbus communication realizes real-time upload of turbine speed, valve position, fault codes and running parameters to upper DCS/SCADA remote monitoring platform.
• Password encryption program storage prevents unauthorized parameter modification; all configuration data is retained after power failure without repeated setting.
• Integrated complete safety interlock logic triggers fast valve shutdown when overspeed, zero-speed loss or overpressure occurs to protect turbine unit from damage.
• All-in-one panel design integrates display, operation and control, supporting on-site local manual operation and remote automatic switching control modes.

Application Scenarios

• Turbine governor spare replacement for industrial single/extraction steam turbine units of chemical plant waste heat power stations.
• Speed control core spare parts for small generator steam turbines and turboexpander power recovery systems in refineries.
• Maintenance backup stock for paper mill, metallurgical factory self-owned power plant and thermal power plant auxiliary turbine control cabinets.
• Matching turbine control unit cooperating with ABB Advant OCS DCS system, PM511 CPU and PP836 local operation HMI panel.
• Retrofit overhaul components for geothermal power, biomass power generation small steam turbine automatic control systems.

• Global aftermarket spare inventory for energy and chemical industry workshops maintaining legacy Woodward turbine governor hardware.
