Triconex 9563‑810 Digital Input Termination Panel

The Triconex 9563‑810 is a dedicated digital input termination panel for Triconex TMR safety instrumented systems. It serves as the physical interface between field discrete devices and Triconex digital input modules, providing fuse protection, signal filtering and reliable wiring termination for safety‑related 24VDC input signals.

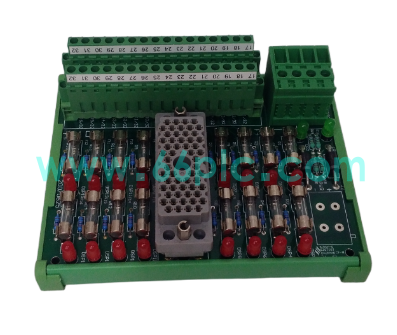

This DIN‑rail mount termination board integrates channel‑by‑channel fuses and blown‑fuse indicator LEDs. It simplifies field wiring work and protects SIS I/O modules from short‑circuit surges, designed for continuous reliable operation in oil‑gas, petrochemical and power‑plant safety cabinets.

Main Specifications

• Brand: Triconex; Model: 9563‑810; Type: Digital Input Termination Panel
• Applicable System: Triconex TMR SIS Safety Instrumented System
• Core Tasks: Field signal termination, channel fuse protection, surge filtering, fault indication
• Signal Interface: 24VDC discrete field wiring, matching connector for Triconex I/O module
• Installation: Standard DIN‑rail mounting inside safety control cabinet
• Rated Signal: 24VDC, typical leakage current 2.5mA, max 3.3mA per channel
• Operating Environment: ‑40℃ ~ +70℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Diagnostic: On‑board LED indicators for blown‑fuse and channel fault status
• Certifications: CE, complies with IEC61508 process‑industry EMC and safety standards

Core Functions

• Provide stable wiring termination for field limit switches, safety contact sensors and interlock devices.
• Equipped with individual channel fuses to isolate short‑circuit faults and protect downstream SIS input modules.
• Transfer filtered discrete field signals to Triconex digital input modules via dedicated matching connectors.
• Visual LED indication for blown fuses, helping maintenance staff quickly locate field‑side circuit failures.
• Support convenient field wiring, module replacement without re‑terminating field cables.
• Industrial‑grade flame‑retardant hardware design adapts to long‑term operation in hazardous industrial sites.

Application Scenarios

• Spare‑part replacement for Triconex SIS safety cabinets in petrochemical plants, oil‑gas facilities and power‑generation sites.
• Field‑wiring termination assembly for ESD emergency shutdown and burner management safety instrumented systems.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy Triconex SIS equipment.
• Matching termination panel cooperating with SIS digital input modules, power supply unit and system HMI panel.
• Retrofit replacement for old termination boards with fuse burnout and circuit damage faults.

• Global aftermarket spare supply for automation maintenance teams maintaining Triconex safety equipment worldwide.
