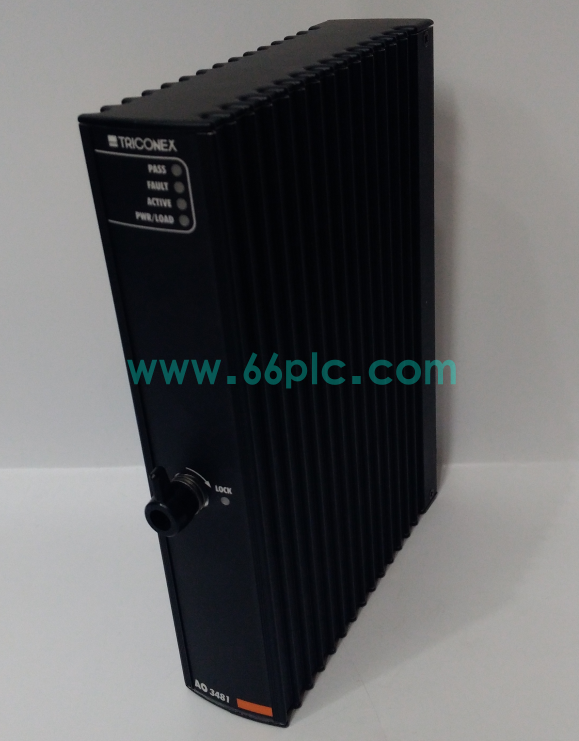

Triconex AO3481 Analog Output Module

The Triconex AO3481 is an 8‑channel TMR analog output module for Triconex safety instrumented systems. It converts digital control commands from main processors into 4‑20mA or 0‑10V analog signals to drive field control valves and actuators within safety‑related process loops.

This triple‑modular‑redundant rack‑mount module supports hot‑swap replacement and comprehensive per‑channel diagnostics. It provides channel‑to‑system galvanic isolation, built for stable continuous operation in petrochemical, oil‑gas and power‑plant SIS safety cabinets.

Main Specifications

• Brand: Triconex (Schneider Electric); Model: AO3481; Type: 8‑Channel Analog Output Module
• Applicable System: Triconex TMR SIS Safety Instrumented System
• Core Tasks: Digital‑to‑analog conversion, field actuator driving, channel fault diagnosis, TMR voting processing
• Signal Interface: 4‑20mA / 0‑10V software‑selectable output, Tricon backplane bus interface
• Installation: Standard Triconex rack plug‑in module, hot‑swap supported
• Performance: 16‑bit resolution, ±0.1% full‑scale accuracy, 10 ms channel ｕｐｄａｔｅ rate
• Isolation: 1500 V channel‑to‑system galvanic isolation; load: 750Ω max for 4‑20mA signal
• Operating Environment: ‑40℃ ~ +70℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade
• Diagnostic: On‑board LED indicators for module status and individual channel fault alarm
• Certifications: CE, complies with IEC61508 SIL‑3 functional safety and process‑industry EMC standards

Core Functions

• Convert triple‑voted digital control values into high‑precision analog output signals for control valves and position actuators.
• Support software‑configurable 4‑20 mA current or 0‑10 V voltage output mode for each individual channel.
• Adopt triple‑modular‑redundant hardware architecture to eliminate single‑point‑failure risk for safety‑critical output loops.
• Perform continuous channel diagnostics including open‑circuit, short‑circuit and over‑range fault detection, report faults to SIS host.
• Allow hot‑swap online replacement without shutting down the whole safety instrumented system.
• Industrial‑grade hardware design adapts to long‑term continuous operation in hazardous process‑industry sites.

Application Scenarios

• Spare‑part replacement for Triconex SIS safety cabinets in petrochemical plants, oil‑gas facilities and power‑generation sites.
• Analog output control component for ESD emergency shutdown and safety‑related process regulation instrument systems.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy Triconex SIS equipment.
• Matching analog output module cooperating with SIS main processor, termination panel and system HMI operation panel.
• Retrofit replacement for old analog output modules with signal drift and hardware damage faults.

• Global aftermarket spare supply for automation maintenance teams maintaining Triconex safety equipment worldwide.
