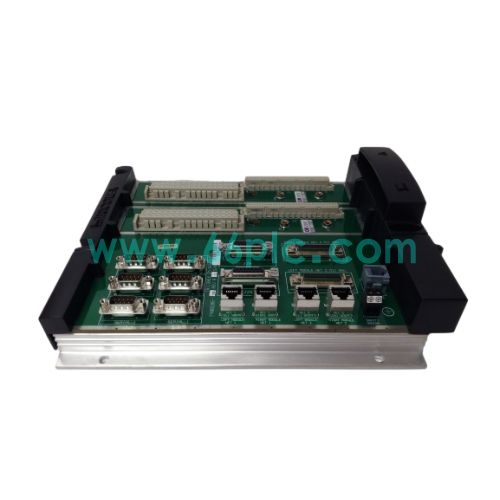

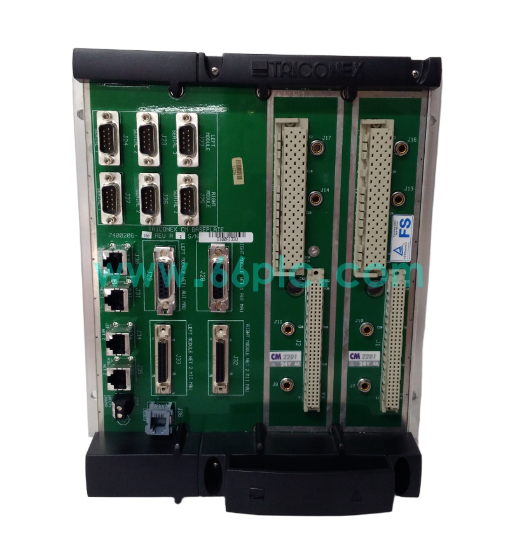

Triconex CM2201 Communication Module

The Triconex CM2201 is a dedicated communication module for the Tricon safety‑instrumented system. It establishes data communication between the Tricon main controller and external host systems, transmitting safety‑related process data, alarm events and diagnostic information. It serves as the key data exchange gateway for triple‑modular‑redundant safety control systems.

This hot‑swappable rack‑mount module supports standard communication protocols for upper‑level DCS and HMI systems. It features built‑in hardware self‑diagnosis, and front‑panel LED indicators display link, activity and fault status. Widely used as aftermarket spare hardware for petrochemical, power‑plant safety‑system maintenance and safety‑control‑system retrofitting projects.

Main Specifications

• Brand: Triconex; Model: CM2201; Type: Safety System Communication Module
• Compatible System: Tricon TMR safety PLC rack, Tricon backplane bus, DCS, HMI monitoring host
• Core Function: Safety data transmission, protocol conversion, event‑alarm upload, hardware self‑diagnosis, hot‑swap support
• Port Resource: Tricon backplane interface, communication interface terminals, link/activity/fault LED indicators
• Supported Feature: TMR triple redundant compatible, hot‑swap replacement, communication fault detection, safety‑data integrity verification
• Hardware Feature: Standard Tricon rack plug‑in structure, 5VDC/24VDC logic power supply, industrial anti‑interference design
• Supply Status: Aftermarket spare part for legacy Tricon safety‑instrumented‑system maintenance and component replacement

Core Functions

• Obtain process variables, alarm messages and system diagnostic data from Tricon triple‑redundant main controller via backplane bus.
• Carry out protocol conversion, transmit safety‑related real‑time data to external DCS, HMI and monitoring host systems.
• Upload safety event logs and fault records, help operators view safety‑system running status and historical fault information.
• Real‑time monitor communication link state, detect link breakage and data transmission abnormality, trigger corresponding fault indication.
• Support hot‑swap operation, faulty module can be replaced without shutting down the whole safety system to reduce production downtime risk.
• Comply with safety‑system data integrity requirements, ensure reliable and accurate data interaction between safety controller and external systems.

Application Scenarios

• Data gateway communication for safety interlock systems of petrochemical, chemical, power‑plant and oil‑gas production facilities adopting Tricon TMR platform.
• Fault communication‑module replacement and routine maintenance of existing Tricon safety control cabinet racks.
• Communication‑interface hardware upgrading and technical transformation for aging legacy safety‑instrumented control systems.
• Emergency swap for communication‑module failure of continuously‑running key safety‑related production equipment on‑site.
• Spare‑parts stocking for petrochemical and power‑plant instrument‑maintenance teams supporting Triconex safety products.
• Aftermarket spare supply for safety‑system overhaul and technical‑service projects of process‑industry facilities.

FAQ

• Q: Can CM2201 work without Tricon rack and main controller?
  A: It must be installed into Tricon safety rack and cooperate with TMR main processor, cannot complete safety‑data communication as standalone hardware.
• Q: What are typical module failure symptoms?
  A: Upper system no safety‑data ｕｐｄａｔｅ, communication link disconnected, fault LED alarm, event‑alarm information cannot be uploaded normally.

• Q: How to complete commissioning and diagnosis?
  A: Inspect rack power supply and communication wiring; check front‑panel LED status, verify data interaction between Tricon system and upper host via configuration software.
