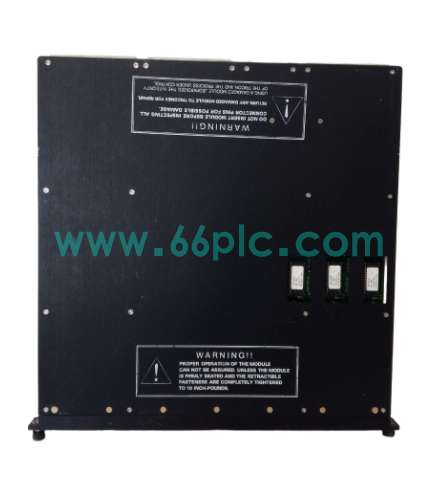

Triconex 3503E Digital Input Module

The Triconex 3503E is a safety‑grade digital input module for Tricon TMR safety instrumented systems. It acquires discrete 24VDC field signals from limit switches, emergency stop devices and dry‑contact sensors, adopting triple‑modular‑redundant architecture to guarantee high‑reliability signal acquisition for safety‑critical SIS loops.

This rack‑slot mount module supports comprehensive channel diagnostics and front‑panel LED status indication. It participates in TMR fault‑voting logic, realizes fault tolerance for single‑channel failure. It serves as critical aftermarket spare for maintenance, overhaul and retrofitting of oil‑gas and chemical‑plant SIS safety cabinets.

Main Specifications

• Brand: Triconex (Schneider); Model:3503E; Type: Safety‑grade Digital Input Module
• Applicable System: Tricon TMR Safety Instrumented System (SIS)
• Input Signal: 24VDC discrete dry‑contact signal; Architecture: Triple Modular Redundancy
• Function: Field discrete‑signal acquisition, TMR fault voting, channel self‑diagnosis, fault status reporting
• Feature: Rack slot‑mount installation, safety‑certified design, on‑board per‑channel diagnostic LED indicators
• Installation: Slot‑mount inside Tricon SIS control chassis
• Power: Back‑plane powered; Operating Environment:0℃ ~ +60℃, 5%‑95% RH non‑condensing
• Certifications: CE, UL, safety‑relevant certification for process‑industry SIS applications

Core Functions

• Collect on‑site discrete signals from emergency‑stop buttons, limit switches and interlock contact devices.
• Adopt triple‑modular‑redundant signal voting mechanism, filter single‑channel fault to avoid false triggering of safety logic.
• Perform continuous self‑diagnosis for each input channel, detect open‑circuit and hardware failure and send alarm to SIS controller.
• Transmit valid digital field data to Tricon main processor for safety interlock and emergency shutdown logic calculation.
• Front‑panel LED indicators display channel running and fault status for fast troubleshooting during commissioning and maintenance.
• Standard slot‑in structure supports convenient replacement during SIS cabinet overhaul and on‑site safety‑loop debugging work.

Application Scenarios

• Safety‑critical digital signal acquisition component for Triconex Tricon SIS safety instrumented systems.
• Critical spare‑part for oil‑gas, petrochemical and chemical‑plant ESD emergency‑shutdown safety cabinets.
• Retrofit and spare replacement for legacy 3503E digital‑input‑module SIS‑hardware upgrade projects.
• SIS cabinet overhaul, safety‑interlock‑loop debugging and faulty safety‑input‑module replacement tasks.
• Spare‑parts inventory for safety‑automation integrators and process‑industry engineering contractors.

• Global aftermarket spare supply for technical teams maintaining Triconex Tricon SIS automation hardware.
