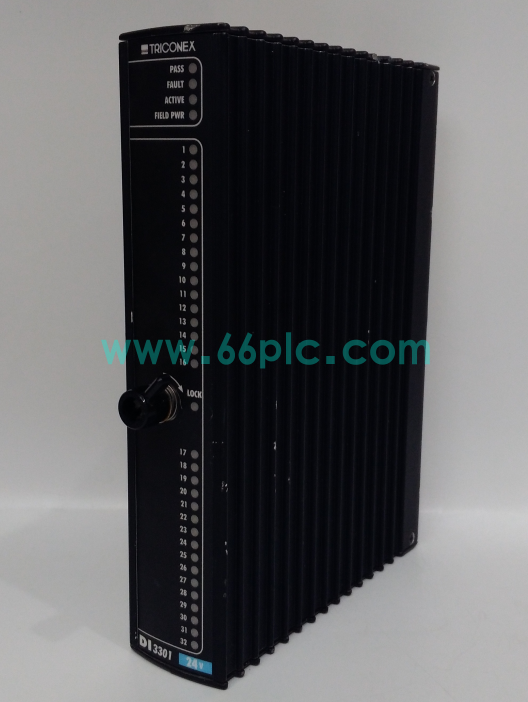

TRICONEX 3301 32-Channel Digital Input Module

The TRICONEX 3301 is a 32-channel 24VDC digital input module designed for Tricon safety instrumented systems (SIS). Built on Triple Modular Redundancy (TMR) architecture, it collects discrete status signals from field switches, sensors and emergency stop devices, and transmits validated data to the main controller.

This module supports both dry contact and active 24VDC input signals, equipped with comprehensive channel diagnostics and hot-swappable function. It meets SIL3 safety standards and provides reliable signal acquisition for safety-critical processes, widely supplied as spare parts for plant maintenance and system upgrade projects.

Main Specifications

• Brand: TRICONEX (Schneider Electric)
• Model: 3301
• Product Type: 32-Channel Digital Input Module
• Architecture: Triple Modular Redundancy (TMR) fault tolerant design
• Input Type: Dry contact / 24VDC active signal
• Operating Input Voltage: 15VDC ~ 30VDC
• Channel isolation and built-in signal filtering circuit
• Support hot-swap replacement without system shutdown
• Safety Level: SIL3 certified for safety instrumented systems
• Installation: Standard Tricon rack plug-in mounting

Core Functions

• Continuously collect 32-channel discrete on-off signals from field safety equipment
• Adopt TMR voting mechanism to eliminate single-point failure risks for signal acquisition
• Detect channel open circuit, short circuit and abnormal input voltage in real time
• Filter industrial electromagnetic interference to avoid false triggering of safety logic
• Realize online module replacement to reduce unplanned production downtime
• Transmit verified digital status data to Tricon main processor via backplane bus
• Fully compatible with Tricon series rack, power supply and other I/O modules
• Cooperate with safety logic to implement ESD, F&G and burner management protection
• Support configuration, monitoring and fault diagnosis via Tristation engineering software
• Industrial-grade hardware design for long-term stable operation in control cabinet

Application Scenarios

• Petrochemical plant Emergency Shutdown System (ESD) control racks
• Oil & gas pipeline and processing station safety instrument systems
• Thermal power plant unit auxiliary equipment safety interlock systems
• Industrial fire and gas (F&G) detection monitoring control units
• Refinery reactor safety protection and process monitoring systems
• Chemical plant burner management safety control equipment
• Offshore platform safety automation and emergency protection cabinets
• Pulp & paper factory high-risk equipment safety interlock systems
• Renovation and expansion of legacy Tricon SIS safety control systems
• Safety system spare parts maintenance and emergency replacement projects
