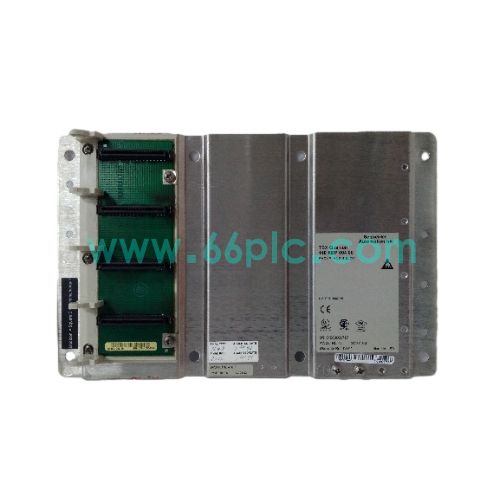

Schneider 140XBP00400 Modicon Quantum 4-Slot Backplane

Schneider 140XBP00400 is a 4-slot rack backplane designed for Modicon Quantum PLC system. It provides electrical backplane bus and mechanical mounting base, enabling power supply, CPU and I/O modules to exchange data and power through internal bus traces.

This passive backplane supports hot-swap of Quantum series plug-in modules. It adopts high-reliability gold-plated connectors for stable signal transmission, and features a sturdy metal frame for cabinet installation. As aftermarket spare parts, it is widely used for maintenance, replacement and retrofit of small-scale Modicon Quantum PLC control cabinets.

Main Specifications

1. Brand: Schneider; Model: 140XBP00400; Type: Modicon Quantum 4-Slot Passive Backplane
2. Compatible System: Modicon Quantum PLC power supply, CPU and series I/O modules
3. Core Functions: Mechanical module mounting, backplane bus signal transmission, power distribution between rack modules
4. Port Resource: 4 module slots, gold-plated bus connectors, cabinet mounting holes
5. Supported Feature: Passive backplane design, hot swap compatible, gold plated contact, industrial EMC protection, wide operating temperature
6. Hardware Feature: 4-slot passive rack, metal housing, cabinet DIN / bolt mounting
7. Supply Status: Aftermarket spare part for Modicon Quantum PLC system maintenance and component replacement

Core Functions

1. Offer 4 mechanical slots for installing Quantum power supply, CPU and I/O modules, fixing all modules firmly inside the control cabinet.
2. Internal bus traces transmit DC power and high-speed communication signals among all modules mounted on the backplane.
3. Gold-plated connectors reduce contact resistance and prevent oxidation, maintaining stable electrical connection under vibration and temperature variation.
4. Passive circuit design without active chips, low failure rate and supports hot-swap operation of individual modules without damaging the whole rack.
5. Standard mounting structure allows easy installation in industrial control cabinets for small automation control projects.
6. Good EMC shielding performance reduces electromagnetic interference impact on bus signal transmission in industrial environments.

Application Scenarios

1. Small PLC rack base for Modicon Quantum automation systems used in factory production lines, water treatment and small process control projects.
2. Fault backplane replacement and routine maintenance of existing 4-slot Quantum PLC control racks.
3. PLC rack hardware upgrading and technical transformation for small-scale legacy Modicon Quantum automation control systems.
4. Emergency swap for backplane connector failure of small automation equipment using Quantum PLC control.
5. Spare-parts stocking for electrical and automation maintenance teams supporting Schneider Modicon Quantum series products.
6. Aftermarket spare supply for small PLC control cabinet overhaul and technical-service projects of industrial automation facilities.

FAQ

1. Q: Can Schneider 140XBP00400 work independently without Quantum power supply, CPU and I/O modules?
   A: It is a passive rack base, must be equipped with matched Quantum modules, cannot run as standalone hardware.
2. Q: What are typical backplane failure symptoms?
   A: Intermittent module offline, unstable bus communication, module power loss, poor contact caused by connector oxidation.
3. Q: How to complete commissioning and diagnosis?
   A: Inspect connector pins for damage and oxidation; install modules and test bus communication and power distribution of each slot.
