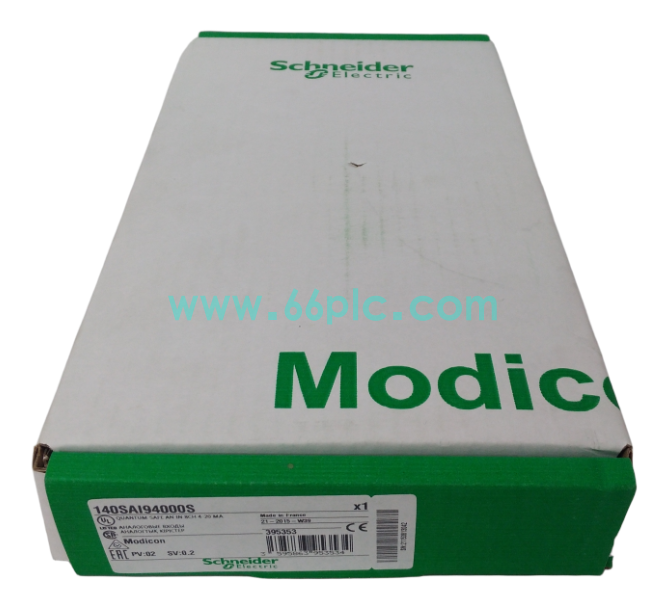

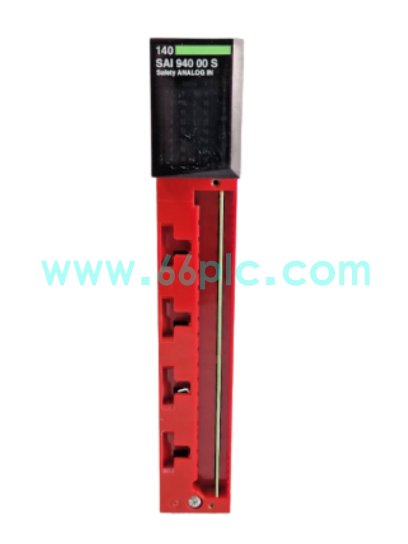

Schneider Electric 140SAI94000S Analog Input Module

The Schneider Electric 140SAI94000S is an 8‑channel safety analog input module for Modicon Quantum safety PLC and SIS systems. It receives 4‑20mA / 0‑25mA current signals from field transmitters and converts analog measurements into safe digital data for critical safety instrumented control loops.

This rack‑mounted I/O module adopts SIL2 safety architecture, continuous self‑diagnosis and channel isolation design. Original production has been discontinued. It is widely supplied as aftermarket spare parts for oil & gas, chemical and power plant safety system maintenance and retrofitting.

Main Specifications

1. Brand:Schneider Electric; Model:140SAI94000S; Type:Safety Analog Input Module
2. Channels:8 differential analog inputs, measuring range 0‑25mA, compatible with 4‑20mA transmitters
3. Resolution:16‑bit, overall accuracy ±0.3%~±0.35% full scale, 15ms overall ｕｐｄａｔｅ time
4. Safety Certification:SIL2, continuous self‑test, wire break and over‑range fault diagnosis
5. Isolation:1500V AC channel‑to‑bus isolation, 500V AC channel‑to‑channel isolation
6. Compatibility:Modicon Quantum safety PLC rack, backplane bus data communication
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Collect safety‑related analog current signals from pressure, level and flow field transmitters.
2. Complete high‑precision A/D conversion and transmit safety‑tagged digital data to Quantum CPU.
3. Detect wire break, overrange and internal hardware faults and trigger safety alarm responses.
4. Built‑in isolation and filtering suppress industrial electromagnetic interference for stable safety monitoring.
5. Support safety logic interlock and emergency shutdown signal acquisition within SIS systems.
6. Provide reliable signal acquisition hardware for high‑integrity safety instrumented systems.

Application Scenarios

1. Safety instrumented monitoring and emergency shutdown loops for oil, gas and chemical facilities.
2. Spare safety I/O replacement and routine maintenance of existing Modicon Quantum SIS racks.
3. Technical renovation and safety reliability upgrade of aging plant safety control cabinets.
4. On‑site troubleshooting and replacement of faulty safety analog input modules on critical units.
5. Spare‑parts stocking for system integrators and SIS safety automation maintenance contractors.
6. Global aftermarket spare supply for technicians maintaining obsolete Schneider Quantum safety hardware.

FAQ

1. Q:What is the difference between 140SAI94000S and ordinary analog input modules?
   A:It is safety‑certified with comprehensive diagnostics, designed for SIS safety shutdown loops instead of standard process control.
2. Q:Which PLC platform does it belong to?
   A:It is exclusively designed for Schneider Modicon Quantum safety PLC racks.

3. Q:Is this safety analog input module still in original production?
   A:Schneider has stopped manufacturing this model, only tested surplus and refurbished spare units are available.
