Product Description

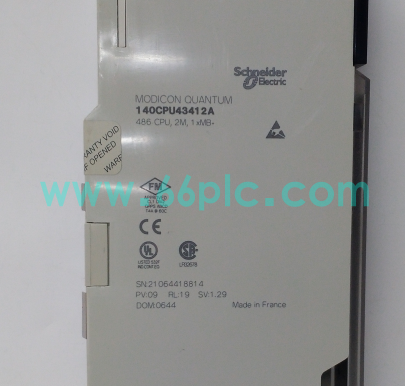

The Schneider 140CPU43412A is a high-performance programmable logic controller core processor belonging to the Modicon Quantum automation platform. Powered by an industrial 80486 microprocessor and equipped with 896kB built-in RAM, it undertakes core tasks including system logic operation, I/O scheduling, program execution and data processing. As the central control unit, it supports large-scale distributed I/O expansion and multi-station network linkage for complex industrial automation systems.

This industrial-grade CPU module integrates Modbus Plus communication interface and intelligent watchdog self-diagnosis mechanism, supporting up to 31 remote network drops for flexible system expansion. It adopts long-life lithium battery data retention design and wide-temperature rugged structure, effectively resisting industrial electromagnetic interference and power fluctuation. With stable deterministic control performance, it ensures 24/7 long-cycle uninterrupted and reliable operation for heavy-duty process control systems.

Main Specifications

1. Full Model: 140CPU43412A; Product Type: Modicon Quantum series high-performance industrial PLC core CPU processor module
2. Applicable System: Schneider Modicon Quantum PLC platform, large-scale process automation and distributed control systems
3. Core Function: System program operation, logic calculation, I/O management, network communication and equipment linkage control
4. Processor Core: Industrial 80486 high-speed microprocessor with powerful real-time computing capability
5. Memory Configuration: 896kB built-in RAM, supporting large-capacity program storage and runtime data caching
6. Network Expansion: Supports up to 31 remote drops, realizing wide-range distributed equipment networking control
7. Communication Interface: Integrated standard Modbus Plus interface for high-speed industrial network data transmission
8. Self-Diagnosis Function: Built-in 250ms watchdog timer for real-time system operation monitoring and fault reset
9. Data Retention: Matched long-life lithium battery with 10-year service life for power-off data protection
10. Operational Reliability: Industrial anti-vibration and anti-interference design, adapting to harsh factory long-term operation

Core Functions

1. Acts as the central core control processor for Schneider Modicon Quantum PLC systems.
2. Executes industrial control programs and high-speed logic operations to drive automated production processes.
3. Manages and schedules full-system I/O points to realize synchronous signal acquisition and output control.
4. Supports Modbus Plus network communication for data interaction with upper hosts and field devices.
5. Implements distributed network expansion to connect multiple remote control stations and equipment nodes.
6. Integrates watchdog monitoring to prevent system crash and ensure operational determinism.
7. Adopts battery-powered data retention to avoid program and parameter loss after power failure.
8. Processes real-time operating data and fault logs to support equipment maintenance and fault tracing.
9. Supports online program debugging and remote configuration to improve system maintenance efficiency.
10. Guarantees stable, precise and continuous operation of large industrial automation control systems.

Application Scenarios

1. Large-scale factory Modicon Quantum PLC automation system core control projects
2. Thermal power, new energy and power industry process control and equipment monitoring systems
3. Petrochemical, chemical and pharmaceutical continuous production automated control scenarios
4. Metallurgy, cement and mining heavy industry high-load equipment linkage control platforms
5. Old Quantum system low-performance CPU module replacement and system upgrading projects
6. Distributed multi-station industrial networking control and remote monitoring system construction
7. Complex electromagnetic environment industrial workshop stable operation core control scenarios
8. 24-hour uninterrupted operation key industrial production full-cycle control guarantee systems
9. Intelligent manufacturing production line multi-equipment synchronous automatic control projects
10. High-stability and high-expandability industrial process automation control occasions
