PILZ 301140 SafetyBUS p Decentralized Digital I/O Module

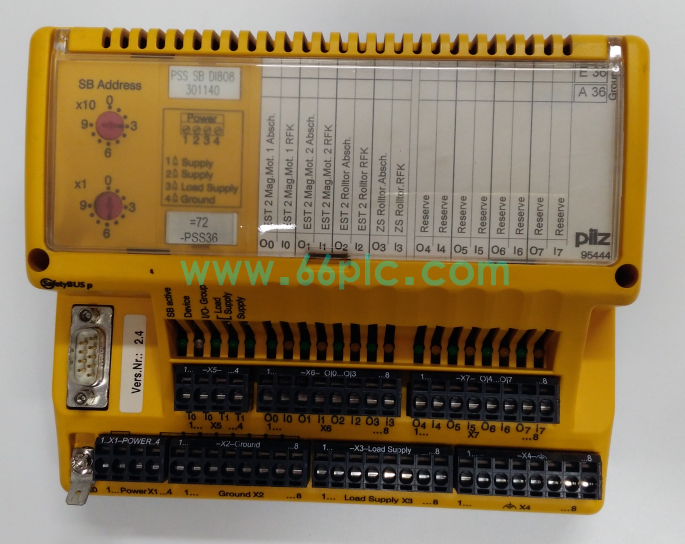

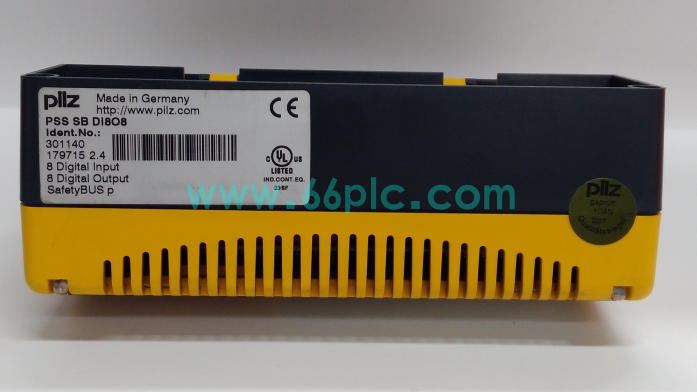

301140 is a decentralized safety I/O module manufactured by PILZ, specialized for SafetyBUS p fieldbus safety control systems. Equipped with 8 safe digital inputs and 8 semiconductor safety outputs, it establishes direct safety signal connection between local field sensors, safety actuators and central safety controllers. The module adopts dual-channel safety circuit design to comply with high-level machinery safety standards, widely used as spare safety components for Centrotherm thermal furnaces, packaging lines and heavy-duty automation equipment.

This DIN-rail mounted yellow safety module supports 24VDC standard industrial power supply, with built-in short-circuit and cross-circuit fault detection circuits. It exchanges safety status data via SafetyBUS p bus cables, realizing distributed safety interlock logic without hardwiring all safety signals back to the main safety PLC. It is a mainstream maintenance spare part for vintage production lines with PILZ safety bus architecture.

Main Specifications

• Brand: PILZ (Germany); Model: 301140; Product Type: SafetyBUS p Distributed Digital I/O Module
• I/O Configuration: 8 safe digital inputs, 8 semiconductor safety outputs
• Power Supply: DC 24V, tolerance range 18V~30VDC
• Fieldbus Interface: SafetyBUS p dedicated bus terminal, pluggable spring-cage wiring
• Safety Rating: PL d / SIL 2 compliant, meets EN ISO 13849-1 and IEC 61508 standards
• Mounting Method: Standard 35mm DIN rail installation, IP20 cabinet protection grade
• Operating Temperature: -20℃ ~ +55℃; Storage Temperature: -40℃ ~ +70℃
• Diagnostic Indicators: Front panel LED lights for power, bus communication, input/output fault alarms
• Housing Feature: Classic yellow safety enclosure, integrated detachable terminal wiring block
• Compatible Equipment: PILZ PNOZmulti safety controllers, Centrotherm diffusion furnace safety control racks

Core Functions

• Collect safety signals from field emergency stop buttons, safety light curtains, door interlock switches and position limit sensors through 8 safe input channels.
• Drive safety contactors, brake valves and alarm indicators via 8 semiconductor outputs to execute equipment safety stop and protection actions.
• Transmit all field safety status and fault codes to central safety PLC through SafetyBUS p bus, realizing distributed safety logic operation.
• Dual-channel redundant circuit design detects single-point faults automatically, triggering safety shutdown to avoid unexpected machinery movement risks.
• Built-in channel short-circuit and wiring error diagnosis, front LED indicators quickly locate faulty input/output channels for on-site maintenance.
• Decentralized layout reduces long-distance safety wiring, lowering cabinet wiring workload and electromagnetic interference of safety signal cables.

Application Scenarios

• Safety I/O spare replacement for Centrotherm solar diffusion furnaces and semiconductor thermal processing equipment safety control systems.
• Distributed safety signal collection module for packaging machinery, automated assembly lines and robot workstation safety cabinets.
• Maintenance backup stock for metallurgical rolling mills, printing equipment and plastic injection molding machine safety bus control racks.
• Safety interlock expansion component for conveyor, lifting and material handling heavy-duty automation production lines.
• Retrofit spare parts for vintage industrial furnaces and vacuum processing machines equipped with PILZ SafetyBUS p safety architecture.
• Long-term spare inventory for electronics, new energy and manufacturing factory automation maintenance workshops.
