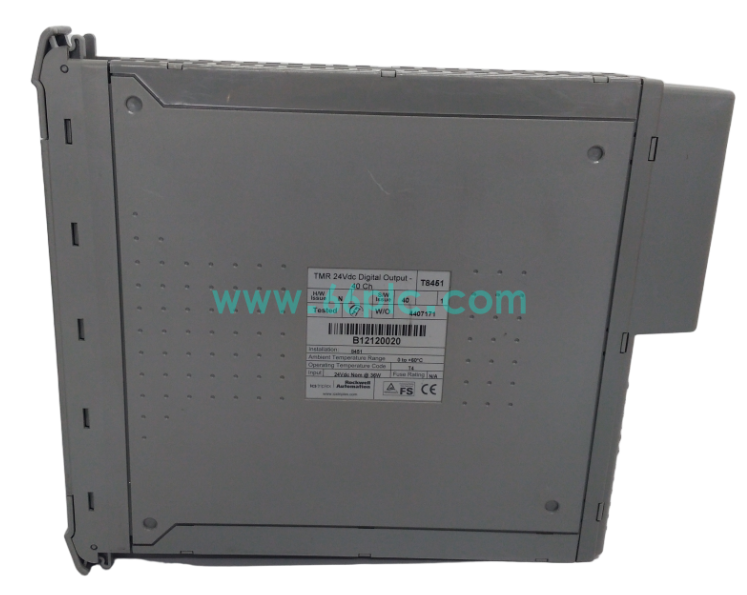

ICS TRIPLEX T8451 Trusted TMR 24V DC Digital Output Module

ICS TRIPLEX T8451 is a high‑integrity TMR digital output module for the Trusted safety instrumented system. Based on triple‑modular‑redundant fault‑tolerant architecture, it outputs 24VDC control signals to drive field valves, solenoids and interlock actuators for safety‑critical industrial safety loops.

This rack‑mount safety output module has 40 output channels with independent power grouping, complies with SIL3 safety requirements and supports hot‑swap function. It is widely used as replacement spare‑part for on‑site troubleshooting, equipment maintenance and safety system retrofit projects.

Main Specifications

• Brand: ICS TRIPLEX (Rockwell Automation)
• Model: T8451
• Product Type: TMR 24V DC Digital Output Module
• Channel Quantity: 40‑channel digital output, 5 independent power groups
• Field Output Voltage: 18‑32 VDC
• Backplane Supply Voltage: 20‑32 VDC
• Safety Level: IEC 61508 SIL3 safety certification
• Architecture: Triple Modular Redundant (TMR) fault‑tolerant design
• Feature: Support hot‑swap without system shutdown
• Mounting: Trusted system rack‑mount installation
• Operating Temperature Range:‑5℃ ~ +60℃
• Application: Spare‑part replacement for safety‑related automation equipment

Core Functions

• Receive safety logic commands from Trusted main controller and output 24VDC drive signals to field actuators
• TMR triple‑modular redundant design masks single‑point hardware faults to guarantee safe output performance
• Independent power group design realizes group‑by‑group power supply management for output channels
• Built‑in channel monitoring detects output short‑circuit, open‑circuit and load abnormal conditions
• Front‑panel LED indicators display channel status, module running and fault alarm information
• Support hot‑swap operation, allows module replacement without stopping the whole safety instrumented system
• Execute safety interlock output logic for emergency shutdown and protection of key production units
• Standard rack‑mount structure facilitates quick disassembly for convenient on‑site spare‑part replacement
• SIL3‑grade hardware meets strict output‑control requirements of safety‑critical industrial loops

Application Scenarios

• Petrochemical plant SIS safety instrumented system cabinet configuration
• Power‑plant boiler and turbine emergency shutdown interlock control projects
• On‑site digital output module fault replacement and daily Trusted system maintenance
• Safety instrumented system reconstruction and output‑channel expansion upgrade projects
• Legacy ICS TRIPLEX Trusted safety‑system spare‑parts replacement scenarios
• Spare‑parts inventory backup for safety‑critical production unit control cabinets
• Heavy‑industry safety‑related automation cabinet hardware maintenance supporting projects
