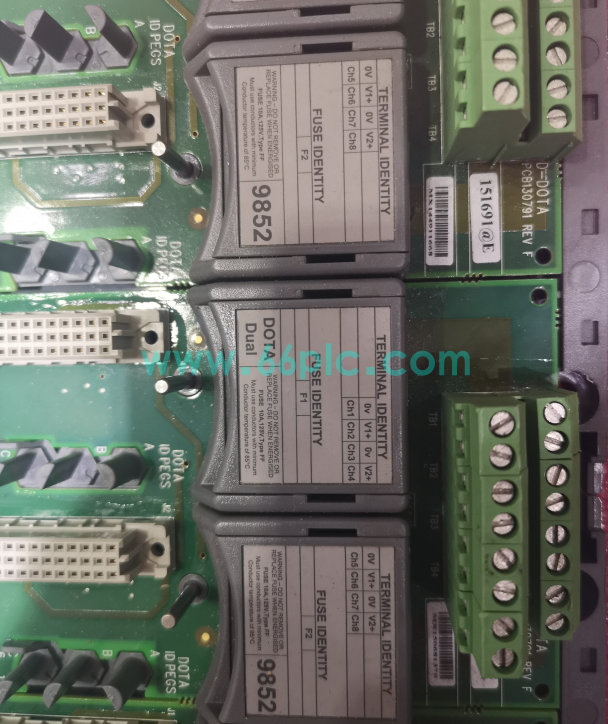

ICS TRIPLEX T9852 Digital Output Termination Assembly

The ICS TRIPLEX T9852 is a dedicated digital output termination assembly designed for the Trusted Safety Instrumented System. It serves as the wiring interface matched with T9451 digital output module, connecting rack I/O hardware to field actuators, solenoid valves and safety trip devices for discrete control signal transmission.

This termination unit integrates built-in circuit protection to defend modules against field short-circuit and voltage surge faults. Clear terminal layout supports convenient signal testing and routine maintenance, widely stocked as spare parts for safety interlock and emergency shutdown system overhaul and upgrade projects.

Main Specifications

• Brand: ICS TRIPLEX (Rockwell Automation)
• Model: T9852 (commonly referred to as 9852)
• Product Type: Digital Output Termination Assembly
• Matching Module: Trusted T9451 digital output module
• Applicable Signal: 24VDC discrete safety control output signal
• Built-in channel overcurrent and surge protection circuit
• Channel-to-channel isolation to reduce electromagnetic interference
• Operating Temperature Range: -20°C ~ +70°C
• Suitable for standard Trusted rack installation
• Meet the configuration requirements of SIL3 safety instrumented system

Core Functions

• Establish stable wiring transition between T9451 DO modules and field safety actuators
• Prevent internal I/O modules from damage caused by field cable short circuit and voltage surges
• Maintain stable output loop performance to ensure reliable execution of safety trip commands
• Provide accessible terminals for on-site circuit debugging, testing and fault troubleshooting
• Suppress cross-channel interference under complex industrial electromagnetic environment
• Support quick disassembly and replacement during system maintenance procedures
• Fully compatible with Trusted series racks, power supplies and other TMR safety modules
• Cooperate with digital output modules to realize emergency shutdown safety control logic
• Standardized terminal arrangement optimizes cabinet wiring layout and inspection efficiency
• Industrial-grade hardware design ensures long-term stable continuous cabinet operation

Application Scenarios

• Petrochemical plant Emergency Shutdown System (ESD) safety control racks
• Oil & gas processing station and pipeline safety instrumented systems
• Thermal power plant boiler auxiliary equipment safety interlock control cabinets
• Industrial Fire & Gas (F&G) detection actuator drive control units
• Refinery reactor emergency trip and protection control loops
• Chemical plant high-risk process safety interlock automation platforms
• Offshore platform process equipment safety actuation control cabinets
• Pulp & paper factory critical equipment safety interlock monitoring racks
• Renovation and expansion of legacy ICS TRIPLEX Trusted SIS platforms
• Safety instrumented system termination spare parts maintenance and replacement projects
