Product Description

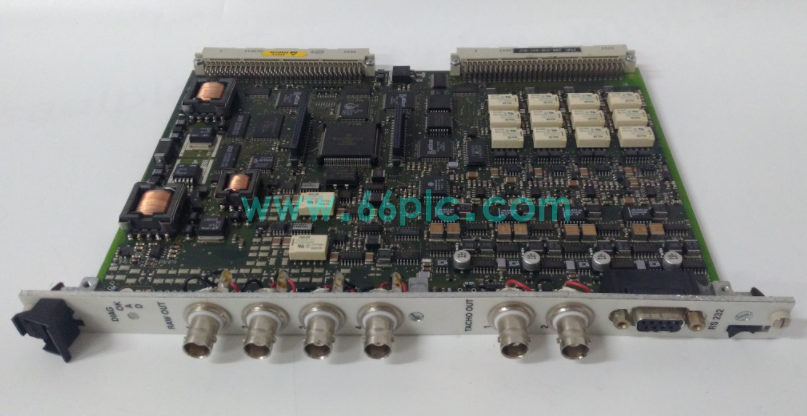

The Vibro-Meter MPC4, designated 200-510-017-017 and 200-510-111-013, is a high-performance multi-channel machinery protection core card for the VM600 monitoring system. It supports synchronous acquisition and processing of dynamic vibration signals and phase reference speed signals, serving as the key hardware for real-time condition monitoring, abnormal judgment and safety protection of rotating machinery.

Adopting advanced digital signal processing architecture and fully programmable channel configuration, this module features high measurement accuracy and fast response capability. It integrates complete alarm logic and fault protection output functions, with strong on-site electromagnetic interference resistance and environmental adaptability. It ensures 24/7 stable and reliable operation of high-speed rotating equipment monitoring and protection systems in heavy industrial scenarios.

Main Specifications

1. Full Model: MPC4 (200-510-017-017 / 200-510-111-013); Product Type: VM600 system multi-channel machinery vibration protection monitoring card
2. Applicable System: Vibro-Meter VM600 industrial machinery condition monitoring and protection system platform
3. Core Function: Dynamic vibration signal acquisition, phase speed signal detection, data processing, alarm judgment and protection output
4. Channel Configuration: Equipped with 4 independent dynamic signal channels and 2 phase reference speed input channels
5. Signal Adaptation: Programmable for acceleration, velocity and displacement vibration signal measurement modes
6. Processing Performance: High-precision digital sampling and filtering, low-delay real-time data analysis and calculation
7. Protection Logic: Built-in multi-level threshold alarm and interlock protection output logic for mechanical faults
8. Communication Compatibility: Perfectly matched with VM600 system backplane and upper monitoring software
9. Anti-Interference Design: Industrial-grade electromagnetic shielding, adapting to complex workshop electromagnetic environments
10. Operational Reliability: Long-cycle continuous operation capability, compliant with industrial machinery safety monitoring standards

Core Functions

1. Acts as the core signal monitoring and protection processing card for Vibro-Meter VM600 monitoring systems.
2. Supports simultaneous collection of four groups of mechanical vibration dynamic signals to reflect equipment operating status.
3. Accurately acquires dual-channel phase and speed signals to judge rotating equipment operating frequency and state.
4. Realizes flexible switching of vibration measurement modes to adapt to diversified mechanical detection demands.
5. Processes and analyzes original vibration data to filter noise and output accurate characteristic parameters.
6. Triggers graded alarm signals when vibration and speed exceed standard thresholds to realize early fault warning.
7. Outputs protection interlock signals to ensure safe shutdown and risk isolation of faulty equipment.
8. Stores operating data and fault records to support post-fault analysis and equipment maintenance.
9. Supports system parameter configuration and remote monitoring to improve intelligent operation level.
10. Guarantees safe, stable and efficient operation of industrial key rotating machinery equipment.

Application Scenarios

1. Thermal power plant steam turbine, generator and auxiliary rotating equipment monitoring systems
2. Petrochemical high-speed compressor, pump unit and mechanical safety protection projects
3. Wind power and new energy unit fan equipment vibration monitoring and fault early warning scenarios
4. Metallurgical heavy industry large rotating machinery condition monitoring and protection platforms
5. Oil and gas field process key equipment real-time state detection and safety interlock systems
6. Industrial high-speed rotating equipment fault diagnosis and predictive maintenance supporting projects
7. Old VM600 system MPC4 card replacement and machinery monitoring precision upgrading transformation
8. Harsh industrial electromagnetic environment high-stability signal acquisition and protection scenarios
9. Power and process industry key equipment full-cycle safety monitoring guarantee systems
10. Industrial intelligent monitoring platform mechanical vibration data acquisition and analysis projects
