Product Description

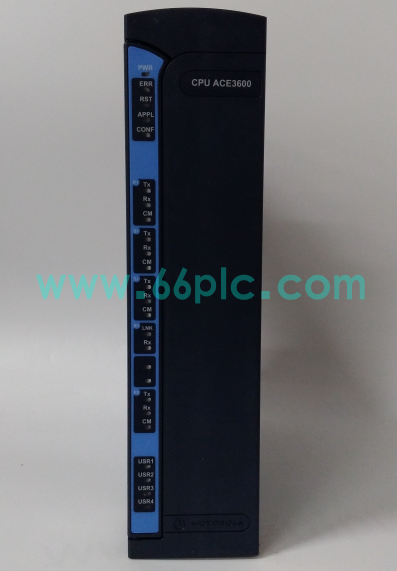

The Motorola FLN3524A is a high-performance PowerPC-based CPU core module for the ACE3600 industrial control system. It serves as the central processing unit for logic operation, program execution and system scheduling, supporting stable operation of mid-to-large-scale industrial automation and process control platforms.

Adopting VMEbus architecture and industrial fault-tolerant design, the module integrates multi-port Ethernet and serial communication interfaces for multi-protocol data transmission. It features wide-temperature resistance and excellent environmental adaptability. With reliable computing performance and self-diagnosis functions, it ensures 24/7 stable operation for critical industrial control systems.

Main Specifications

1. Full Part Number: FLN3524A; Product Type: ACE3600 series industrial PowerPC core CPU control module
2. Applicable System: Motorola ACE3600 industrial automation and process control systems
3. Core Function: System logic calculation, program execution, data scheduling and multi-device communication management
4. Processor Architecture: Industrial-grade PowerPC processor for high-stability control task processing
5. Bus Standard: Compliant with VMEbus industrial bus specification for high-speed internal data interaction
6. Communication Ports: Equipped with Ethernet and multi-channel RS232/422/485 serial interfaces
7. Protocol Support: Compatible with Modbus TCP, Modbus Plus and other mainstream industrial protocols
8. Environmental Performance: -40°C to +85°C ultra-wide temperature range for harsh industrial scenarios
9. Diagnostic Feature: Built-in system self-diagnosis mechanism for real-time operating status monitoring
10. Reliability: Industrial fault-tolerant design, supporting long-cycle uninterrupted critical control operation

Core Functions

1. Acts as the core processing and scheduling unit for Motorola ACE3600 industrial control systems.
2. Executes industrial control programs and complex logic operations to ensure accurate system control.
3. Manages multi-protocol communication data interaction between field devices and upper systems.
4. Supports system fault diagnosis and status monitoring to improve operational stability.
5. Provides powerful computing support for large-scale automation linkage control tasks.
6. Guarantees long-term reliable and low-fault operation of industrial process control platforms.

Application Scenarios

1. Petrochemical and chemical industry large-scale process automation control systems
2. Thermal power and energy industry critical equipment monitoring and control platforms
3. Industrial manufacturing multi-device linkage and centralized scheduling control scenarios
4. Harsh environment industrial automation system core computing and processing units
5. Replacement and performance upgrading of aging CPU modules for ACE3600 systems
