Product Description

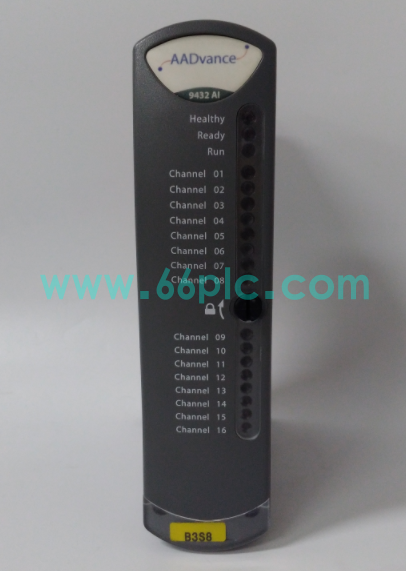

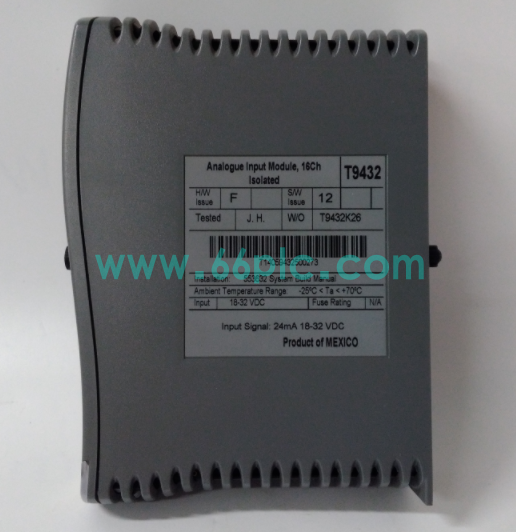

The ICS TRIPLEX T9432 is a high-precision safety-grade analog input module developed exclusively for ICS TRIPLEX AADvance TMR safety instrumented systems (SIS). Serving as the core high-density process signal acquisition unit for high-integrity industrial safety control platforms, it undertakes multi-channel analog parameter sampling, high-resolution AD conversion, signal validity verification and real-time safety data transmission tasks. It is dedicated to collecting critical process variables such as industrial pressure, temperature, flow and liquid level, providing accurate and reliable analog data basis for safety logic judgment, process closed-loop regulation and equipment safety interlock protection, and is widely deployed in high-risk industrial scenarios that require continuous and precise process monitoring.

Adopting industrial safety-grade isolated circuit architecture and high-precision signal processing algorithm, this module integrates 16 independent high-density analog input channels, supporting standard industrial voltage and current signal access to adapt to various field transmitters. It features ultra-high measurement accuracy of ±0.01% and stable 100Hz high-frequency sampling capability, effectively capturing real-time subtle changes of process parameters. Each channel adopts independent electrical isolation design, thoroughly eliminating inter-channel crosstalk and ground loop interference, ensuring long-term consistency and repeatability of measurement data in harsh electromagnetic environments. Built-in multi-stage signal filtering, noise suppression and temperature drift correction mechanisms greatly reduce on-site signal jitter and sampling deviation. Equipped with full-time channel status monitoring, signal over-range detection and module fault self-diagnosis alarm functions, it supports rapid fault location and on-site maintenance. With industrial-grade ultra-wide temperature resistance, rugged aluminum alloy structure and long-term anti-aging performance, it supports 24/7 uninterrupted high-precision analog signal acquisition for mission-critical industrial SIS safety systems.

Main Specifications

1. Full Part Number: T9432; Product Type: AADvance series 16-channel high-density isolated safety analog input module
2. Applicable System: ICS TRIPLEX AADvance safety instrumented systems, TMR fault-tolerant SIS control platforms
3. Core Function: Field analog process signal acquisition, high-resolution AD conversion, signal conditioning and safety data verification transmission
4. Channel Configuration: 16 fully independent high-density analog input channels for multi-point synchronous process parameter monitoring
5. Signal Adaptation: Compatible with standard industrial 4–20mA current and -10V～+10V voltage analog signals
6. Measurement Accuracy: Ultra-high precision of ±0.01% full scale, ensuring micro-level process parameter identification
7. Sampling Performance: 100Hz stable high-frequency sampling rate, realizing real-time tracking of dynamic process changes
8. Isolation Design: Per-channel independent electrical isolation structure, resisting ground loop interference and signal crosstalk
9. Signal Processing: Built-in temperature drift correction and multi-stage filtering algorithm to eliminate field high-frequency noise
10. Diagnostic Mechanism: Full-time channel status monitoring, signal loss, over-range abnormality and automatic fault alarm
11. Protection Mechanism: Integrated overvoltage, overcurrent and surge suppression multi-dimensional circuit safety protection
12. Anti-Interference Ability: Professional industrial EMC electromagnetic compatibility design, adapting to strong interference industrial environments
13. Environmental Performance: -40°C to +85°C ultra-wide operating temperature range, vibration-proof and moisture-proof rugged structure
14. Structural Feature: Compact high-density modular design, saving cabinet space and facilitating quick installation and maintenance
15. Matching Performance: 100% compatible with AADvance system racks, safety controllers and upper configuration software
16. Safety Reliability: High-level safety integrity certification, suitable for long-cycle uninterrupted precision safety monitoring tasks

Core Functions

1. Act as the high-density precision analog acquisition core unit for ICS TRIPLEX AADvance industrial safety instrumented systems.
2. Realize synchronous high-precision sampling of 16-channel industrial process analog parameters to capture real-time operating data.
3. Complete high-resolution AD conversion and signal conditioning to filter invalid interference and ensure data authenticity.
4. Support ultra-stable low-drift measurement output to provide accurate data support for SIS safety logic judgment.
5. Execute full-time self-diagnosis and signal abnormality early warning to improve system safety and on-site maintainability.
6. Guarantee long-term high-stability, high-precision and uninterrupted process parameter monitoring for high-risk industrial safety systems.

Application Scenarios

1. Petrochemical high-risk reaction process SIS system multi-point temperature, pressure and flow precision monitoring systems
2. Thermal power plant AADvance safety control system key process analog parameter acquisition and protection platforms
3. Chemical, coal and new energy industry high-density safety analog signal monitoring and data verification scenarios
4. Industrial critical process fault-tolerant control system high-precision parameter tracking and risk early warning systems
5. Replacement and precision upgrading of aging analog input modules for ICS TRIPLEX AADvance SIS systems
