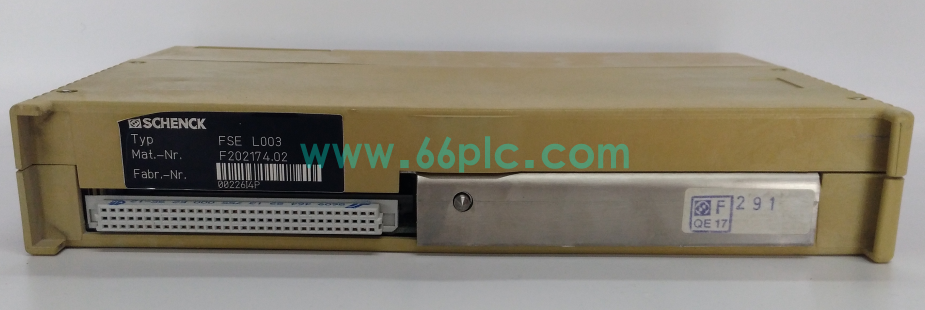

SCHENCK FSEL003 F202174.02 Tension Measurement Control Module

FSEL003 with drawing code F202174.02 is a dedicated tension and force measurement control module manufactured by SCHENCK Process, a leading brand for industrial weighing and tension control systems. It serves as the signal processing core matching SCHENCK strain gauge load cells and force sensors, converting weak millivolt sensor signals into standard digital and analog output signals for closed-loop tension regulation. Equipped with multiple DB9 serial communication ports, it realizes data interaction with upper PLC and DCS control systems.

This rack-mounted metal module adopts high-precision signal amplification and filtering circuits to suppress industrial electromagnetic interference in textile, film, metal rolling production lines. It integrates self-calibration, overload detection and fault diagnosis functions. As discontinued legacy industrial hardware, it is widely supplied as maintenance spare parts for vintage continuous production tension control equipment worldwide.

Main Specifications

• Brand: SCHENCK; Model: FSEL003; Drawing No.: F202174.02; Product Type: Tension Control Signal Module
• Sensor Input: Supports strain gauge load cell, sensitivity 2 mV/V, max measuring load 20kN
• Signal Processing: High-gain instrumentation amplifier, low-pass noise filtering, 16-bit AD conversion precision
• Communication Interfaces: Multi-channel DB9 serial ports, supporting RS485 industrial bus protocol
• Analog Output: Standard 4–20mA tension feedback signal for DCS/PLC closed-loop control
• Power Supply: 24VDC industrial power input, stable low ripple power circuit design
• Operating Environment: -10℃ ~ +55℃ working temperature, anti-vibration reinforced metal housing
• Diagnostic Features: Front panel LED indicators for power, sensor connection, overload and communication faults
• Mounting Standard: Standard cabinet rack plug-in installation, compatible with SCHENCK tension control rack system
• Lifecycle Status: Discontinued original production, only available as aftermarket maintenance spare parts

Core Functions

• Collect tiny millivolt strain signals from tension load cells installed on unwinding, winding and roller stands of continuous production lines.
• Amplify, filter and digitize raw sensor signals, output standard 4–20mA analog tension value to drive variable frequency drives for constant tension control.
• Transmit real-time tension data, calibration parameters and overload alarm codes to upper control systems via RS485 serial bus for centralized monitoring.
• Built-in automatic zero calibration and span adjustment functions, supporting on-site one-click calibration of tension sensors without extra signal simulators.
• Real-time overload protection logic triggers output limiting signals when material breakage or excessive tension occurs to prevent equipment and raw material damage.
• Modular rack plug-and-play design allows single module replacement without full system shutdown, greatly shortening production line maintenance downtime.

Application Scenarios

• Spare tension control module replacement for textile spinning, weaving and film coating production line SCHENCK control racks.
• Force signal processing spare parts for metal strip rolling, copper foil and aluminum foil continuous processing constant tension systems.
• Maintenance backup stock for paper making, printing and plastic film winding/unwinding automation control cabinets.
• Matching signal acquisition unit for SCHENCK series load cells and Foxboro FBM216 HART analog input DCS modules.
• Retrofit overhaul components for vintage battery electrode, optical film and packaging material tension control equipment.
• Global aftermarket spare inventory for automation maintenance workshops servicing discontinued SCHENCK tension measurement hardware.
