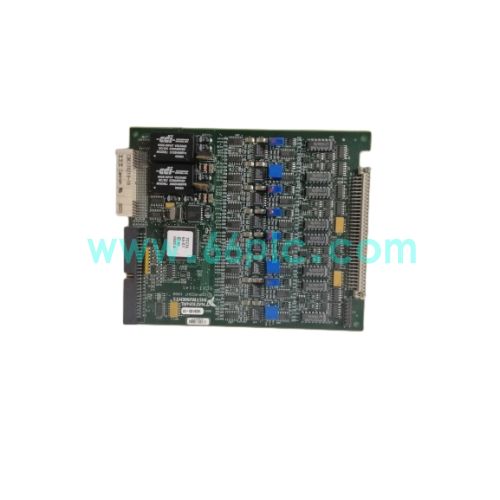

NI SCXI-1141 182610D-01 8-Channel Signal Conditioning Module

NI SCXI-1141 (Part No.182610D-01) is an 8-channel elliptic lowpass filter signal conditioning module for NI SCXI data acquisition platform. It adopts elliptic filter design with high stopband attenuation, effectively eliminating high-frequency noise and anti-aliasing interference before analog-to-digital conversion.

This module supports differential analog input and programmable cutoff frequency settings. It can be installed in standard SCXI chassis and works with NI DAQ hardware and LabVIEW software. Widely used in vibration testing, acoustic measurement and strain signal acquisition, it serves as spare parts for maintenance of legacy test systems.

Main Specifications

1. Brand: National Instruments (NI); Model: SCXI-1141; Part Number:182610D-01; Series: SCXI; Type: Lowpass Filter Signal Conditioning Module
2. Channels: 8 differential analog input channels; Filter type: Elliptic lowpass filter
3. Cutoff frequency options: 4Hz,10Hz,100Hz,1kHz,10kHz; Stopband attenuation＞80dB
4. Input impedance:1MΩ||10pF; Programmable gain; Common-mode noise suppression
5. Mounting: SCXI chassis; Operating Temp:0℃ ~ +50℃
6. Compatible terminal block: SCXI-1301; Software: LabVIEW, NI-DAQmx legacy driver
7. Supply Status: Discontinued DAQ conditioning module, available as spare parts for old test system replacement

Core Functions

1. Elliptic lowpass filtering function to suppress high-frequency noise and prevent aliasing distortion in sampling.
2. Programmable filter cutoff frequency to match different sensor signal bandwidth requirements.
3. Differential input architecture to greatly reduce on-site common-mode interference for stable measurement.
4. Adjustable channel gain to amplify weak sensor signals and improve measurement resolution.
5. Standard SCXI bus interface for seamless integration with SCXI chassis and DAQ acquisition cards.
6. Compact module structure, easy disassembly and replacement for on-site test bench maintenance.

Application Scenarios

1. Vibration, noise and acoustic dynamic signal testing for mechanical equipment condition monitoring.
2. Strain, pressure and force sensor signal conditioning in material and structural test labs.
3. Automotive and aerospace component dynamic measurement and fatigue test systems.
4. Faulty module replacement and maintenance for existing NI SCXI measurement platforms.
5. Spare parts inventory for factory and laboratory legacy data acquisition systems.
6. Retrofit of multi-channel precision signal conditioning test benches.

FAQ

1. Q: What is NI SCXI-1141 182610D-01 used for?
   A: It is an 8-channel elliptic lowpass filter signal conditioning module, for anti-aliasing filtering and amplification of analog sensor signals in SCXI DAQ systems.
2. Q: Which terminal block is matched with SCXI-1141?
   A: SCXI-1301 terminal block is recommended for wiring connection of sensors and signal lines.
3. Q: Is SCXI-1141 still in production?
   A: NI has discontinued this model, only spare modules are available for maintenance of old test systems.
