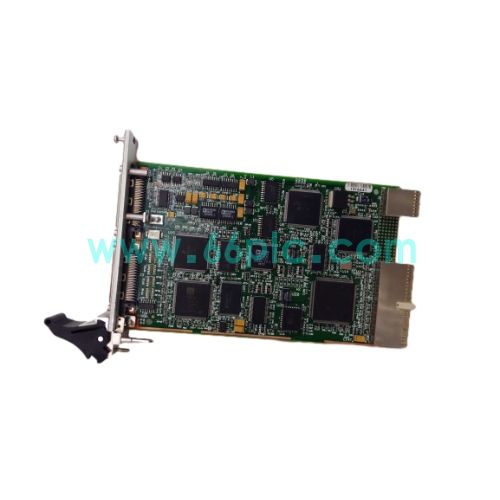

National Instruments PXI‑7344 4‑Axis Servo & Stepper Motion Controller Module

The National Instruments PXI‑7344 is a high‑performance 4‑axis motion controller built for PXI modular instrument platforms. Supporting both servo and stepper motor control, it adopts dual‑processor onboard real‑time operating system, executing multi‑axis coordinated interpolation, electronic gearing and contour trajectory generation, offloading heavy motion computation tasks from host PC to guarantee deterministic motion performance. It serves as core motion control hardware for precision automated test and manufacturing equipment.

This single‑slot PXI module delivers up to 20 MHz encoder feedback acquisition, equipped with 32‑bit configurable digital I/O and multi‑channel analog input interfaces. It supports RTSI real‑time trigger bus to realize hardware synchronization with DAQ, vision and other PXI modules, fully compatible with LabVIEW and NI‑Motion driver software for rapid application development. Widely supplied as aftermarket spare part for semiconductor, laser processing and automated test industries for equipment maintenance, spare replacement and system upgrade projects.

Main Specifications

1. Brand: National Instruments(NI); Model: PXI‑7344; Type: 4‑Axis Servo & Stepper Motion Controller Module
2. Compatible System: Standard PXI chassis, LabVIEW, NI‑Motion driver software, RTSI trigger synchronization bus
3. Core Function: Multi‑axis servo/stepper motion control, trajectory generation, closed‑loop position feedback, hardware trigger synchronization
4. Port Resource: 4‑axis encoder interface, step/direction pulse output, 32‑channel TTL digital I/O, 4‑channel analog input, RTSI trigger connector
5. Supported Feature: Linear & circular interpolation, electronic gearing, camming, onboard real‑time multitasking program execution, S‑curve profile
6. Hardware Feature: Single‑slot PXI form factor, dual‑processor architecture, high‑speed encoder input up to 20 MHz, onboard PID servo control algorithm
7. Supply Status: Aftermarket spare part for legacy precision automation and PXI test‑system maintenance and component replacement

Core Functions

1. Control up to four axes of stepper or servo motors, support point‑to‑point positioning, linear and circular interpolation, contouring movement for complex path trajectory control.
2. Run multiple motion programs independently via onboard real‑time multitasking OS, reduce host PC computing burden and improve motion determinism and stability.
3. High‑speed quadrature encoder feedback acquisition, cooperate with built‑in PID/PIVff servo algorithm to realize high‑precision closed‑loop position and velocity control.
4. Provide 32‑bit motion‑synchronized digital I/O, trigger cameras, valves and other actuators at specified motion position without external auxiliary control hardware.
5. Realize hardware‑level synchronization with DAQ, image acquisition and other PXI modules through RTSI bus, complete precise linkage of motion, measurement and detection actions.
6. Support host‑based programming and embedded onboard running two working modes, adapt to diversified development requirements of automated equipment and test systems.

Application Scenarios

1. Precision motion control for semiconductor equipment, wafer prober, sorting machine and micro‑positioning stages in electronic manufacturing industry.
2. Motion‑linked automated test systems built on PXI platform, coordinate mechanical movement and data acquisition measurement tasks.
3. Laser processing equipment, precision automation assembly equipment, laboratory multi‑axis motion experiment platform.
4. Fault motion‑controller‑module replacement and routine maintenance of existing PXI chassis‑based automation test equipment.
5. Spare‑parts stocking for equipment maintenance teams and system integrators supporting NI PXI legacy automation platforms.
6. Aftermarket spare supply for technical‑service and equipment retrofitting projects of precision automated production and test systems.

FAQ

1. Q: Can PXI‑7344 work without PXI chassis?
   A: It must be inserted into standard PXI chassis for power supply and bus communication, cannot complete motion control function as standalone hardware.
2. Q: What are typical module failure symptoms?
   A: Motor axis abnormal movement, encoder feedback loss, motion program execution exception, failure of RTSI trigger synchronous action, digital I/O no response.

3. Q: How to complete commissioning and diagnosis?
   A: Inspect PXI chassis power supply, motor drive and encoder wiring; configure axis parameters via LabVIEW NI‑Motion, run motion test program and read hardware diagnostic status.
