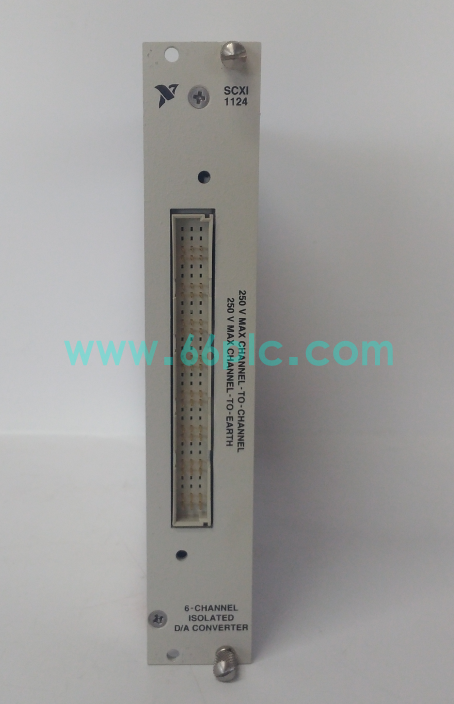

NI SCXI-1124 6-Channel Isolated Analog Output Module

The NI SCXI-1124 is a 6-channel isolated analog output module built for the SCXI signal conditioning platform. Each independent channel can be configured for voltage or current output, with 250 Vrms isolation to separate the control system from field actuators and avoid ground loop interference.

This discontinued legacy DAQ module requires a compatible SCXI chassis and NI DAQ hardware. It is widely used as spare replacement for process control systems, test benches and automation equipment built on older NI measurement platforms.

Main Specifications

• Brand: NI (National Instruments); Model: SCXI-1124; Type: Isolated Analog Output Module
• Channel Quantity: 6 isolated DAC channels, software configurable for voltage or current mode
• Output Range: Voltage 0~1V / 0~5V / 0~10V, ±1V / ±5V / ±10V; Current 0~20mA
• Isolation Rating: 250 Vrms per channel, suppress ground loop noise effectively
• Resolution: 12-bit; Onboard EEPROM for saving factory calibration parameters
• Operating Environment: 0℃ ~ +50℃, 5%‑95% RH non‑condensing
• Certifications: CE, conform to industrial measurement EMC and safety standards

Core Functions

• Generate isolated analog voltage or current control signals to drive valves, regulators and other field actuators.
• Support software configuration of output ranges and onboard storage of calibration data for stable precision.
• Channel-to-chassis isolation eliminates common-mode interference in complex industrial wiring environments.
• Multiple modules can work in one SCXI chassis to expand analog output channels for large control systems.
• Standard SCXI plug-in design enables quick installation, removal and on-site module replacement.
• Compatible with LabVIEW, NI-DAQ drivers for program control, parameter configuration and automated testing.

Application Scenarios

• Industrial process control for regulating valves, frequency converters and analog actuators.
• Aerospace and automotive component test benches with isolated analog control output.
• Upgrade and spare replacement for legacy NI SCXI distributed measurement and control platforms.
• Laboratory automated calibration equipment and material performance testing systems.
• Maintenance spare inventory for test system integrators and engineering contractors.

• Global aftermarket spare supply for teams maintaining NI old-generation DAQ hardware.
