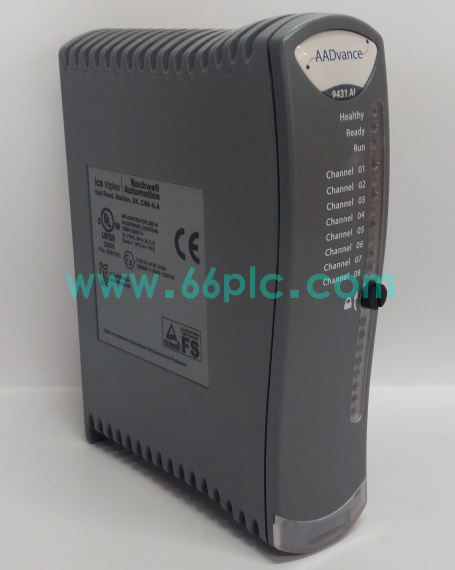

ICS Triplex T9431 Isolated Analog Input Module

T9431 is an 8-channel fully isolated analog input module for Rockwell ICS Triplex AADvance safety control platform, certified SIL3 for SIS safety instrument systems. It accepts 4–20mA two-wire transmitter signals and 0–10V voltage signals, with independent galvanic isolation per channel to eliminate ground loop interference. It transmits high-precision converted digital data to AADvance TMR controllers via redundant rack backplane bus for critical process closed-loop monitoring.

This safety-grade I/O module supports hot-swap maintenance without rack power shutdown. Conformal coated PCB and compact industrial housing resist damp, vibration and corrosive gas in power, petrochemical and offshore sites. Front panel LED indicators display power, bus communication and individual channel fault status for fast on-site troubleshooting.

Main Specifications

• Brand: ICS Triplex (Rockwell Automation); Model: T9431; Series: AADvance SIS Control System
• Channel Layout: 8 fully isolated analog input channels, compatible with 4–20mA / 0–10VDC field sensors
• Conversion Performance: 16-bit ADC resolution, ±0.05% full-scale measurement accuracy
• Isolation Rating: 1500VAC channel-to-backplane isolation, built-in surge protection circuit
• Backplane Power: 18–32VDC rack supply, typical power consumption 3.3W, single-slot installation
• Safety Certification: IEC 61508 SIL3 safety grade, TMR triple modular redundant compatible
• Operating Environment: -20℃ ~ +60℃ working temperature, 5%–95% RH non-condensing, IP20 cabinet grade
• Diagnostics: Channel open-circuit & over-range detection, dedicated LED status lights for each channel
• Certifications: CE, UL, FS functional safety certification, industrial EMC compliance

Core Functions

• Collect real-time analog signals from pressure, temperature, flow and liquid level transmitters for safety interlock and process monitoring.
• Per-channel independent isolation prevents single-loop short-circuit or voltage surge faults from spreading to adjacent measurement channels.
• High-precision sigma-delta signal filtering suppresses electromagnetic noise from inverters and large rotating machinery.
• Seamless redundant backplane communication ensures uninterrupted data upload to AADvance TMR safety controllers.
• Hot-swappable single-slot modular design allows independent replacement without stopping the entire SIS safety rack.
• Comprehensive channel self-diagnosis automatically uploads wire break and signal out-of-limit alarms to system monitoring software.

Application Scenarios

• Safety analog input spare replacement for AADvance SIS racks in thermal power plant gas turbine and boiler emergency protection systems.
• SIL3 measurement spare parts for petrochemical refineries, natural gas pipelines and offshore FPSO fire & gas control cabinets.
• Maintenance backup inventory for chemical pharmaceutical factories, metallurgical furnaces and coal mine hazardous gas interlock control rooms.
• Matching I/O accessory paired with AADvance TMR controllers, termination base plates and 2-wire HART smart transmitters.
• Retrofit replacement components for aging safety control systems with signal drift, isolation failure and channel wire break detection faults.

• Global aftermarket spare stock for automation maintenance teams managing legacy Rockwell AADvance safety instrumented equipment worldwide.
