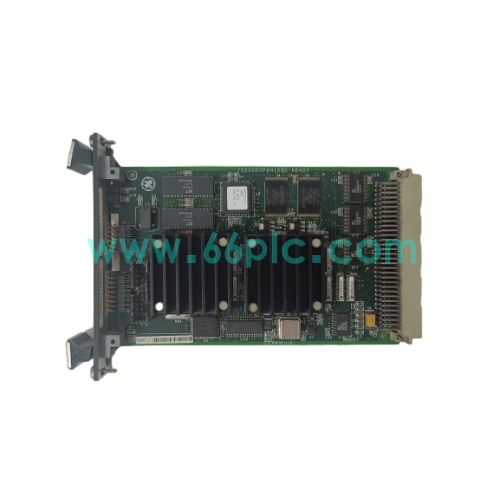

GE IS200DSPXH1DBD DSP Digital Signal Processor Board

GE IS200DSPXH1DBD is a high-performance DSP digital signal processor control board for GE Mark VI turbine control and EX2100 generator excitation system. It adopts a 60MHz DSP chip to run excitation closed-loop control algorithms, complete high-speed sampling of generator PT/CT signals and implement bridge rectifier gating control.

This board is equipped with Flash, DRAM and NVRAM memory to store control parameters and fault records. It communicates with other rack modules through VME backplane bus, with front panel LED indicators for status and fault alarms. It serves as critical spare parts for power plant turbine and excitation cabinet overhaul.

Main Specifications

1. Brand: GE; Model: IS200DSPXH1DBD; Type: DSP Digital Signal Processor Control Board
2. Compatible System: Mark VI Speedtronic Turbine Control & EX2100 Excitation System
3. Processor: 60MHz DSP; Memory: Flash + DRAM + NVRAM for data storage
4. Bus Interface: VME backplane bus; Indicators: LED status and fault indicators
5. Power Supply: 28VDC from rack backplane; Industrial grade circuit design
6. Operating Temp: -20℃ ~ +60℃; Humidity: 5%~95% non-condensing
7. Supply Status: Legacy spare DSP board for power plant excitation & turbine control

Core Functions

1. Execute high-speed AVR closed-loop control algorithms for generator excitation regulation.
2. High-speed sampling and digital filtering of generator voltage and current PT/CT signals.
3. Bridge rectifier gating control and inner-loop protection for EX2100 excitation cabinet.
4. Store control parameters, alarm logs and fault event data in onboard NVRAM.
5. Real-time data exchange with other VME rack modules via backplane communication.
6. Standard VME double-height slot design for direct replacement during site maintenance.

Application Scenarios

1. GE Mark VI gas turbine and steam turbine control cabinets in power generation plants.
2. EX2100 digital excitation control system for synchronous generator voltage regulation.
3. Replacement of damaged DSP processor boards in existing turbine and excitation racks.
4. Spare parts inventory for power plant electrical and automation maintenance teams.
5. Retrofit and upgrade of legacy GE Speedtronic Mark VI turbine control systems.
6. High-speed closed-loop control for combined-cycle power generation excitation units.

FAQ

1. Q: What is GE IS200DSPXH1DBD?
   A: It is DSP digital signal processor board for Mark VI turbine control and EX2100 excitation system, responsible for excitation control algorithm operation and signal processing.
2. Q: What is the difference between IS200DSPXH1DBD and IS200DSPXH1DBC?
   A: They are different hardware revisions of the same DSP board series, with minor component and firmware differences.
3. Q: Can this board work alone?
   A: No, it must work with other VME rack modules and I/O boards to form the complete EX2100 excitation control system.
