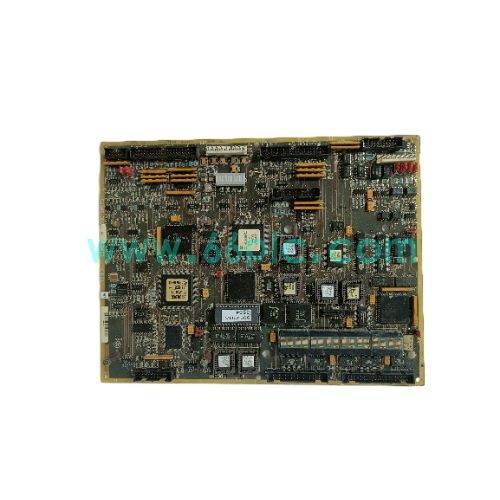

GE DS200LDCCH1AGA LAN & Drive Control Board Mark V Turbine Control

GE DS200LDCCH1AGA is a LAN and drive control processor board built for GE Mark V Speedtronic turbine control system. It integrates multiple microprocessors to handle drive control logic, motor regulation and LAN communication, serving as a key data bridge between the main controller, I/O boards and HMI in gas and steam turbine control cabinets.

This board supports HDLC communication protocol for reliable real-time data exchange within the Mark V rack. It provides self-diagnostic functions to monitor board status and communication faults. It is widely used as spare replacement parts for power plant turbine control system maintenance and retrofit projects.

Main Specifications

1. Brand: GE; Model: DS200LDCCH1AGA; Type: LAN & Drive Control Board
2. Compatible System: GE Mark V Speedtronic Turbine Control System
3. Processor: Multi-microprocessor architecture for drive control and LAN processing
4. Communication: HDLC protocol, internal rack LAN bus
5. Power Supply: 5VDC, ±15VDC supplied from rack backplane
6. Operating Temp: -20℃ ~ +60℃; Humidity: 5%~95% non-condensing
7. Supply Status: Legacy spare board for Mark V turbine control maintenance

Core Functions

1. Execute drive and motor control algorithms for turbine governor and auxiliary drive loops.
2. Manage internal LAN communication and HDLC data packets across the Mark V control rack.
3. Transmit real-time turbine operational data between main CPU, I/O modules and operator HMI.
4. Built-in hardware self-diagnosis to detect communication errors and board faults.
5. Process interlock and status signals for turbine protection and sequence control.
6. Standard rack slot form factor for quick replacement during system overhaul.

Application Scenarios

1. GE Mark V gas turbine and steam turbine control cabinets in power generation plants.
2. Drive control and internal LAN communication for turbine governor control loops.
3. Replacement of defective LAN & drive control boards for existing Mark V systems.
4. Spare parts inventory for power plant turbine automation maintenance teams.
5. Retrofit and upgrade of legacy Speedtronic Mark V distributed turbine control systems.
6. Continuous critical process control for combined-cycle power facilities.

FAQ

1. Q: What is GE DS200LDCCH1AGA?
   A: It is a multi-processor LAN and drive control board for GE Mark V Speedtronic turbine control system, handling motor drive logic and rack internal network communication.
2. Q: What protocol does it use for rack communication?
   A: It adopts HDLC protocol to ensure stable high-speed data transmission between modules inside the Mark V control rack.
3. Q: What is the difference between DS200LDCCH1AGA and DS200LDCCH1ANA?
   A: They are different hardware revisions of the same series; AGA is the earlier version while ANA is the updated revision with improved stability under high temperature cabinet conditions.
