GE 531X307LTBAJG1 Turbine Control Terminal Board

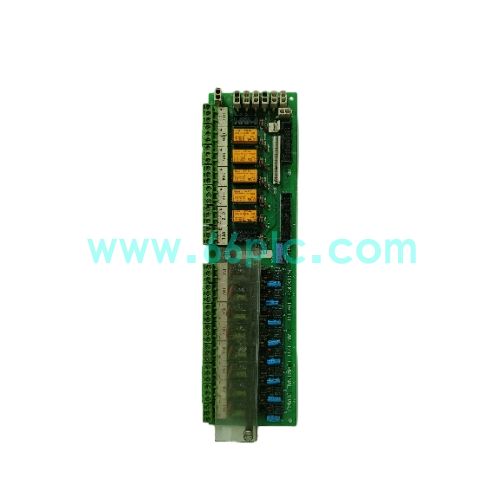

GE 531X307LTBAJG1 is a dedicated terminal board for GE Mark V turbine control system. It establishes the wiring interface between field sensors, actuators and the main control modules, undertaking signal distribution, signal conditioning and circuit protection for multiple turbine monitoring and control loops.

This printed circuit board is fitted with terminal blocks and signal conditioning circuits, adopting anti-interference design to adapt to harsh working environments inside power plant turbine cabinets. It is widely used as spare replacement parts for maintenance, overhaul and retrofit of GE Mark V gas and steam turbine control systems.

Main Specifications

1. Brand: GE; Model:531X307LTBAJG1; Type: Turbine Control Terminal Board
2. Compatible System: GE Mark V gas / steam turbine control system
3. Core Function: Field signal termination, signal conditioning, surge and short circuit protection
4. Connection: Screw terminal blocks and internal backplane connectors
5. Operating Temp: -10℃ ~ +60℃; Humidity:5%~95% non-condensing
6. Installation: Rack mounted inside turbine control cabinet
7. Supply Status: Legacy spare board for power plant turbine control maintenance

Core Functions

1. Provide terminal interface for field analog and discrete signals of turbine units.
2. Filter and condition raw field signals before transmitting to main controller modules.
3. Built-in surge protection components to suppress transient voltage interference.
4. Distribute control output signals from Mark V controller to on-site actuators.
5. Realize physical isolation between field wiring and core control board to reduce fault risk.
6. Standard rack layout, convenient inspection and replacement during turbine shutdown maintenance.

Application Scenarios

1. GE Mark V gas turbine and steam turbine control cabinet in power generation plants.
2. Signal wiring and conditioning for turbine speed, temperature and pressure monitoring loops.
3. Replacement of failed terminal boards for existing Mark V turbine control systems.
4. Spare parts inventory for power plant automation and turbine maintenance teams.
5. Retrofit and upgrade of old turbine control cabinets and signal wiring systems.
6. Emergency spare parts for unit fault recovery during power plant scheduled overhaul.

FAQ

1. Q: What is GE 531X307LTBAJG1 used for?
   A: It is a terminal board for GE Mark V turbine control system, used for field signal termination, conditioning and protection between field devices and controller modules.
2. Q: What system does this board fit?
   A: It is designed for GE Mark V gas and steam turbine control platform, widely used in power plant turbine control cabinets.
3. Q: What signals can this terminal board process?
   A: It handles both analog measurement signals and discrete digital on/off signals from turbine field sensors and actuators.
