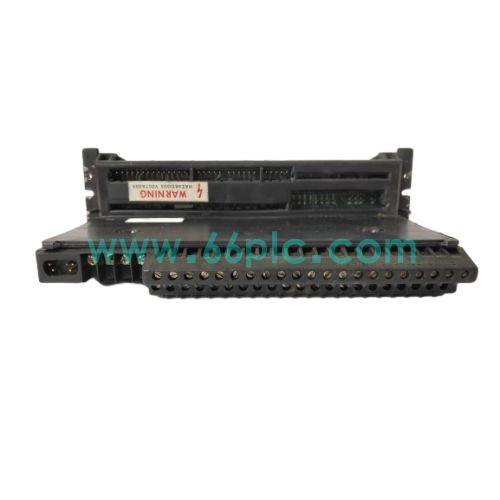

GE Fanuc IC660TBD025 Genius I/O 32 Circuit DC Sink Terminal Base

GE Fanuc IC660TBD025 is a 32-circuit DC sink terminal base for Genius distributed I/O system. It is used with matching electronic I/O blocks to connect 2-wire and 3-wire proximity sensors, solenoid valves and other discrete field devices, providing wiring terminals, Genius bus routing and signal filtering.

This terminal base supports 5V,12V,24VDC multi voltage selection, each circuit max 0.5A output current, with configurable input filter from 1ms to 100ms. It has front LED status indicators and built-in test port, widely used as spare parts for power plant, chemical and oil & gas Genius remote I/O control cabinets.

Main Specifications

1. Brand: GE Fanuc; Model: IC660TBD025; Type: 32 Circuit DC Sink Terminal Base Assembly
2. Compatible Block: IC660BBD025, IC660EBD025; Compatible System: GE Series 90 Genius I/O
3. Core Functions: Field wiring termination, Genius bus transmission, input signal filtering, circuit status indication
4. Field Voltage: 5/12/24VDC; 32 discrete sink I/O circuits; Per circuit current: max 0.5A
5. Operating Temperature: -25℃ ~ +70℃; Input filter: 1~100ms adjustable; DIN rail mounting
6. Feature: Front LED status lights, test port, 850V isolation, CE/UL/CSA hazardous area certification
7. Supply Status: Original GE Fanuc spare terminal base for Genius I/O cabinet maintenance

Core Functions

1. Provide wiring terminals for 32-channel sink-type digital I/O, connect proximity switches and solenoid actuators.
2. Route Genius field bus between adjacent terminal bases to build distributed remote I/O control network.
3. Adjustable input filter suppresses field contact bounce and high-frequency interference to improve signal stability.
4. Front panel LED indicators show power, bus communication and each channel I/O status for quick on-site inspection.
5. Built-in test port supports handheld monitoring device connection for real-time circuit diagnosis without disassembly.
6. Support hot swap of the upper electronic I/O block, reduce production downtime during module replacement.

Application Scenarios

1. Field wiring interface unit for Genius remote discrete I/O system in thermal power plants, refineries and chemical plants.
2. Fault terminal base replacement and routine maintenance of existing GE Fanuc Genius I/O control racks.
3. Distributed PLC automation renovation and upgrade for pipeline, water treatment and manufacturing production lines.
4. Emergency replacement for terminal base failure to restore discrete sensor signal collection and valve control output.
5. Spare parts stocking for maintenance teams operating GE Series 90 and Genius I/O control platforms.
6. Aftermarket spare supply for control cabinet overhaul and industrial sink-type digital remote control transformation projects.

FAQ

1. Q: Can IC660TBD025 be used with source type I/O electronic blocks?
   A: It is sink configuration terminal base, only compatible with matching sink electronic blocks, not for source modules.
2. Q: What are typical terminal base failure symptoms?
   A: Genius bus communication lost, channel no response, LED status abnormal, poor wiring terminal contact.
3. Q: How to complete commissioning and diagnosis?
   A: Check field DC power and bus wiring, use test port to verify channel status, adjust input filter parameter and confirm bus communication.
