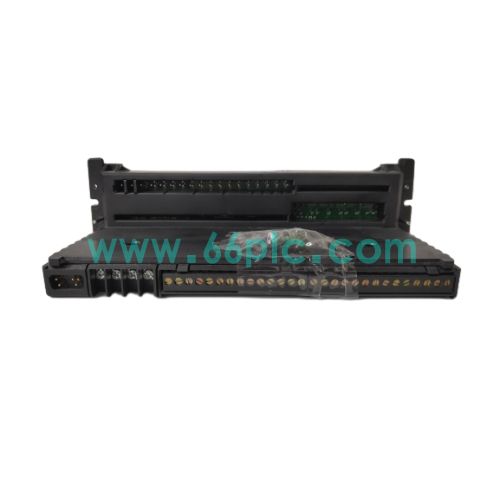

GE Fanuc IC660TBA026M Genius I/O 6 Channel 4-20mA Analog Output Block

GE Fanuc IC660TBA026M is a Genius I/O analog output block for GE Series 90 PLC system, equipped with 6 independent 4-20mA current source output channels. It receives digital control commands from Genius bus and converts into standard analog current signals to control valves, actuators and other field analog instruments.

This module has 0.15% high precision at 25℃, supports hold-last-state function when power supply fluctuates, and comes with channel overrange / underrange diagnostic. It adopts Genius dual bus communication, widely used as spare parts for power plant, chemical and oil & gas distributed control and PLC cabinet maintenance.

Main Specifications

1. Brand: GE Fanuc; Model: IC660TBA026M; Type: Genius I/O Analog Output Block
2. Compatible System: GE Series 90 PLC, Genius I/O field bus system
3. Core Functions: Digital to analog conversion, 4-20mA control output, channel diagnostic, hold-last-state
4. Channels: 6 analog output channels; Signal range: 4~20mA current source; Accuracy: 0.15% @25℃
5. Power: 115VAC /125VDC; Power dissipation:12W; Operating Temp:0℃ ~ +60℃
6. Feature: Genius dual redundant bus, over/under range alarm, integrated terminal block
7. Supply Status: Original GE Fanuc spare analog output block for PLC cabinet maintenance

Core Functions

1. Receive control setpoint data from PLC CPU via Genius field bus, convert digital value into stable 4-20mA analog output.
2. 6 independent current source channels to drive control valves, positioners and other analog field actuators separately.
3. Hold-last-state function retains the last output value during power disturbance to avoid sudden equipment misoperation.
4. Built-in channel diagnostics to detect overrange, underrange and loop fault, upload fault information to PLC host.
5. Support Genius redundant bus communication, improving the reliability of distributed remote I/O control network.
6. Integrated terminal block design simplifies field wiring and reduces loose connection risk in industrial cabinet.

Application Scenarios

1. Analog control output unit for remote Genius I/O system in power, chemical, oil and gas process plants.
2. Fault block replacement and routine maintenance of existing GE Fanuc Genius I/O PLC control racks.
3. Distributed PLC automation renovation and upgrade for pipeline, water treatment and manufacturing process lines.
4. Emergency replacement for analog output block failure to restore 4-20mA control signal for field valves and actuators.
5. Spare parts stocking for maintenance teams operating GE Series 90 and Genius I/O control systems.
6. Aftermarket spare supply for PLC cabinet overhaul and industrial remote analog control transformation projects.

FAQ

1. Q: Can IC660TBA026M be used as analog input module?
   A: It is analog output block, only for 4-20mA control signal output, cannot collect analog input signals.
2. Q: What are typical module failure symptoms?
   A: No 4-20mA output, channel value drift, Genius bus communication drop, loop fault alarm.
3. Q: How to complete commissioning and diagnosis?
   A: Check power and field instrument wiring, download configuration via GE programming software, test each channel output and fault diagnosis.
