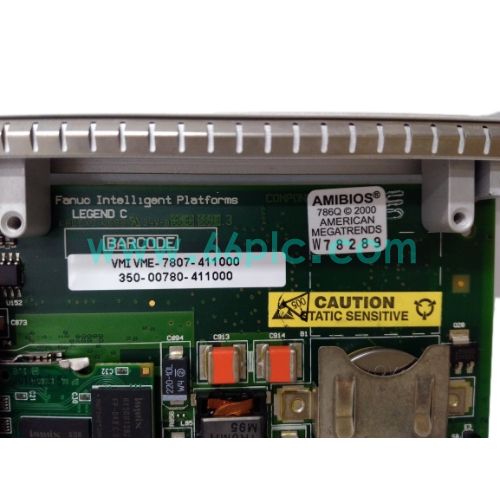

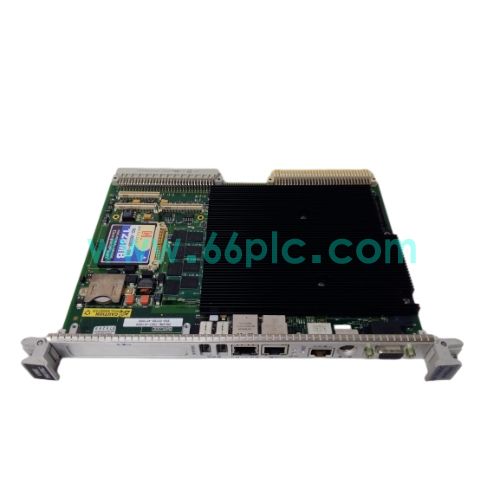

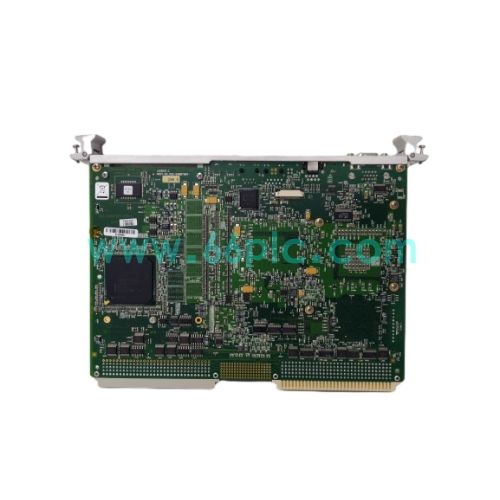

GE VMIVME‑7807‑411000 VME64x Single Board Computer

The GE VMIVME‑7807‑411000 is a rugged 6U single‑slot VME64x single‑board computer built around Intel Pentium‑M processor for real‑time embedded computing. It delivers high‑performance processing, abundant onboard I/O and PMC expansion capability, executing complex control algorithms, data acquisition and signal processing for industrial automation and mission‑critical VME‑bus systems.

This passively‑cooled SBC works as either VME system controller or peripheral board, supporting multiple operating systems including VxWorks, Linux and Windows. It integrates watchdog timer and battery‑backed memory for reliable long‑term operation. Original production has been discontinued. It is widely supplied as aftermarket spare parts for legacy VME‑bus automation hardware maintenance and system retrofit projects.

Main Specifications

1. Brand:GE; Model:VMIVME‑7807‑411000; Type:6U VME64x Single Board Computer
2. Processor:Intel Pentium‑M CPU with up to 2MB L2 cache, scalable DDR‑SDRAM memory support
3. Bus Interface:Full VME64x master/slave, supports 2eVME / 2eSST high‑speed transfer protocols
4. On‑board I/O:Dual Ethernet, 4‑channel configurable serial ports, 4×USB2.0, VGA display output, CompactFlash storage
5. Expansion:One 66‑MHz 64‑bit PCI‑X PMC expansion slot for custom functional modules
6. Feature:Programmable hardware watchdog timer, battery‑backed non‑volatile SRAM, passive cooling design
7. Supply Status:Original production discontinued, available as tested surplus or refurbished spare parts

Core Functions

1. Run real‑time operating systems and execute complex computing tasks for VME‑bus based industrial control and data acquisition systems.
2. Operate as VME‑bus system controller to manage bus arbitration, resource allocation and inter‑board data communication inside VME chassis.
3. Provide rich onboard communication interfaces for network data transmission, serial device connection and local peripheral equipment access.
4. Support PMC module expansion to add customized functions such as additional analog‑digital acquisition or special communication interfaces.
5. Hardware watchdog timer detects system lock‑up and triggers automatic reset to improve system stability for unattended industrial operation.
6. Serve as central computing hardware for GE legacy VME‑bus automation and measurement‑control rack systems.

Application Scenarios

1. Industrial process control, automatic test equipment, data acquisition systems and other VME‑bus embedded real‑time computing sites.
2. Spare single‑board computer replacement and routine maintenance of existing GE VMIVME‑series VME‑bus control racks.
3. Technical renovation and computing‑performance upgrade of aging VME‑based automation control systems.
4. On‑site troubleshooting and replacement of faulty SBC units on continuously‑running critical industrial equipment.
5. Spare‑parts stocking for system integrators and maintenance contractors supporting legacy VME‑bus hardware platforms.
6. Global aftermarket spare supply for technical teams maintaining GE VMIVME series VME‑bus automation hardware.

FAQ

1. Q:Can VMIVME‑7807‑411000 run without complete VME chassis?
   A:It is a VME‑bus single‑board computer, must be installed inside compatible 6U VME chassis and cannot work standalone.
2. Q:What operating systems are supported by this board?
   A:It supports VxWorks, Linux, Windows and other mainstream embedded and industrial operating systems.

3. Q:What will happen if this SBC fails?
   A:Main system computing service interruption, VME‑bus management failure and loss of connected peripheral module control may occur.
